26 QuadraVista Installation and Operations Manual
MODE
Mode / PiP-Start

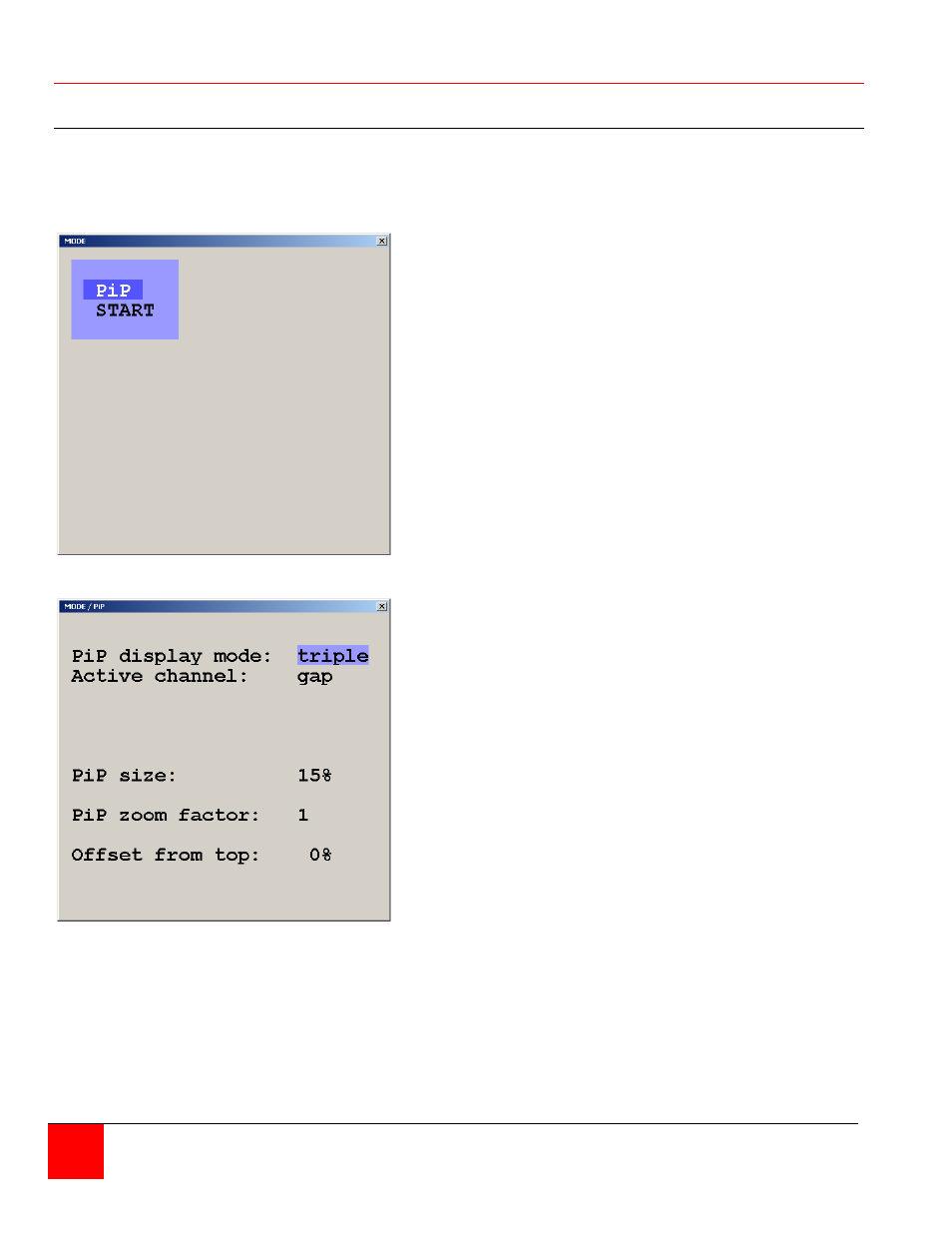

Selecting “MODE” and pressing enter displays the mode screen. Two mode selections are available, PiP
and Start. The PiP features and configuration can be set-up, and the channel and mode setting on start-
up.
The PiP menu allows you to change from
triple to single PiP. Triple display shows
the three non-active windows on the right
of the screen. Single display shows only
one non-active window. PiP size, zoom,
and offset from the top of the screen can
be set.
PiP display modes:
Triple – Displays the three non-active
channels
Single – Displays one non-active channel
Fixed – Permanently displays one non-
active channel
Scan – Scans non-active channels in
one PiP window (scan time 1-9
sec)
Direct – Permanently displays one non-
active channel. Select the
desired channel to display
directly.
