8-10kVA single phase version
1. Use 3 cables with 10 mm 2 section (EARTH, N and
L) in input, and 3 cables with 10 mm
2
section for the

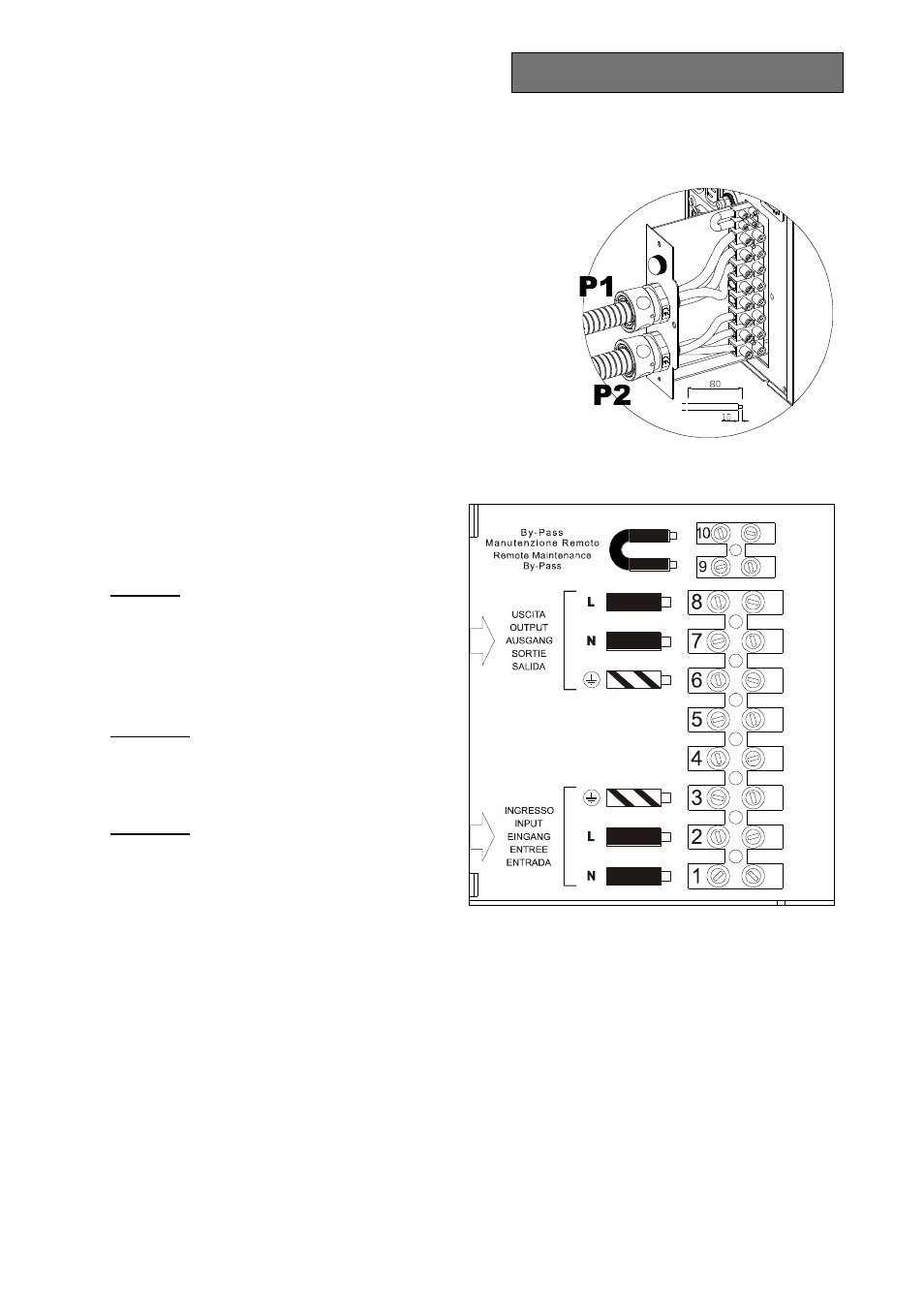

output (EARTH, N and L). With reference to the
figure shown at the side:
- Insert the cables from the 63A magneto-thermal
switch into seal stop P2 (input line).
- Insert the cables from the load into seal stop P1
(output line).
- Strip the cables observing the measurements
provided.
- Insert the part that has just been stripped into the
ferrules provided.
2. Connect the wires to the relative terminals
strictly following the instructions set out
below:
Input line
a - Ensure that the magneto-thermal switch
upstream is open.
b - Connect the earth wire to terminal 3.
c - Connect the neutral wire to terminal 1.
d - Connect the phase wire to terminal 2.
Output line
a - Connect the earth wire to terminal 6.
b - Connect the neutral wire to terminal 7.
c - Connect the phase wire to terminal 8.
Bypass line
a - Ensure that a jumper is connected at
terminals 9 and 10; this is needed for the
correct operation of the UPS.
3. Secure the cable guides to the flange, close the drawer and secure it with the screw removed previously.
