MTP U R Series • Introduction
JMP1
JMP3
JMP2
Default settings as
viewed from rear
N
The transmitter and receiver are designed for and
perform best with Extron Enhanced Skew-Free A/V cable
terminated in accordance with the TIA/EIA T 568 A
wiring standard. CAT 5 cables are acceptable but less
preferable. We also recommend the use of pre-terminated
and tested cables. Cables terminated on site should
be tested before use to ensure that they comply with
Category 5/5e/6/7 specifications.
The recommendations shown in the table apply for a
single transmitter and receiver. For example, the
maximum suggested range for 1024 x 768 video is 300’
(90 m) with Pre-Peak off and 600’ (150 m) with it on.
Receiver Jumpers
The MTP U R receivers have three jumpers on the main board.
Jumper 1 (JMP1) controls RS-232 directional communication,
and Jumpers 2 (JMP2) and 3 (JMP3) control vertical and
horizontal sync respectively.
By default, JMP1 is closed on all models and
configured to send serial data both ways
(bidirectional), transmitter-to-receiver and
receiver-to-transmitter. Jumpers 2 and 3 are
open (negative sync) by default.
Setting JMP1 for RS-232 communication
JMP1 can be repositioned to enable unidirectional (one-way,
pass through) communication as follows:
1
. If applicable, disconnect all cables, remove the receiver
from its installation location, and remove any mounting
brackets installed.
2 . Remove the two screws from either side of the receiver
(four screws total) and lift the top cover off of the receiver.
3 . Locate jumper JMP1 on the main board. Remove and
reposition it over one pin (see figure 3).
Reposition the jumper
block to cover one pin.

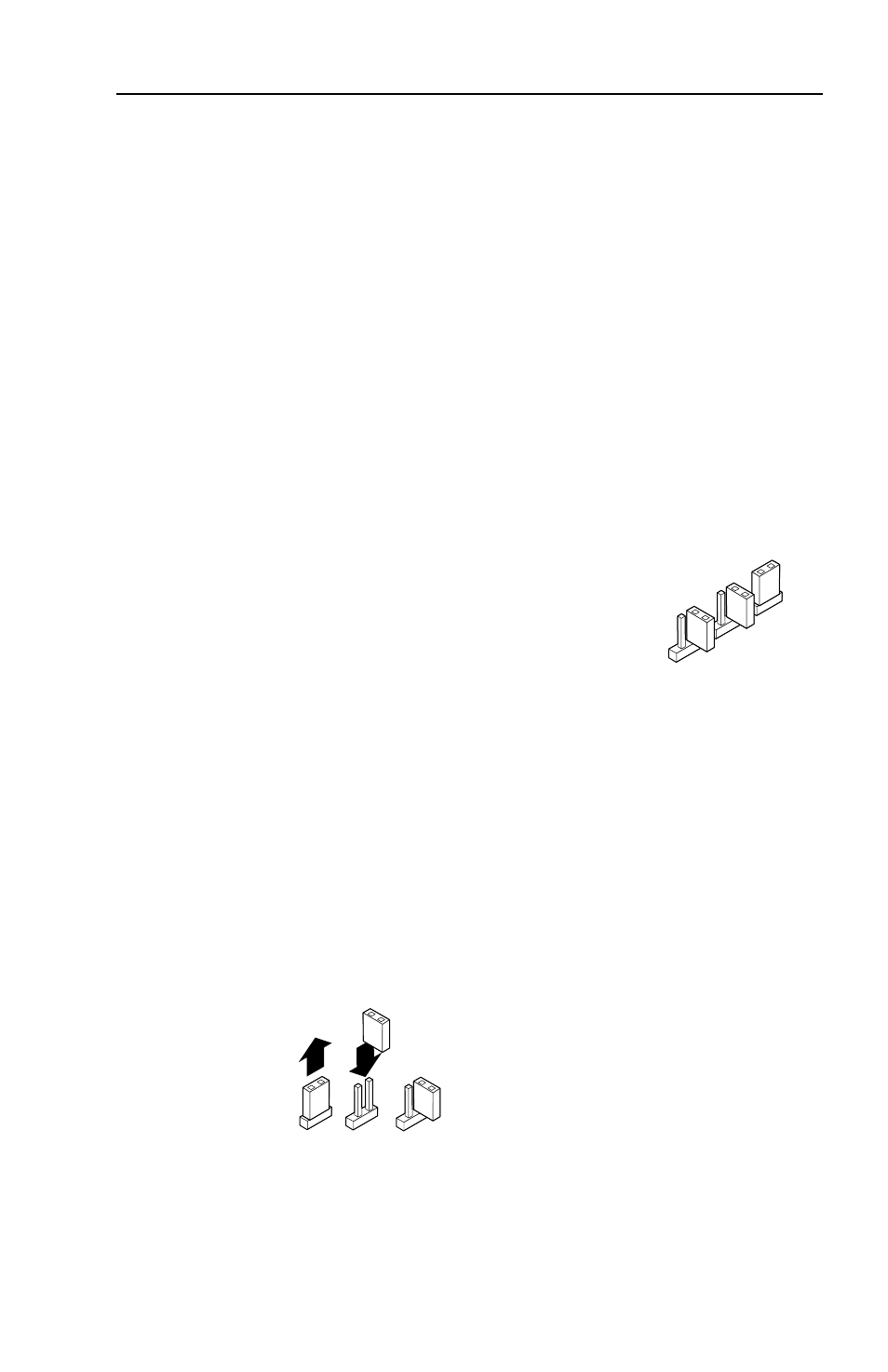

Figure 3 — Setting jumper 1 to unidirectional
4 . If JMP2 and JMP3 also need setting, go to page 6, “Setting
JMP2 and JMP3 to positive vertical and/or horizontal sync
polarity” section. Otherwise, replace the top cover.
5
