MTP U R Series • Installation 13
a Power connector — Plug the included external 12 VDC power
supply into this 2-pole captive screw connector. See “Power
supply wiring” to wire the connector.
b Input 1 connector — Connect one end of the cable from the
transmitter.
See “TP cable termination” to wire the RJ-45 connectors.
C Do not connect these devices to a computer data or
telecommunications network.
N

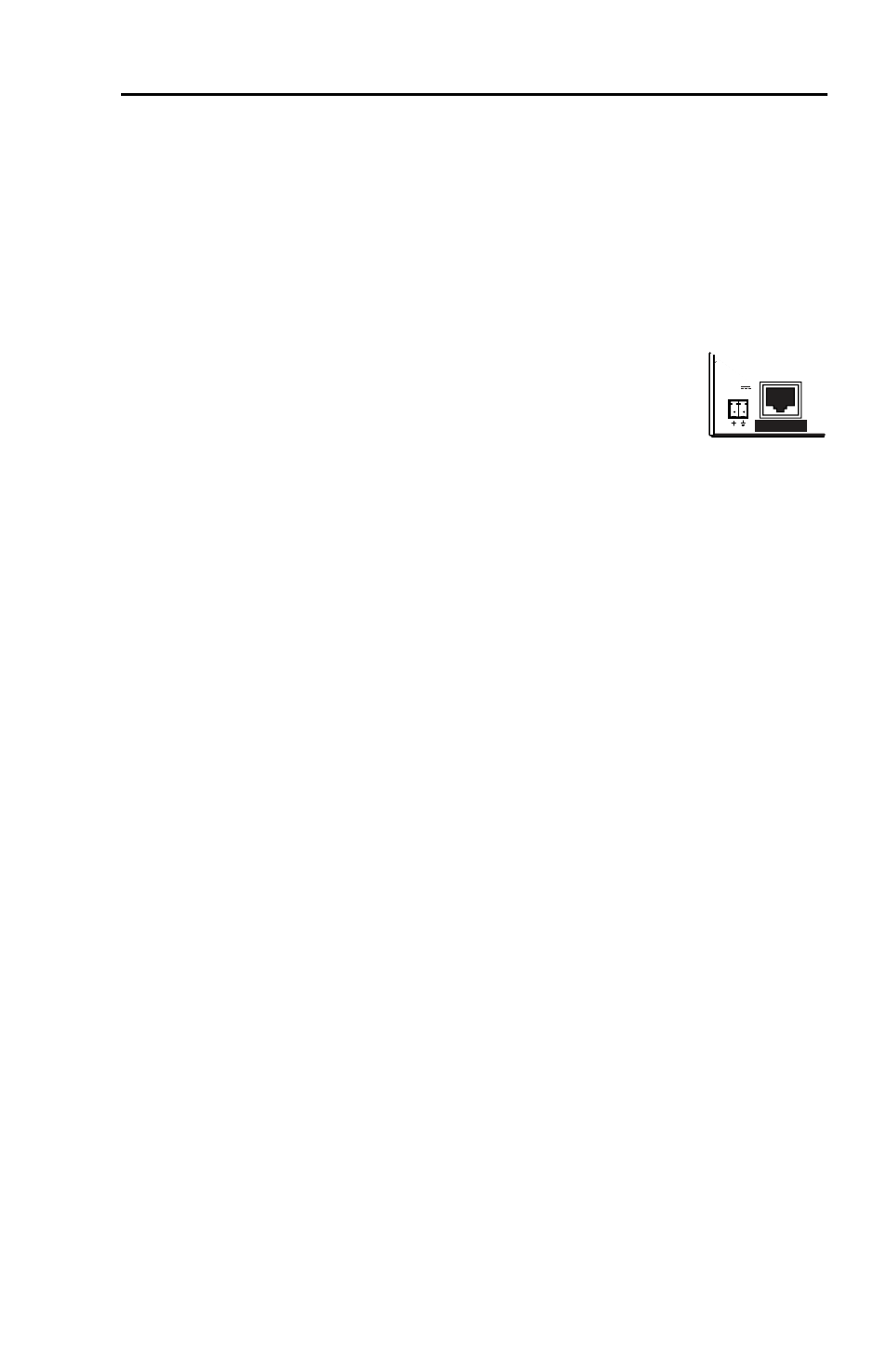

If the RJ-45 connector is labelled “CAT 7
Input” (MTP C7 U R RSA SEQ model),
only a CAT 7 cable should be connected.
c Component video output connectors (MTP U R RSA SEQ
model only) — Connect a suitable device to these three female
BNC connectors for component (Y, R-Y, and B-Y) video output.
N
For MTP U R RS SEQ, MTP U R RS, and
MPT U R A models, component video is output on the
15-HD VGA connector.
Video output can be bi- or tri-level sync.
d High resolution video output connector — Connect a projector
or other high resolution video device to this 15-pin HD
connector for RGB output.
The pin-out for the 15-pin HD connector is as in the Note below
N
Input only sync signals, no video signals, on the sync
pins (13 and 14).
For component video, use the R (R-Y) and R return pins
(pins 1 and 6), G (Y) and G return pins (pins 2 and 7),
and B (B-Y) and B return pins (pins 3 and 8).
The MTP U R receiver’s horizontal and vertical sync
output is negative by default. To change the polarity,
reset the jumper position on JMP 2 and JMP 3.
POWER
12V
0.5A MAX
CAT 7 INPUT
