MTP U R Series • Installation
• RSU 129, 9.5" deep Universal 1U rack shelf kit
(part #60-190-01)
• RSB 129, 9.5” deep Basic 1U rack shelf (part #60-604-01)
On the standard rack shelf, the MTP U R mounts in one of four
locations to the rear of the rack or in one of four locations to the
front of the rack.
(2) 4-40 x 3/16" Screws
Use 2 mounting holes on
opposite corners.
VersaTools Basic
Rack Shelf
Quarter Rack Width False
Faceplate
MTP T V
GA RS
MTP T V GA R S
MTP T V GA R S

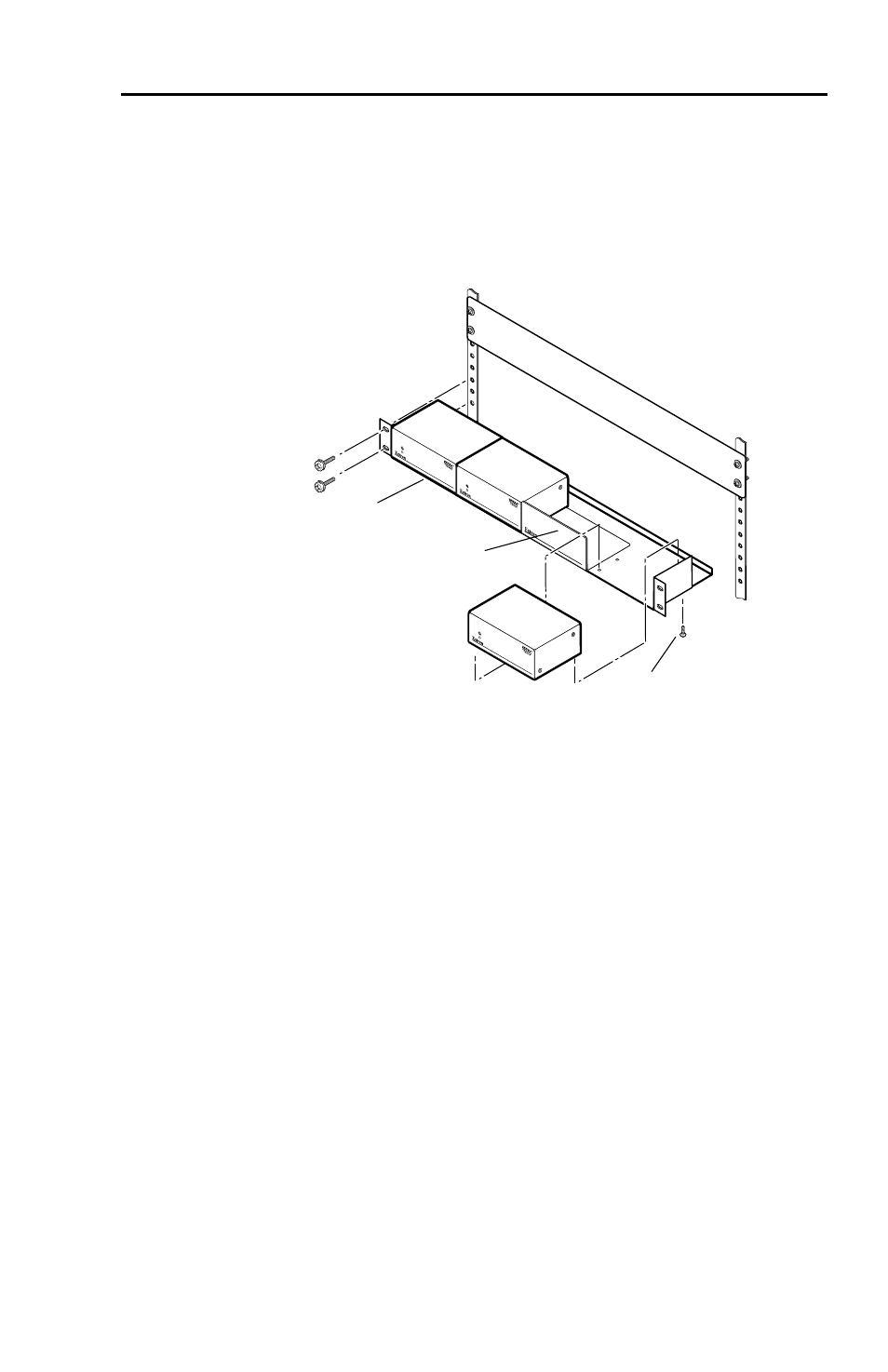

Figure 8 — Mounting the MTP on a VersaTools shelf
1 . Remove the feet from the bottom of the MTP, if they are
installed.
2 . Mount the MTP using two 4-40 x 3/16" screws in opposite
(diagonal) corners to secure the MTP to the shelf.
N
Fxtron recommends where more than one shelf is
required, rack mount shelves are installed at least 1U
apart, to allow for air flow and proper cooling between
the shelves.
3 . Install false faceplate(s) or other unit(s) to the rack shelf.
4. Mount the shelf into the rack.
Back of the rack mounting
The MTP can be mounted to the rear of a rack using the Extron
MBB 100, VersaTools ® back of the rack mounting kit
(part #70-367-01). The kit allows the product to be vertically
mounted to the front or rear rack supports and facing either
towards the front or the rear of the rack.
9
