SLIM-BASIC COMFORT AIR KIT Chapter 3
USE AND MAINTENANCE MANUAL page
9
Basic comfort air kit Technical dept. - All rights reserved by MCZ Group S.p.A. - Reproduction prohibited
2.2. INSTALLING THE COMFORT AIR SLIM KIT AND
HOT AIR OUTLETS
2.2.1. INSTALLING THE FAN KIT

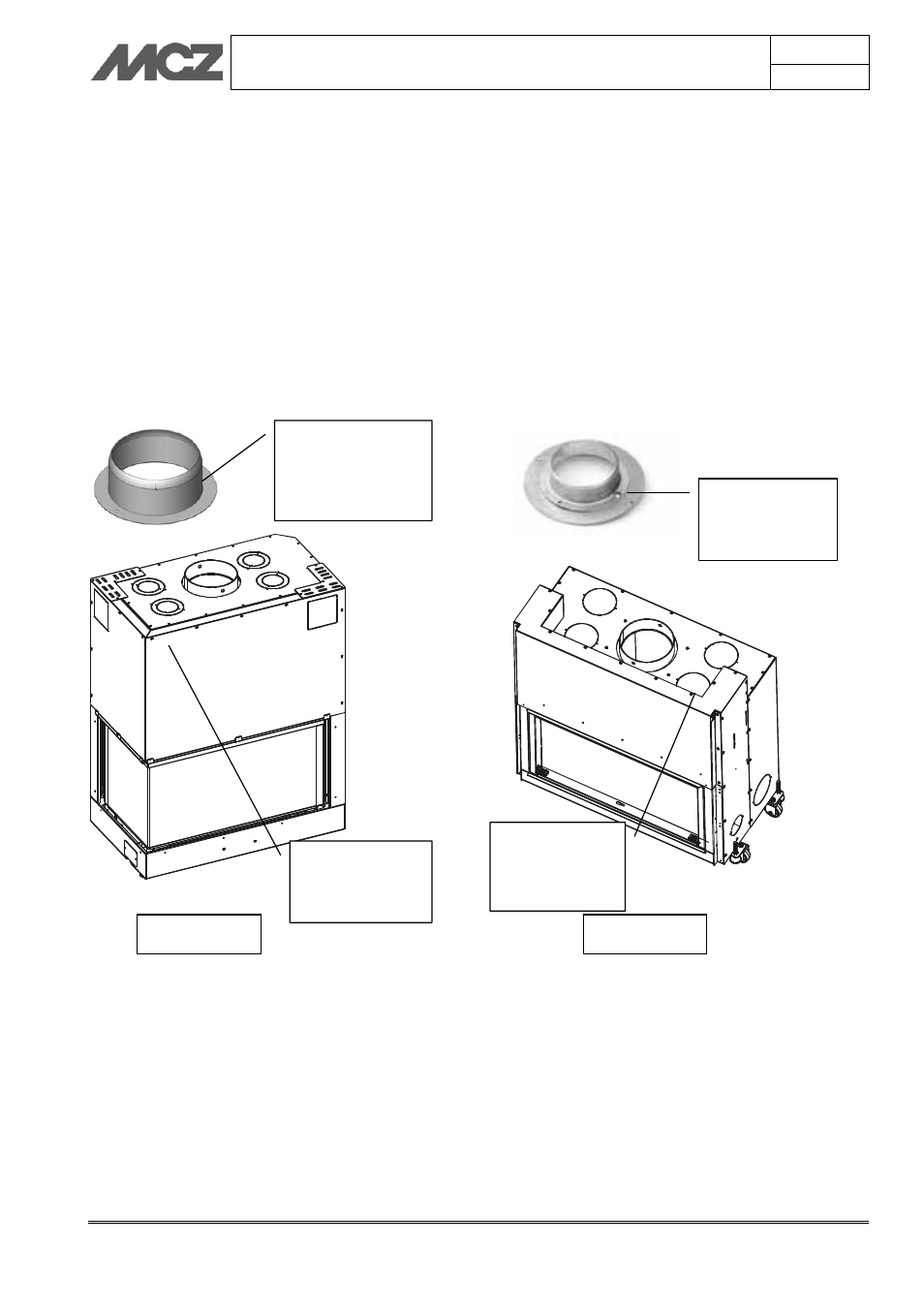

Forced ventilation envisages a Ø 100 pipe so, where envisaged, remove
the corresponding pre-perforated panel (Fig.A) and use the flange “4”
supplied with the kit whereas, for the closed fireplaces designed with
the Ø 150 outlet (Fig.B) alone, you will need to purchase accessory
code 4008047 (flange). Then connect the pipe “3” to the closed
fireplace and to the fan kit.
INTERNAL PRE-
PERFORATED
PANEL Ø 100
FLANGE SUPPLIED
“4” WITH THE FAN
KIT
FLANGE
ACCESSORY
CODE 4008047
FIGURE A FIGURE B
PRE-
PERFORATED
PANEL Ш 150
