Technical Specifications

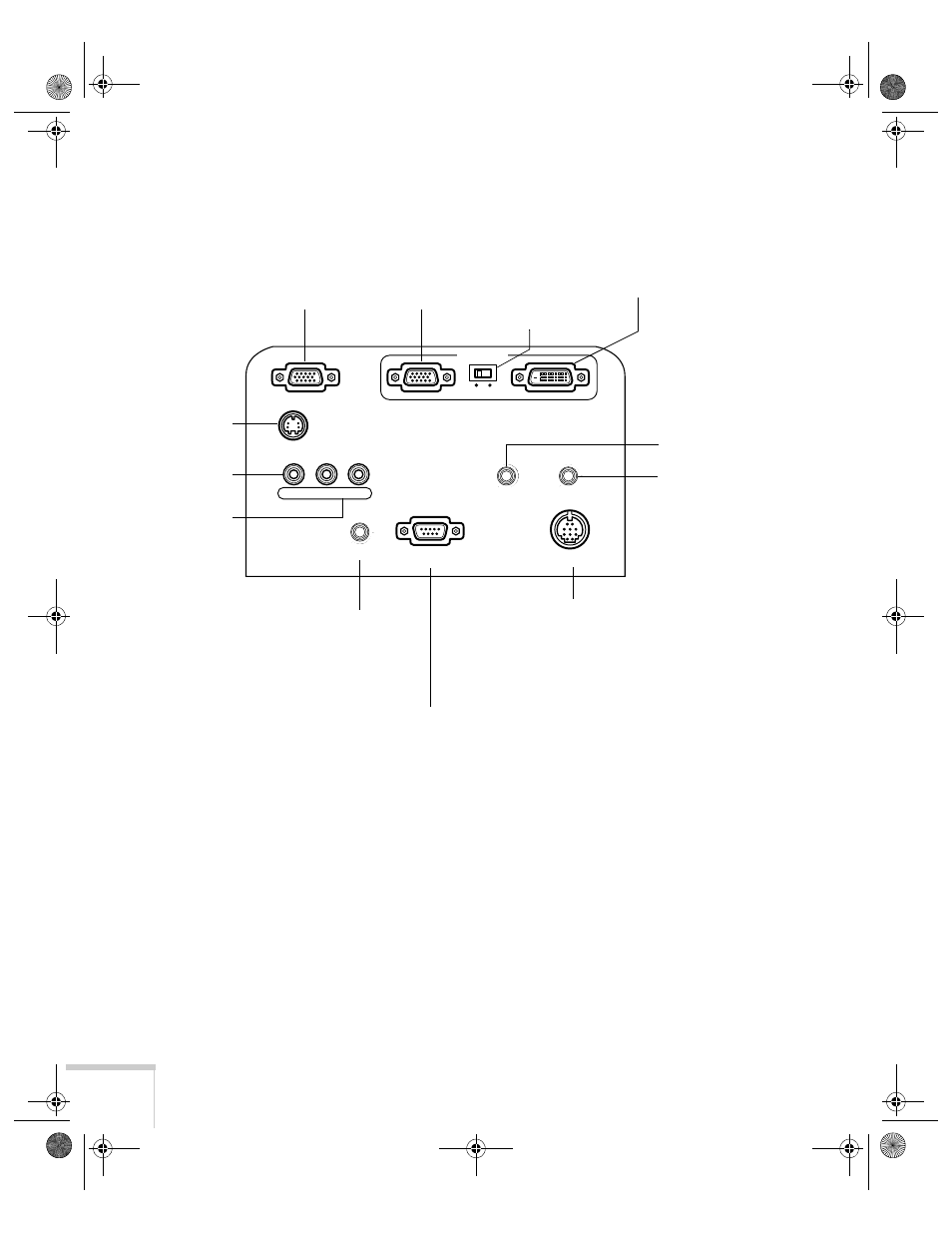

Interface Connectors

Computer 2 /

Component Video

Computer 1

Analog Digital

Audio 1

Audio Out

Control (RS-232C)

Mouse

S-Video

L-Audio2-R

Video

Remote

DVI connector

VGA (video in)

connector

VGA / DVI

switch

optional remote

receiver connector

S-Video

connector

serial connector for computer

running EMP Link V software

Computer 2/

Component Video

connector

composite (RCA)

video connector

Audio out connector

audio connectors

for video sources

and Computer 2

Mouse connector

(for Computer 1)

Audio 1 connector
