6.1 Battery Replacement
6.1.1 Turn the bore scope over and lift up the ring screw (fig.2A) turn the ring anti-clockwise until fully unscrewed and pull to lift open the
battery door (fig.2B).
6.1.2 Remove exhausted batteries and Insert new AA batteries, ensuring correct polarity (fig.2C).
6.1.3 Close the battery door, screw in the ring screw clockwise until tight and push down out the way (fig.2D).
6.2 Cleaning and Storage
6.2.1 Wipe the probe tip, shaft and housing with a clean, soft cloth to remove residue and moisture.
6.2.2 Wash the probe tip and shaft with a cleaning liquid and rinse with water, then dry.
6.2.3 Clean the probe lens gently with a lens cleaner (such as isopropyl alcohol) and a cotton bud.

DO NOT submerge the bore scope in water - the bore scope monitor is not water resistant.
NOTE: The bore scope MUST be completely dry prior to returning it to the storage case.
6. MAINTENANCE
Parts support is available for this product. To obtain a parts listing and/or diagram, please log on to
www.sealey.co.uk, email [email protected] or phone 01284 757500.
 DO NOT use excessive force to insert or retrieve probe from the equipment or areas
under inspection.
 DO NOT use the probe to push against objects or to clear a path.
This instrument is for remote viewing only.
 DO NOT bend any part of the shaft tighter than a 130mm diameter.
 DO NOT insert the probe and tip into locations where the temperature is greater than
55°C.

DO NOT vibrate, bang, or drop your bore scope. It is not shock resistant.
5.1. Turning On/Off
5.1.1. Hold the unit by the housing and press and hold down the On/Off switch (fig.4).
The indicator light (fig.1) will illuminate to show the bore scope is ‘on’.
5.2. Light Adjustment
5.2.1. The light on the end of the probe can be adjusted. Push the Increase/Decrease buttons
(fig.5) to change the brightness, ranging from 0 - 15.
5.3. Zoom Function
5.3.1. Push the ‘Zoom’ button (fig.6) to increase the picture on screen x 1.5. Push again to
return to default viewing.
5.4. Rotation Function
5.4.1. Push and hold the rotate button (fig.6) for 3 seconds, the image on screen will rotate
horizontally and an ‘M’ will appear in the top left of the screen. Push and hold the button
again to return to the default screen.
5.5. Video Out Port
5.5.1. The bore scope provides an external video signal via an RCA phono jack (fig.4).
This signal can be utilized by a compatible monitor or recording device. (AV Lead
Included).
 WARNING! The handheld monitor unit is not water resistant. The shaft and tip are
water resistant.
5. OPERATION
Environmental Protection.
Recycle unwanted materials instead of disposing of them as waste.
All tools, accessories and packaging should be sorted, taken to a recycle centre and disposed of in a manner which is compatible
with the environment.
When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid waste
authority for recycling information.
Battery Removal.
• Refer to Section 6.1 for battery removal.
Dispose of batteries according to local authority guidelines.
Under the Waste Batteries and Accumulators Regulations 2009, Jack Sealey Ltd are required to inform potential purchasers of products
containing batteries (as defined within these regulations), that they are registered with Valpak’s registered compliance scheme.
Jack Sealey Ltd’s Batteries Producer Registration Number (BPRN) is BPRN00705

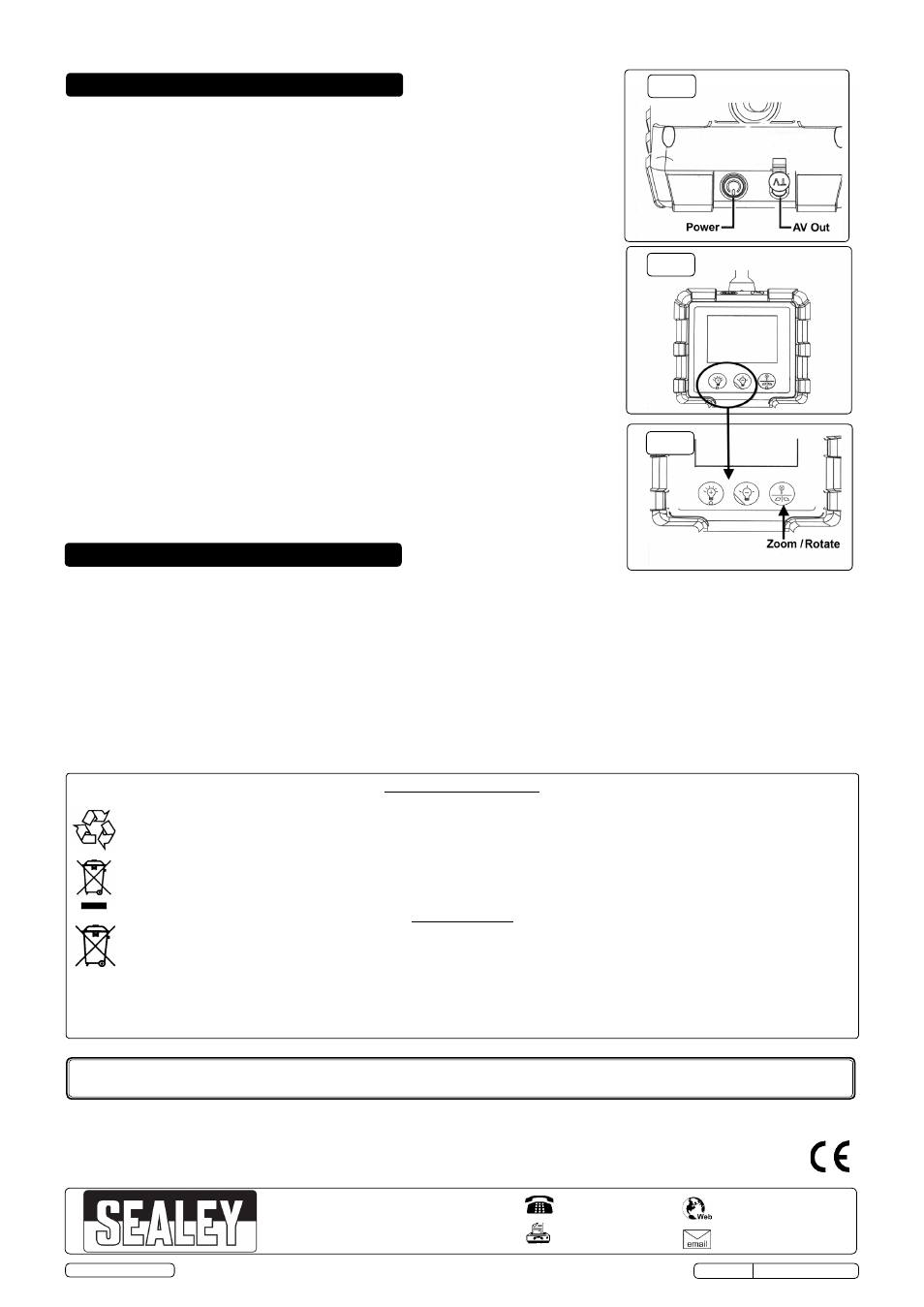

fig.4
fig.5
fig.6
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
INFORMATION: For a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode.
