5. MAINTENANCE
5.1. Keep the extractor clean and repair or replace any damaged
parts.
5.2. clean the ducting outlet filter once a week. refer to fig.3.
squeeze and remove the spring clip (6). remove the outer filter
plate (5) and the two layers of filter material (3 & 4). Wash the
filter material in ordinary detergent and let it dry. Place the inner
grille (2) back into the filter housing (1) followed by the two filters
(3 & 4). Place the outer filter plate (5) over the filters and retain
all parts by squeezing and re-inserting the spring clip (6).
4. OPERATION
4.1. Before starting, consideration should be given to the positioning of the vehicle in relation to the external
venting required for the ducting.
4.2. the unit is normally stored in the vertical position with the 3metre length of flexible ducting inside the
aluminium tube.
4.3. Wheel the unit close to the vehicle.
4.4. to prepare the unit for use loosen the tube clamp butterfly nut and the two height adjusting knobs and
swing the unit into the horizontal position. Keep hold of the filter on the back end of the tube to stop it
falling out. slide the aluminium tube within its clamping bracket until it is in balance and then tighten the
plastic butterfly nut.
4.5. to adjust the height of the tube in relation to the exhaust, hold the aluminium tube either side of the clamps
and slide it out of the slot it is in and up or down to the required height. Move the clamps into the nearest
convenient slots and tighten them.
4.6. Extend the flexible ducting and place the filter in a position where the exhaust fumes can be vented outdoors.
4.7. the unit should be positioned so that the exhaust pipe is within the cone but not touching it.
4.8. connect the workshop air supply to the ball valve at the base of the cone using the hook up recommended
in section 3. Alternatively an adequately specifed portable air compressor can be used. see specification
in section 2.
4.9. turn the air supply on and open the ball valve on the unit.
4.10. start the vehicles engine and check that the exhaust fumes are being properly extracted. If adjustments
are required to the postioning of the unit, turn the engine off first.
NOTE: for cars with twin exhausts, an accessory is available. order Model no: Efs07DE (fig.2).

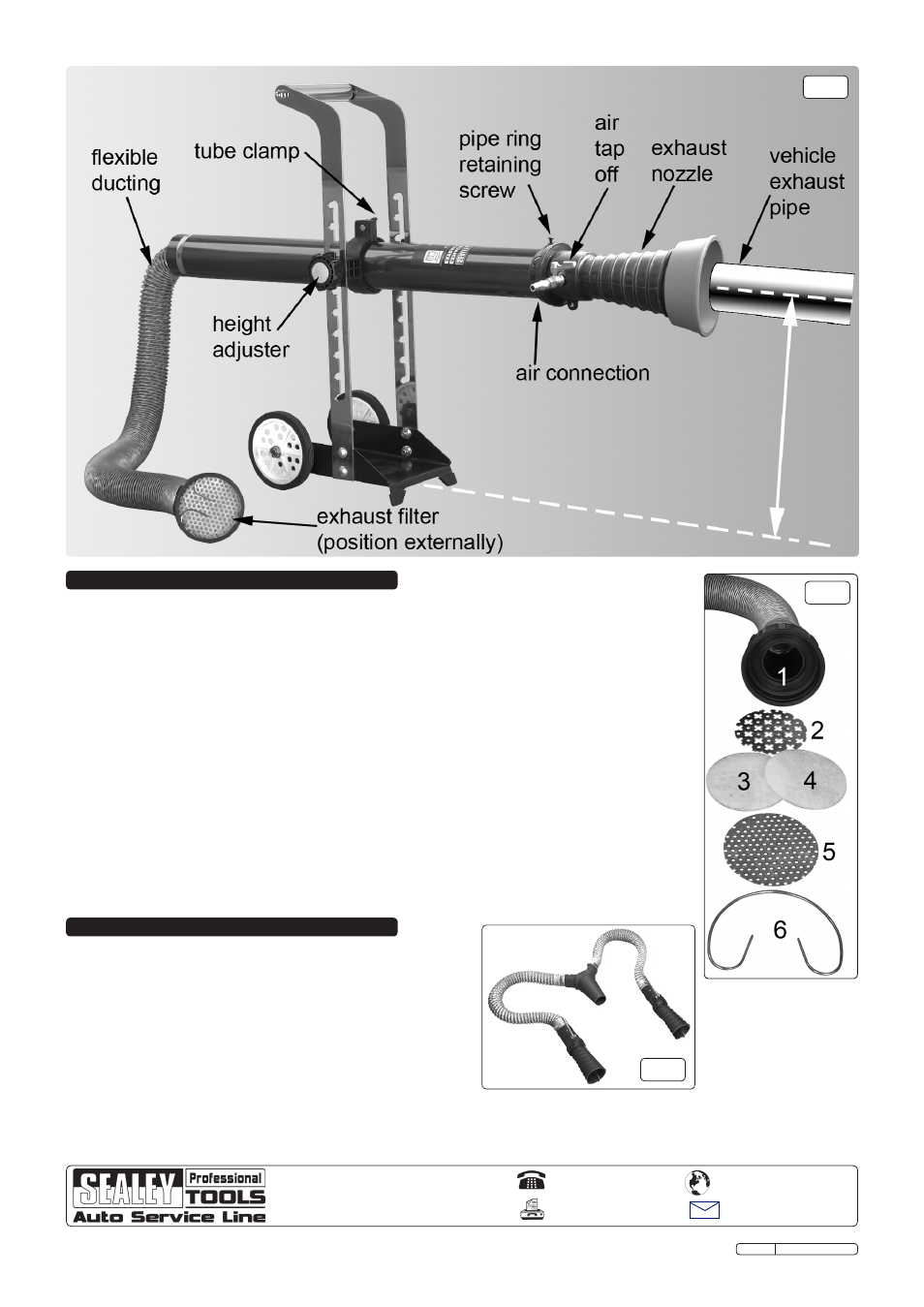

fig.1
fig.2
fig.3
