Introduction
10
Printer Parts

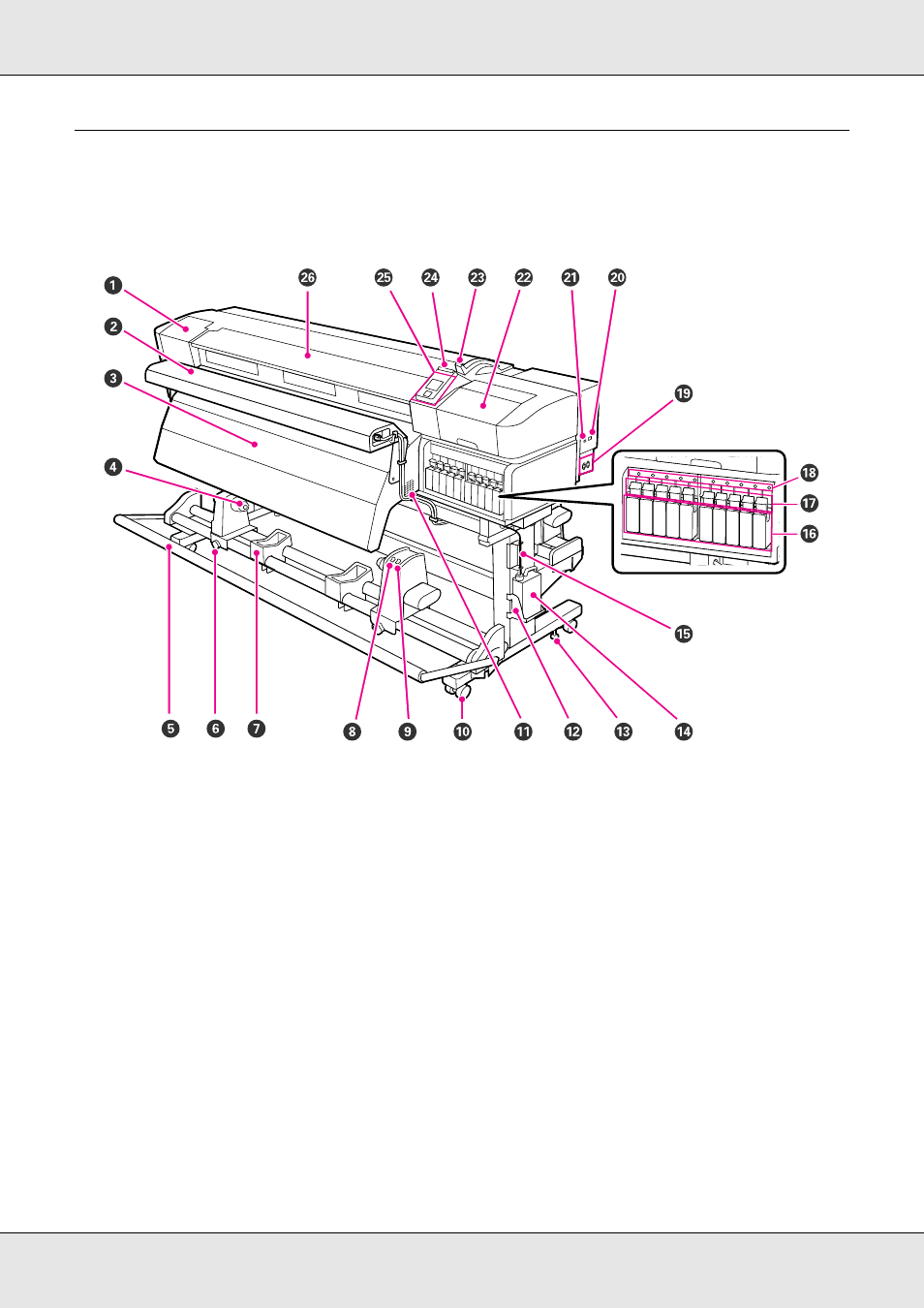

Front section - S50670 and S70670
1
Maintenance cover (left)
Open this cover to clean the area around the print head. Normally closed when using the printer.
See “Cleaning Around the Print Head” on page 126.
2
Additional print drying system
The additional print drying system can be used to rapidly dry ink after printing. Available separately for the S70670.
See the Additional Print Drying System Setup Guide.
3
After heater
The heater can be used to rapidly dry ink after printing.
See “Heating & Drying” on page 97.
4
Roll support
Rest media temporarily on these supports when removing the take-up roll. There are two supports: one on the left and one on
the right.
See “Media Loading and Take Up” on page 82.
5
Tensioner
The tensioner maintains tension to prevent the media sagging as it is taken up.
