2 Model IFT9701 Transmitter Instruction Manual
Before You Begin continued
1.3 European installations
This Micro Motion product complies with all applicable European directives when properly installed
in accordance with the instructions in this manual. Refer to the EC declaration of conformity for
directives that apply to this product.
The EC declaration of conformity, with all applicable European directives, and the complete ATEX
Installation Drawings and Instructions are available on the internet at www.micromotion.com/atex or
through your local Micro Motion support center.
1.4 Definitions
• The term “sensor” refers to a Micro Motion sensor only.
• The term “flowmeter” refers to an IFT9701 transmitter and a sensor installed as a
flowmetering system.
1.5 Flowmeter components
The IFT9701 transmitter can be integrally mounted to a Micro Motion F-Series sensor, or remotely
mounted from an ELITE
® , F-Series, Model D, or Model DL sensor.
The IFT9701 transmitter does not operate with Micro Motion T-Series, R-Series, or Model D600 or
DT sensors.
• If the transmitter is integrally mounted to the sensor, the flowmeter includes the components
shown in Figure 1-1.
• If the transmitter will be remotely mounted from the sensor, the transmitter includes the
components shown in Figure 1-2.
The transmitter is available with an optional liquid crystal display (LCD), as shown in Figure 1-1 and
Figure 1-2, except for ATEX Zone 1 areas.

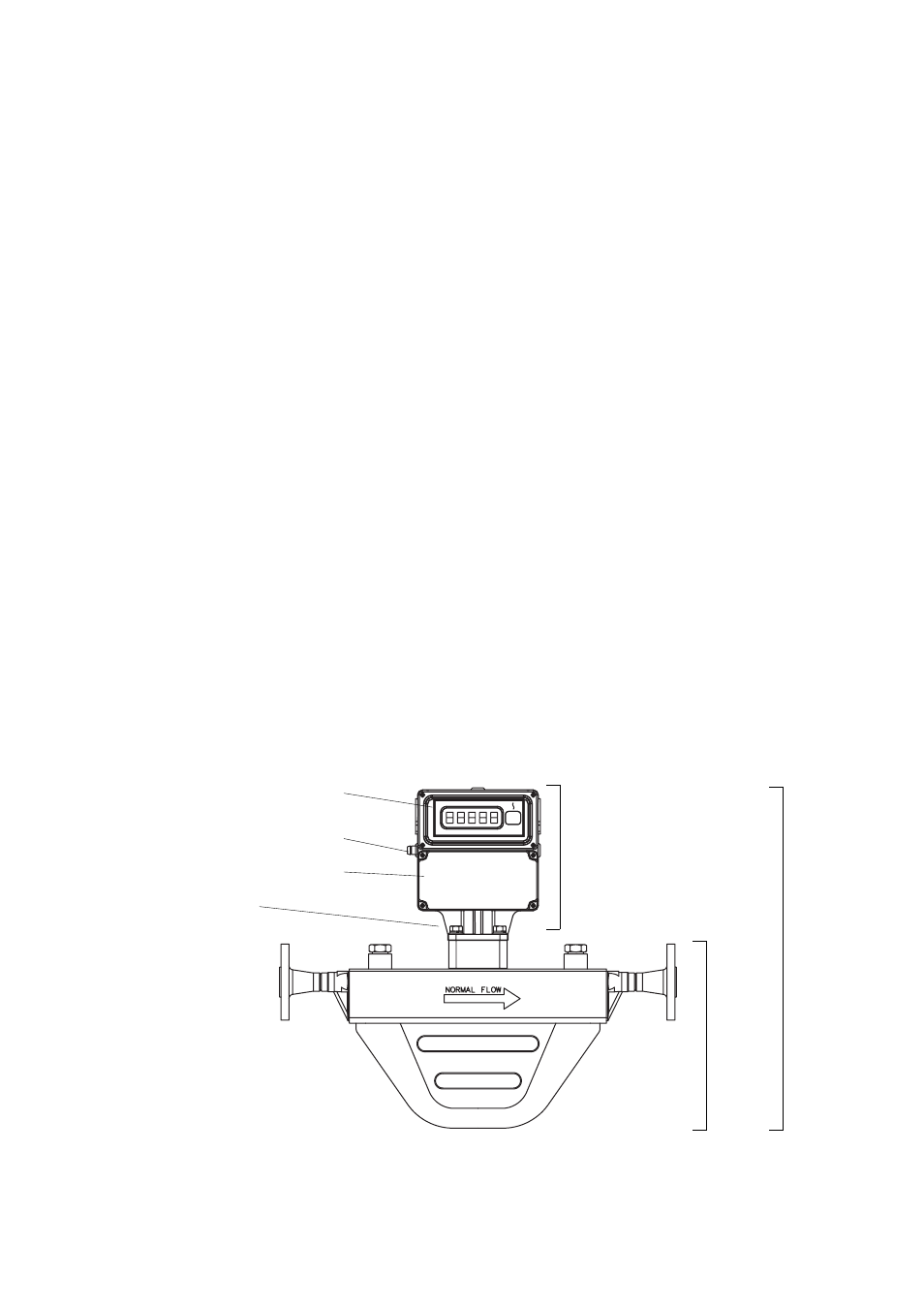

Figure 1-1 Integrally mounted IFT9701 transmitter with F-Series sensor
Model
IFT9701
transmitter
F-Series se
nsor
Flo
w
meter
Field wiring compartment
With optional LCD
Case ground
Sensor wiring compartment
4X M8 mounting bolt
4X lock washer
4X flat washer
To rotate transmitter:
remove, then re-install to
12 ft-lb (16 N-m) torque
