DISASSEMBLY/ASSEMBLY
Disassembling the Printer Mechanism
95
Confidential
When installing the Waste Ink Pad D, make sure to fit it evenly
1.5mm lower than the platen surface of the Lower Housing.
If the Lower Housing is contaminated with the liquid of the
Waste Ink Pad D, make sure to wipe it off with alcohol.

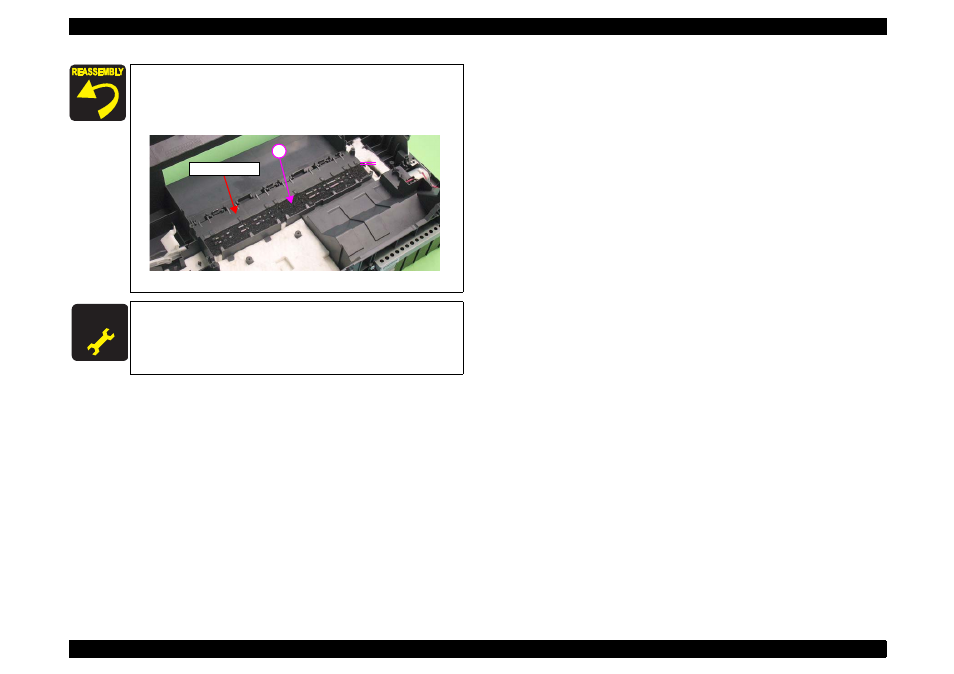

Figure 4-104. Installing the Waste Ink Pads (5)
A D J U S T M E N T
R E Q U I R E D
Whenever the Waste Ink Pads removed/replaced, the required
adjustments must be carried out.
•
Chapter 5 “ ADJUSTMENT” (p.100)
D
Lower Housing
