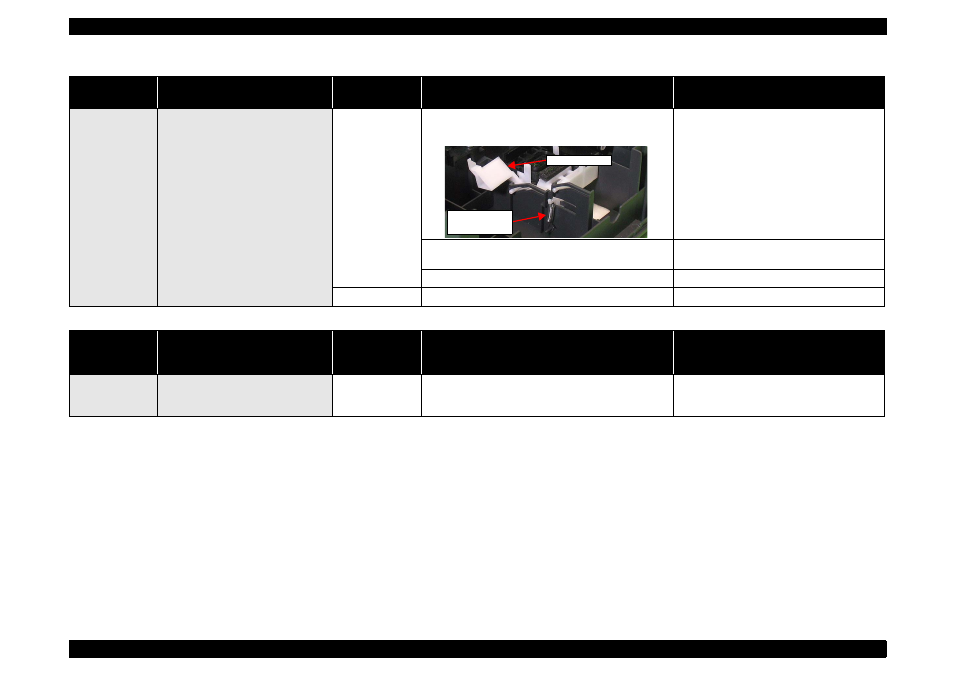

Table 3-3. (p36) – Epson Stylus TX100 User Manual
Page 36

Epson STYLUS NX100/NX105/SX100/SX105/TX100/TX101/TX102/TX103/TX105/TX106/TX109/ME 300
Revision A
TROUBLESHOOTING
Error Indications and Fault Occurrence Causes
36
Confidential
• Power on
• Anywhere
When turning on the power, the Carriage
cannot get out of home position.
Ink System
3. Check if the Spring Cleaner Lever comes off from the
Lever Cleaner.
3. Reassemble the Cleaner Lever Spring correctly.
4. Check the routing of the Waste Ink Tube.
4. Route the Waste Ink Tube correctly.
(Refer to
)
5. Check if the Cap Assy is damaged.
5. Replace the Cap Assy with a new one.
Main Frame
1. Check if the Main Frame is deformed.
1. Replace the Main Frame with a new one.
Table 3-3. Check point for the Maintenance request according to each phenomenon
Occurrence
timing
CR position
Detailed phenomenon
Defective
unit/part name
Check point
Remedy
• Operation
• –
An error is indicated on the LED and
STM or LCD.
Waste Ink Pads
---
1. Change the Waste Ink Pads and initialize the
Waste Ink Pad Counter. (Refer to
)
Table 3-2. Check point for Fatal error according to each phenomenon
Occurrence timing
CR position
Detailed phenomenon
Defective
unit/part name
Check point
Remedy
Lever Cleaner
Cleaner Lever
Spring
