Page 105: 2 using the adjustment program ( tbd )

Epson STYLUS NX100/NX105/SX100/SX105/TX100/TX101/TX102/TX103/TX105/TX106/TX109/ME 300
Revision A
ADJUSTMENT
Using the Adjustment Program (TBD)
105
Confidential
5.2 Using the Adjustment Program (
TBD
)
This section describes how to judge the adjustment patterns printed by the Adjustment
Program. For information on how to operate the Adjustment Program, see the
instructions displayed by the Adjustment Program.
5.2.1 TOP Margin Adjustment
The following pattern is printed.

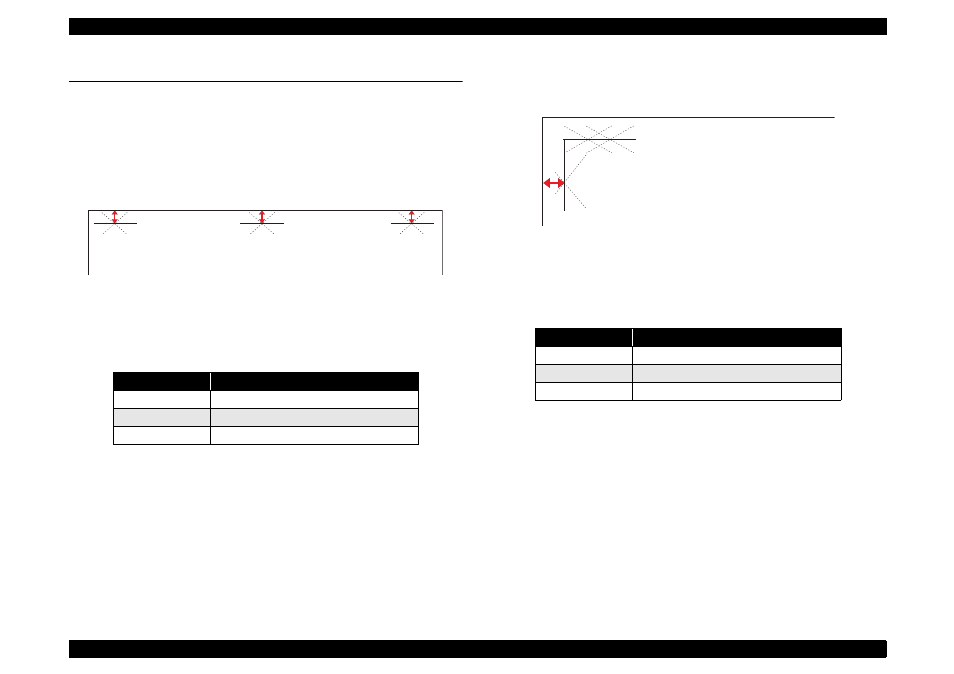

Figure 5-1. Top Margin Adjustment Printout Pattern
How to Judge
Measure the length from the top edge of the paper to the printed line. Select a value
from the combobox according to the following standard.
5.2.2 First Dot Position Adjustment
The following pattern is printed.
Figure 5-2. First Dot Position Adjustment Printout Pattern
How to judge
Measure the length from the left edge of the paper to the printed line. Select a value
from the combobox according to the following standard.
Measurement result
Selection of adjustment value
3.7 to 5.1mm
Choose the “-” from a combobox.
2.3 to 3.7mm
Choose the “0” from a combobox.
0.9 to 2.3mm
Choose the “+” from a combobox.
Measurement result
Selection of adjustment value
5.7 to 7.1mm
Choose the “-” from a combobox.
4.3 to 5.7mm
Choose the “0” from a combobox.
2.9 to 4.3mm
Choose the “+” from a combobox.
