Epson STYLUS NX100/NX105/SX100/SX105/TX100/TX101/TX102/TX103/TX105/TX106/TX109/ME 300
Revision A
ADJUSTMENT
Using the Adjustment Program (TBD)
106
Confidential
5.2.3 Head Angular Adjustment
The following pattern is printed.

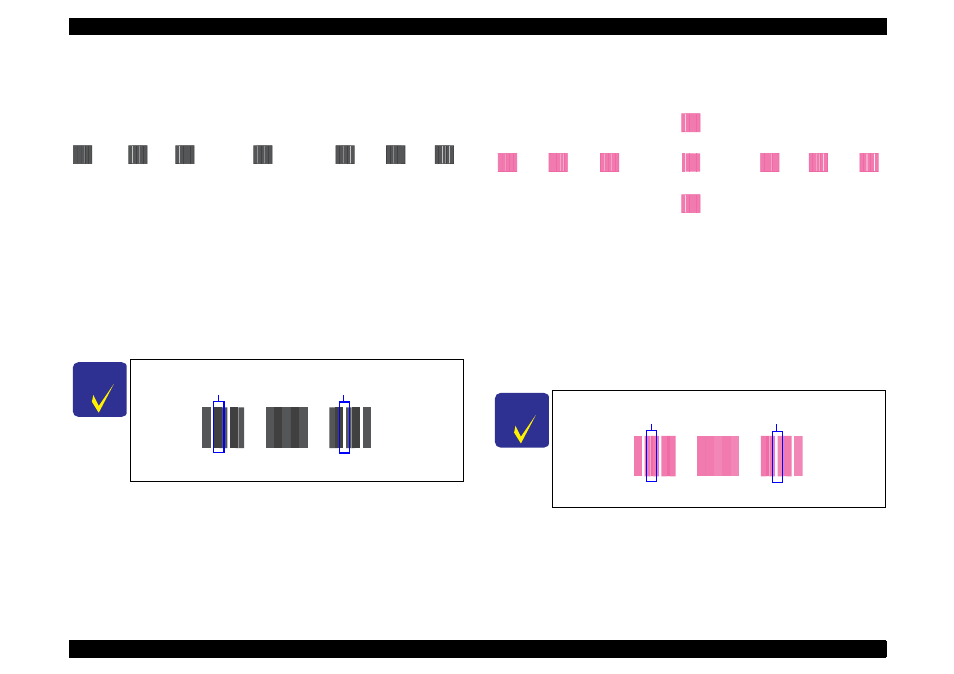

Figure 5-3. Head angular adjustment Pattern Printing
How to Judge
Examine the printout patterns, and enter the value for the pattern without any gap or
overlap.
Additional Information
If there is no OK pattern printed, enter the value for the best one, and print the
adjustment pattern again.
5.2.4 Bi-D Adjustment
The following pattern is printed for each of the four print modes (four dot size modes).
Figure 5-4. Bi-D Adjustment Printout Pattern
How to Judge
Examine the printout patterns for each of the four modes, and enter the value for the
pattern without any gap or overlap for each mode.
Additional Information
If there is no OK pattern printed, enter the value for the best one, and print the
adjustment pattern again.
C H E C K
P O I N T
Example for judgement
3
4
5
6
7
2
1
OK
NG
NG
Gap
Overlap
C H E C K
P O I N T
Example for judgement
3
5
4
6
7
8
9
2
1
OK
NG
NG
Gap
Overlap
