7
Sawgrass Technologies, Inc. ~ ArTainium ® /ChromaBlast ® DualJet™ Hybrid System 4880

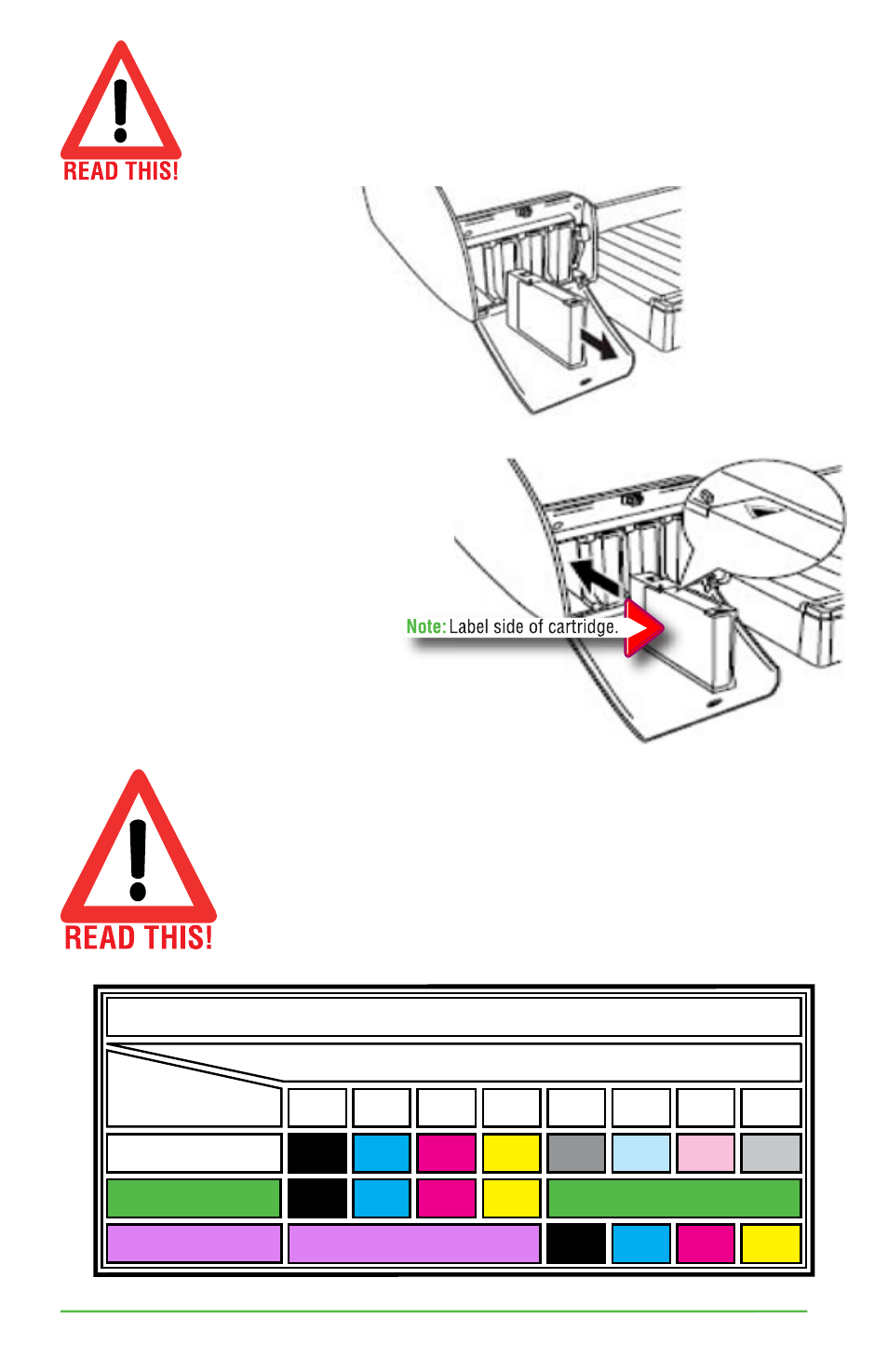

Cartridge Configuration
Manufacturer
Channel
OEM
ArTainium UV+
ChromaBlast
1 2 3 4 5 6 7 8
Matte k C M Y Lt. k Lt. C Lt. M Lt.Lt. k
ArT k ArT C ArT M ArT Y
CB k CB C CB M CB Y
If you are just replacing an empty cartridge, then continue to step 4
and 5 below. If you are installing a full set of ArTainium ® UV+ and
ChromaBlast™ Digital Transfer Ink Cartridges, please continue to
Step 6, Page 8.
Figure 8
Figure 7
5.
Carefully remove its packaging and
insert the replacement ink cartridge into
the slot with the label side facing left.
(See Fig. 8) Do not force the cartridge
into the slot. Lower the ink lever in to
the locked position. (Fig. 9, Page 8)
4.
Remove the empty ink
cartridge from the printer.
Note:
The cartridge label should be facing left as
the cartridge is inserted into it’s slot.
If you are installing a complete set of ink cartridges, then install using
the following order starting from left to right:
Left Side:
ArTainium UV+: Black (AT), Cyan (AT), Magenta (AT), Yellow (AT)
Right Side:
ChromaBlast: Black (CB), Cyan (CB), Magenta (CB), Yellow (CB)
