Bios Settings
Chapter 4
Network Application Platforms

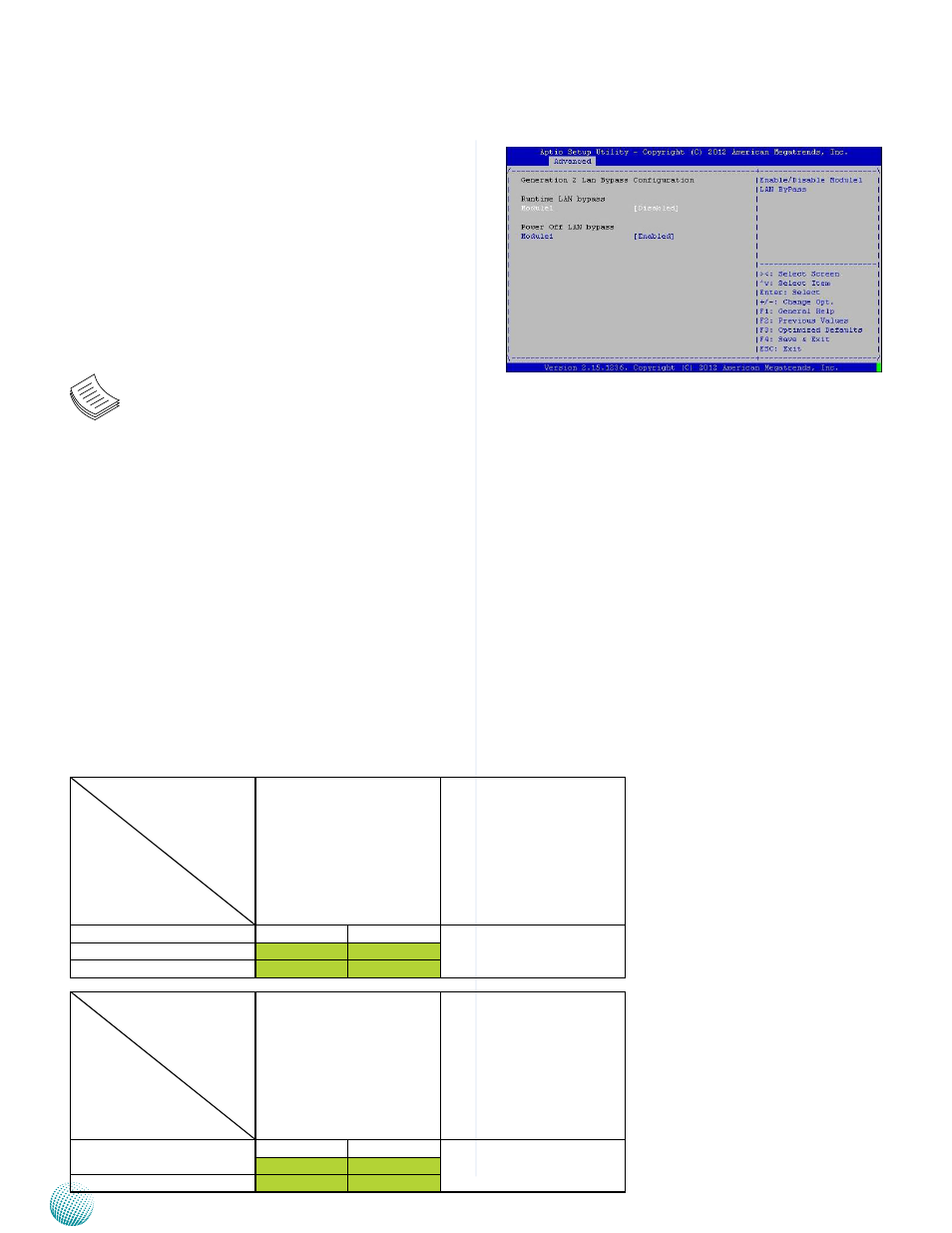

Lanner Generation 2 LAN Bypass Configuration
In this screen, you can configure the Lan Bypass
functionality. The system can accommodate one LAN
module.
LAN Bypass for Ethernet Expansion Module
You can activate or deactivate the LAN Bypass ports. For
the description of the physical ports that are capable of
the LAN Bypass function, refer to the Front Panel Feature in
Chapter 1 Introduction.
Note: the Ethernet expansion module may
support Lanner Generation 2 or Generation 3
Bypass depending on the module specification.
See appendix D Programming Generation 2 and 3
LAN Bypass for more information
Runtime and Power off Bypass Settings
You can enable or disable the automatic activation of
hardware LAN Bypass function in the event of a power
failure. Hardware Bypass can automatically activate to
allow network traffic to continue.
The LAN bypass can be turned on or off in two system
states, i.e., power on and power off. The following are
the BIOS menu and illustration of the possibilities of LAN
bypass configuration in each state. Note that according to
the result from table 2, the ports are not bypassed in both
Power-on or Power-off state when the setting “Power off
LAN Bypass for Module 1” is disabled.
Bypass settings in the BIOS
System Status
Runtime LAN Bypass for
Module 1
Power off LAN Bypass for
Module 1
Enabled Disabled Enabled
Power on Bypass Non-Bypass
Power off Bypass Bypass
Bypass settings in the BIOS
System Status
Runtime LAN Bypass for
Module 1
Power off LAN Bypass for
Module 1
Power on Enabled Disabled Disabled
Non-Bypass Non-Bypass
Power off Non-Bypass Non-Bypass
