Motherboard Information
Network Application Platforms
Chapter 3

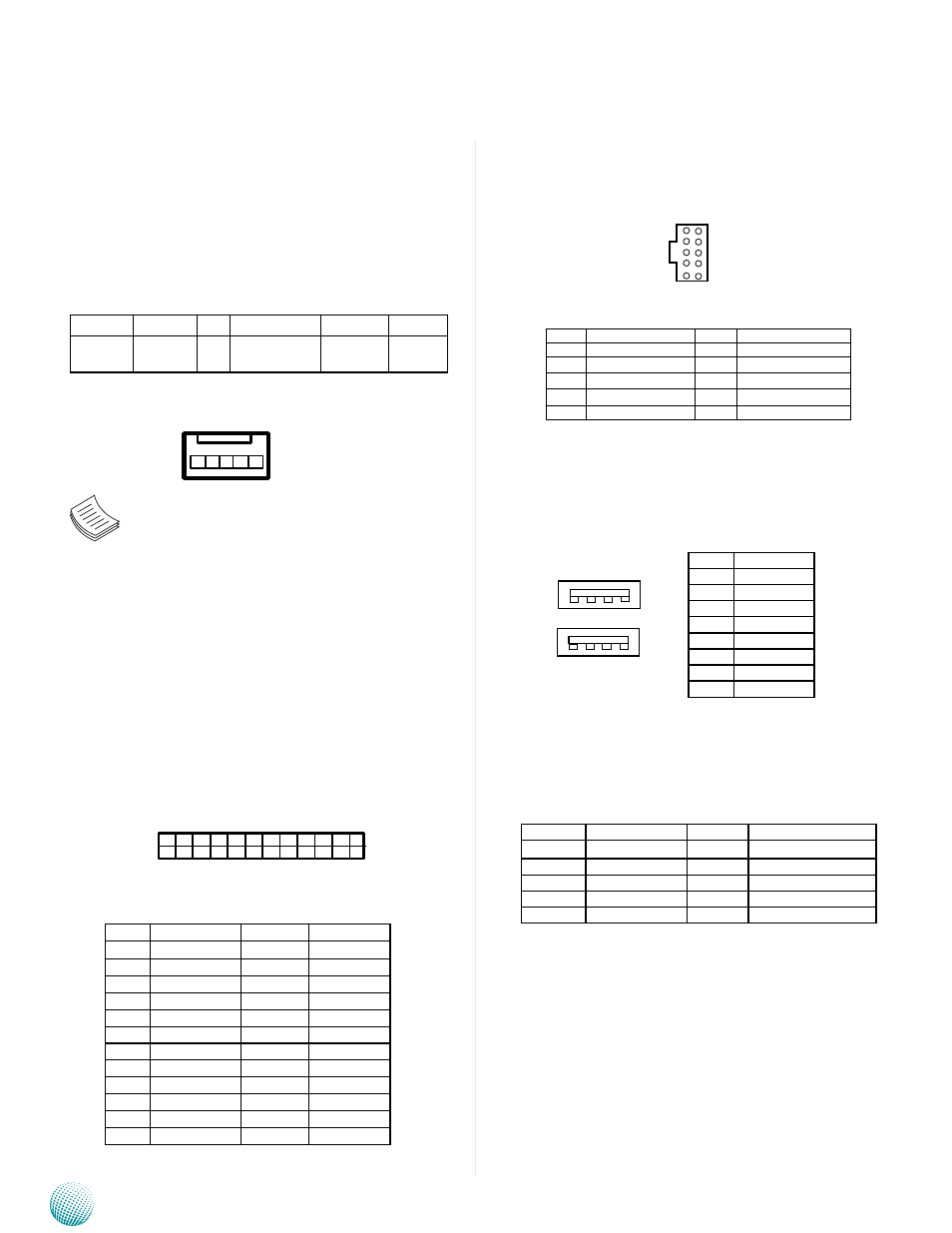

Jumper Settings
Fan Connectors(FAN2 ): The 5-pin connector is for
connecting the CPU fan. It comes with the smart fan
feature by which the fan could be monitored and
turned on when the temperature exceed the set
threshold.
Note : FAN2 (CPU) fan can be set to be in either
manual mode or smart fan mode in the BIOS
menu.
ATX Power Connector (ATX11): This 24-pin
connectorare for connecting ATX power
supply plugs. Find the proper orientation when
inserting the plugs, for the supply plugs are
designed to fit these connectors in only one
orientation.
Pin No. 1 2 3 4 5
Function PWM NC RPM Sense +12V Ground
1 2 3 4 5
USB Connector(USB2): It is for connecting the USB
module cable. It complies with USB2.0 and support
up to 480 Mbps connection speed.
Dual USB 2.0 Ports (USB1): This provides two USB 2.0
ports in the front panel.
Console Port (COM1)
Pin No. Signal Pin NO. Signal
1 +3.3V 2 +3.3V
3 Ground 4 +5V
5 Ground 6 +5V
7 Ground 8 Power Good
9 Standby 5V 10 +12V
11 +12V 12 +3.3V
13 +3.3V 14 -12V
15 Ground 16 PSON-
17 Ground 18 Ground
19 Ground 20 NC
21 +5V 22 +5V
23 +5V 24 GND
2
4
6
8
10
1
3
5
7
9
USB2
Pin No. Signal
1 USB_VCC
2 USBD0-
3 USBD0+
4 GND
5 USB_VCC
6 USBD1-
7 USBD1+
8 GND
1 2 3 4
5 6 7 8
Pin No. Signal Pin No. Signal
1 RTS- 6 SIN
2 DTR- 7 DSR-
3 SOUT 8 CTS-
4 GND
5 GND
Pin No. Signal Pin No. Signal
1 USB_VCC 2 USB_VCC
3 USBD2- 4 USBD3-
5 USBD2+ 6 USBD3+
7 Ground 8 Ground
9 Ground 10 Ground
1
2
23
24
