Introduction
Chapter 1
Network Application Platforms
L A N 1 L A N 2 L A N 3 L A N 4 L A N 5 L A N 6 L A N 7 L A N 8

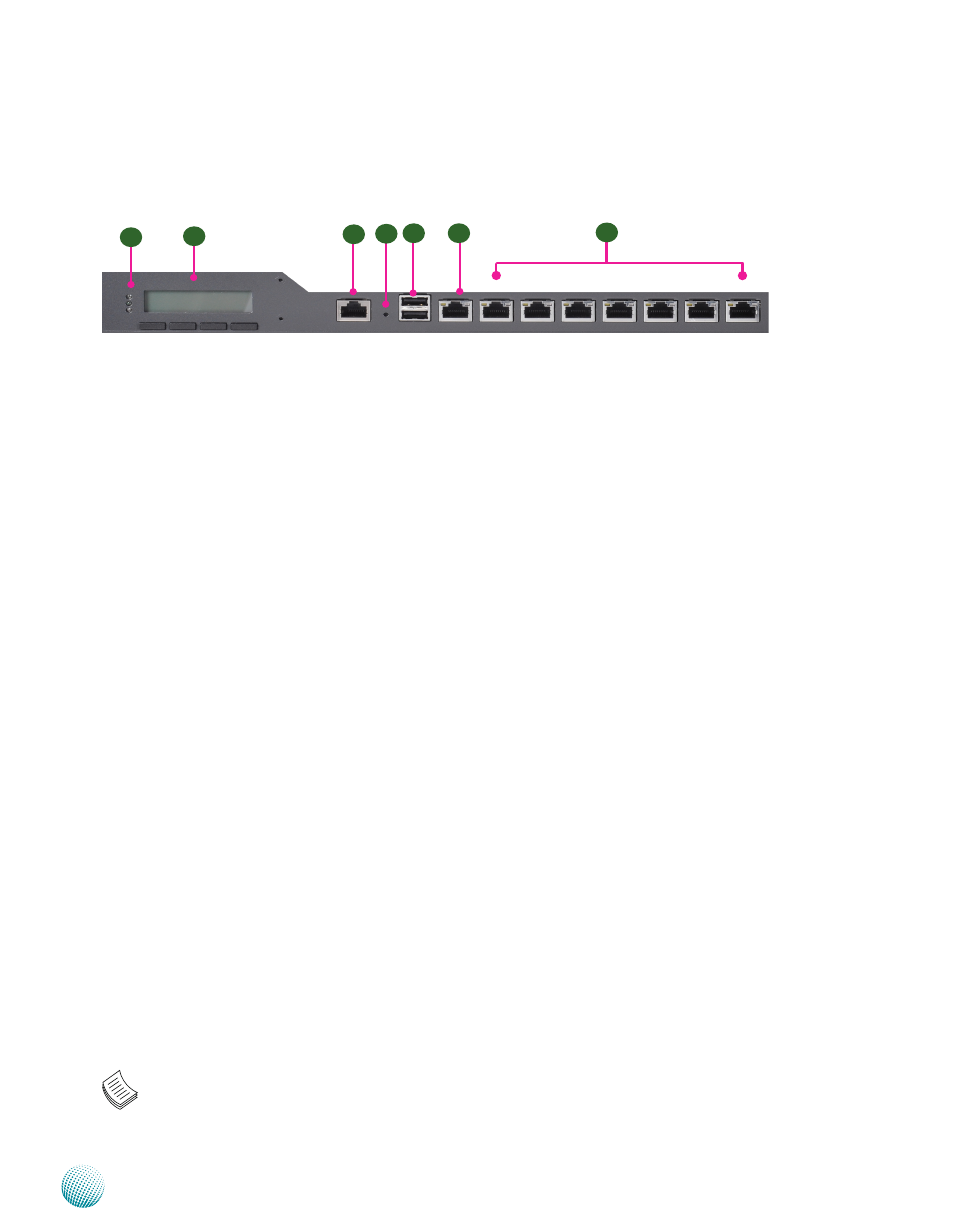

Front Panel Features
F1 Power/Status/HDD LED
Power: If the LED is on it indicates that the system is powered on. If it is off, it indicates that the system is powered off.
Status: If the LED is green, it indicates that the system’s operational state is normal. If it is red, it indicates that the system is
malfunctioning.
HDD: If the LED is on, it indicates that the system’s storage is functional. If the LED blinks, it indicates data access activities.
If it is off, it indicates that there is no hard disk present or functional
F2 System Panel: LCD System Panel
The LCD System Panel can be programmed to display operating status and configuration information. For more details or
sample programming code, please refer to the Appendix C.
F3 Console Port
By using suitable rollover cable or RJ-45 to DB-9 Female (Cisco console cable), you can connect to a computer terminal for
diagnostic or configuration purpose. The default terminal Configuration Parameters: 115200 baud, 8 data bits, no parity, 1
stop bit , no flow control.
F4 Reset Switch
The reset switch can be used to reboot the system without turning off the power.
F5 Two USB 2.0 Ports
It connects to any USB devices, for example, a flash drive. The system supports two additional USB 2.0 ports in the form of
internal pin headers.
F6 Management Port (Optional)
This FastEthernet port can be connected for configuration or troubleshooting purpose. A conformity with IPMI (Intelligent
Platform Management Interface) can be implemented on this interface.
F7 8 Gigabit LAN ports
Right LED:If the LED is orange, it indicates that the connection speed is 1000Mbps. If the LED is green, it indicates that the
connection speed is 100Mbps. And if it is off, it indicates that the speed is 10Mbps.
Left LED: If the LED is on, it indicates that the port is active. If it blinks,
it indicates there is traffic.
Using suitable RJ-45 cable, you can connect FW-7565 System to a computer, or to any other piece of equipment that has an
Ethernet connection, for example, a hub or a switch. Moreover, 2 pairs (LAN1-LAN2, LAN3-LAN4) can be configured as LAN
Bypass when failure events occur. This feature is implemented in hardware using watch dog timer functionality. Refer to your
Driver and Manual CD for a sample implementation of this feature.
Note:
The availability of LAN Bypass varies depending on the model. 1.
The number of LAN ports varies depending on the model. 2.
F1 F2 F3 F4 F5 F7 F6
Management
