Network Application Platforms
Chapter 2:
Hardware Setup
Preparing the Hardware Installation
To access some components and perform certain service
procedures, you must perform the following procedures
first.
WARNING: To reduce the risk of personal injury,
electric shock, or damage to the equipment,
remove the power cord to remove power from the
device. The Power On/Standby button on the back
panel does not completely shut off system power.
Portions of the power supply and some internal
circuitry remain active until AC power is removed.

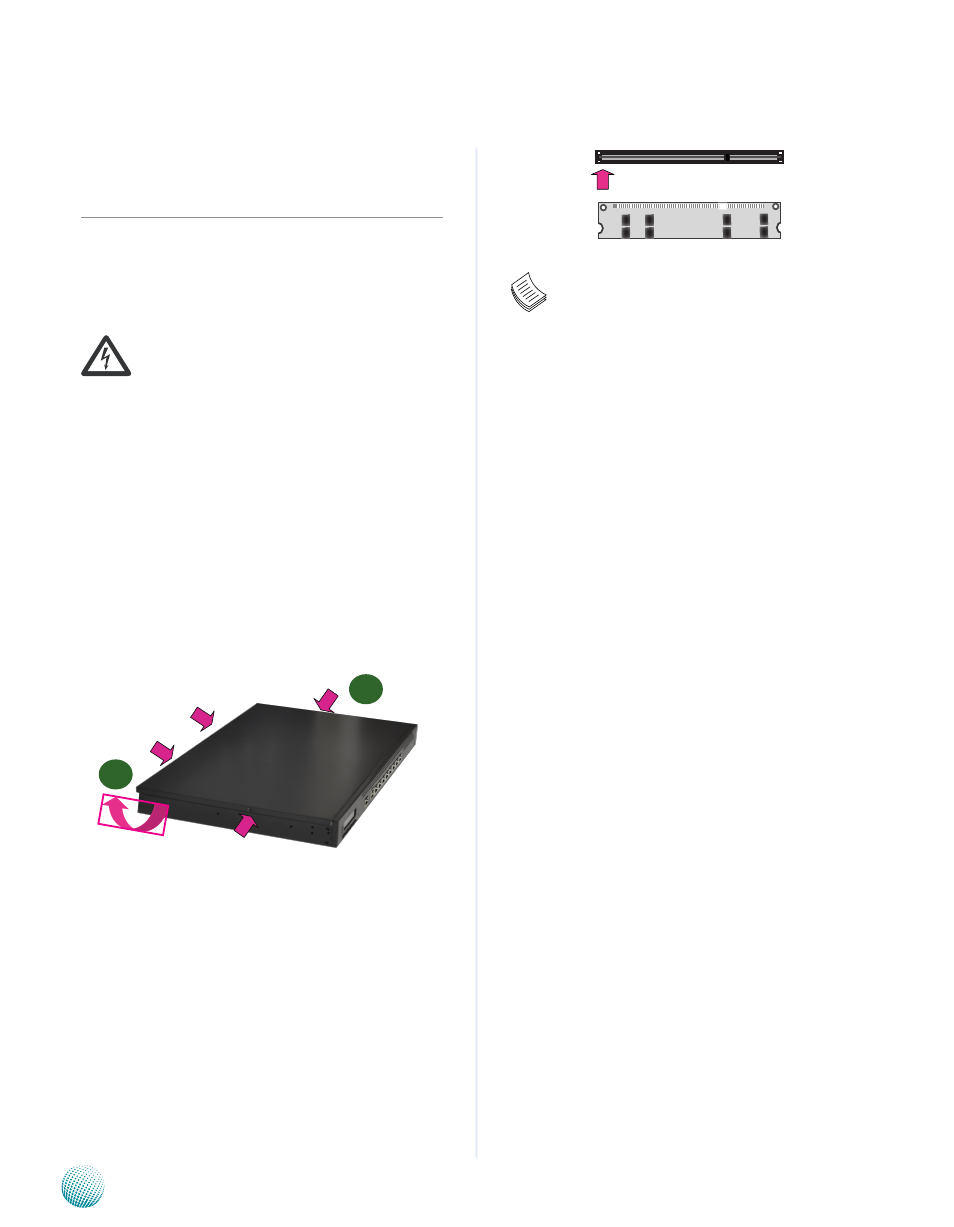

Unpower the FW-7565 and remove the power cord. 1.
Unscrew the 2 threaded screws from the two sides and 2.
2 screws from the rear of the top cover of the FW-7565
System.
Slide the cover backwards and lift cover upwards to
3.
open it.
Installing the System Memory
The motherboard supports DDR2 memory that features
data transfer rates of 667 or 800 MHz to meet the higher
bandwidth requirements of the latest operating system
and Internet applications. It comes with one Double Data
Rate(DDR2) Small Outline Dual Inline Memory Modules
(SO-DIMM) socket.
Align the memory module’s cutout with the the SO- 1.
DIMM’s slot notch.
Install the SO-DIMM.
2.
Note:
SO-DIMM installed must meet the following 1.
speed requirement: DDR2 667 or 800 MHz. Do
not install DIMMs with different speeds.
The motherboards can accommodate on-board 2.
memory of 512MB or 1GB DDR2 memory. With
the additional 2GB support from SO-DIMM , it
can support a total memory capacity of 3 GB in
maximum.
Installing the Hard Disk
The system can accommodate one Serial-ATA disk (2.5” or
3.5”). Follow these steps to install a hard disk into the FW-
7565:
Unscrew the 4 screws on the hard disk tray to take out 1.
the hard disk tray from the system.
Place hard disk on the hard disk tray and align the holes
2.
of the hard disk with the mounting holes on the tray.
Secure the hard disk with 4 mounting screws on the
3.
hard disk tray.
Connect the Serial-ATA power from the ATX power
4.
supply unit and hard disk cables to the hard disk’s
power and hard drive connectors respectively.
Plug the Serial-ATA cable to the Serial-ATA Connector
5.
on the main board.
Put the hard disk tray with the installed hard disk back
6.
to the system and secure it with the mounting screws.
3
2
Cutout
Notch
