Network Application Platforms

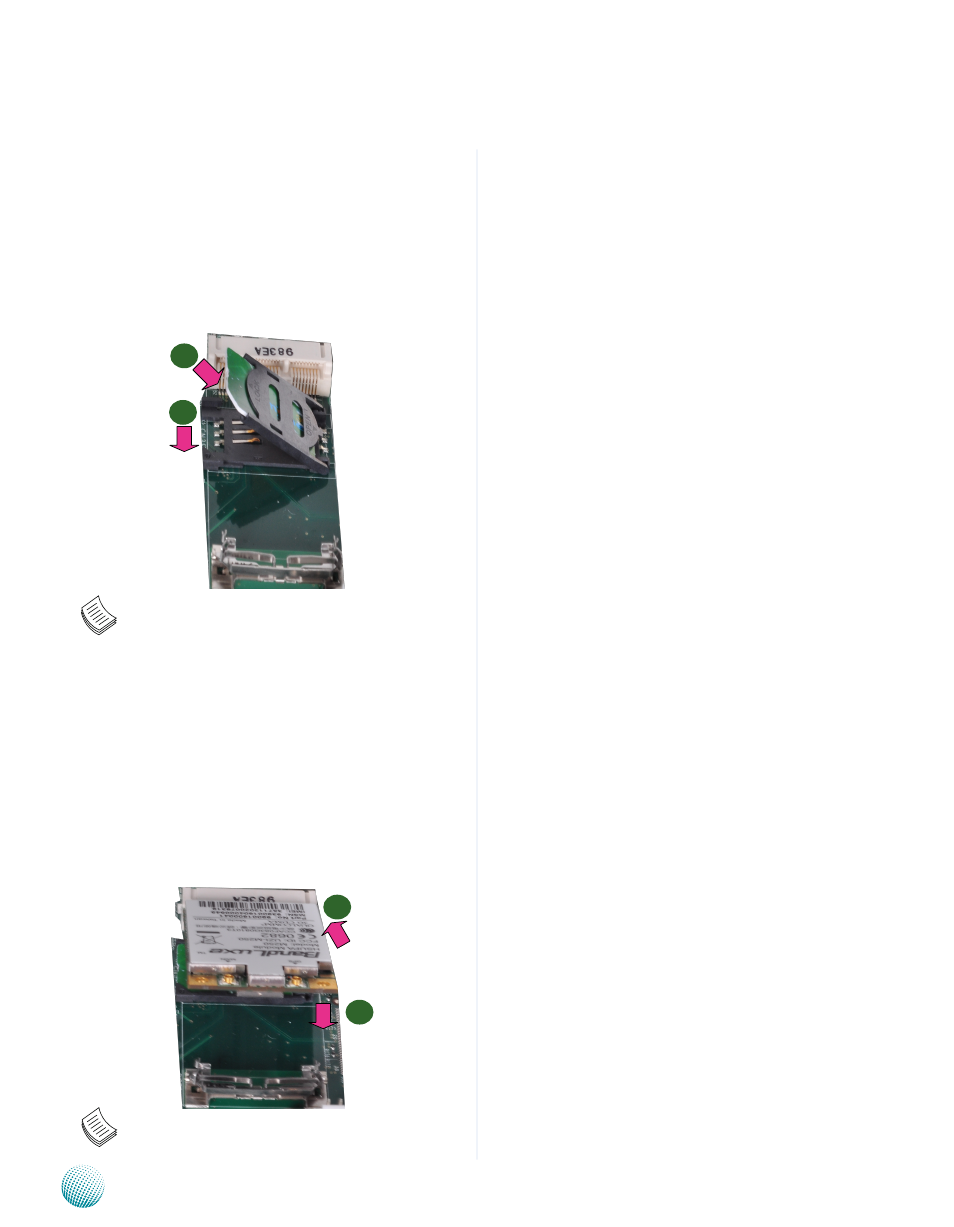

Installing 3G SIM Card
Installing Wireless 3G Module
Unlock the SIM card tray. 1.
Align the SIM card and the tray with the cut-off 2.
angle.
Insert the SIM card into the tray.
3.
Close the tray and lock it on the board. 4.
Align the wireless module’s cutout with the Mini-PCIe 1.
slot notch.
Insert the wireless module into the connector
2.
diagnoally.
Push the other end of the wireless module to be
3.
tightened with the latch.
3
4
3
2
Note: To remove the SIM card, unlock the tray first
by sliding it outward.
Note 1. : To remove the module from the system,
release the latch first by slightly bending it inward.
