Customer Service Email: cseverpure @ pentair.com n Technical Support Email: servicespecialist @ pentair.com 33

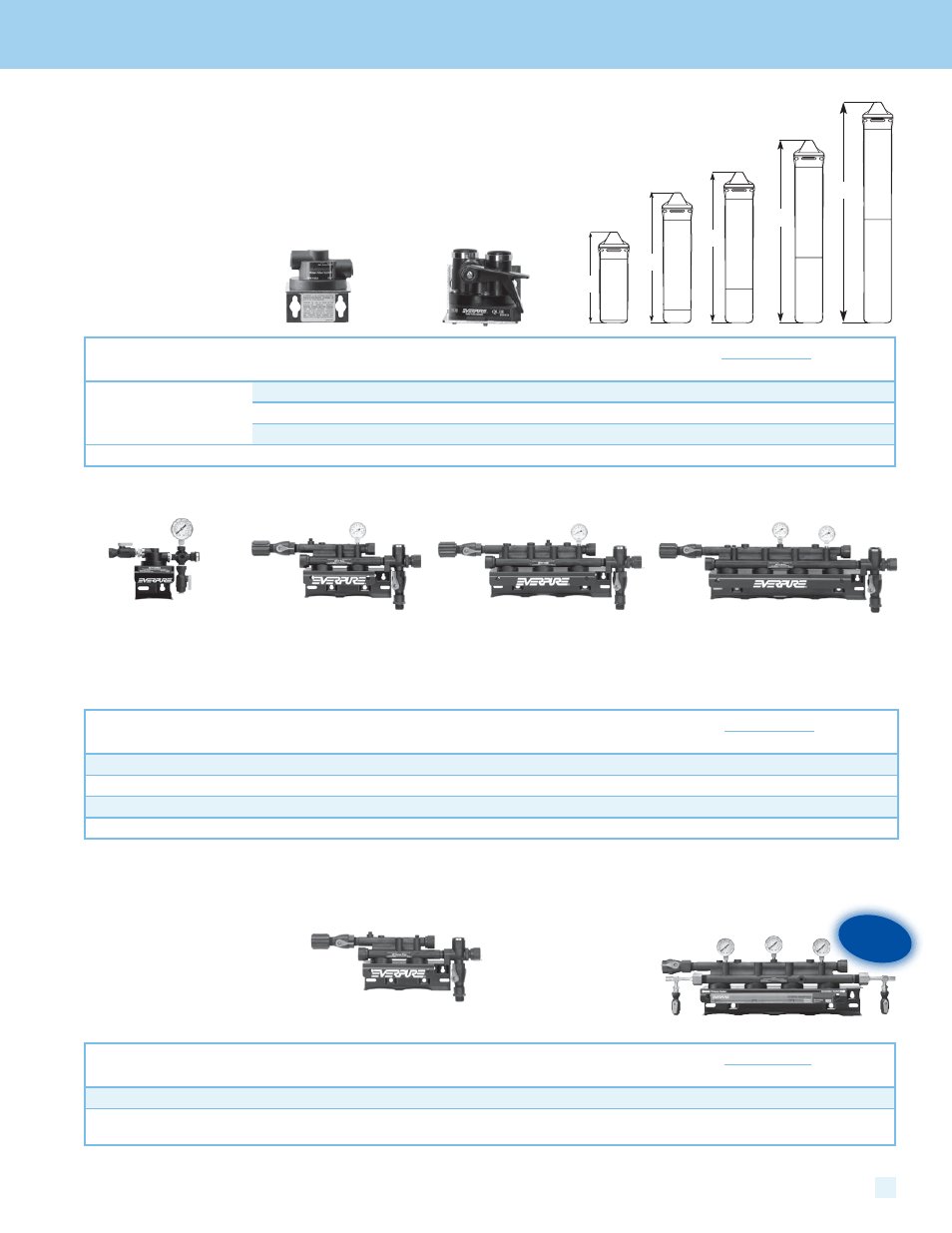

FILTER HEADS
*Twin Series Head required when the 7SO, 7TO, 7OF and 7NE cartridges are used with an MC 2 fine filter cartridge.
What's your
filter size?
System
Part
Number
Shut-Off
Valve
Mounting
Bracket Connection
Flushing
Valve
Pressure
Gauge(s)
Pack
Size
Ship Wt.
List Price lb kg
QL1 Single Head
EV9256-17 N Y 3/8" JG N N 24 14 6.4 $46.10
EV9256-18 N Y 3/8" NPT N N 24 14 6.4 44.10
EV9256-20 N Y 1/4" JG N N 24 14 6.4 46.10
QL3B Single Head EV9259-24 Y Y 3/8" NPT N N 12 7 3.2 65.50
System
Part
Number
Shut-Off
Valve
Mounting
Bracket Connection
Flushing
Valve
Pressure
Gauge(s)
Pack
Size
Ship Wt.
List Price lb kg
Single Head EV9272-41 Y Y 3/8" NPT Y Y 1 3 1.7 $263.00
Twin Parallel Head EV9272-22 Y Y 3/4" NPT Y Y 1 6 2.7 464.00
Triple Parallel Head EV9272-23 Y Y 3/4" NPT Y Y 1 7 3.2 659.00
Quad Parallel Head EV9336-11 Y Y 3/4" NPT Y Y 1 10 4.5 939.00
System
Part
Number
Shut-Off
Valve
Mounting
Bracket Connection
Flushing
Valve
Pressure
Gauge(s)
Pack
Size
Ship Wt.
List Price lb kg
Twin Series Head; Series Plumbed* EV9272-24 Y Y 3/4" NPT Y N 1 4 1.8 $238.00
Hybrid Manifold: Triple Parallel & Single EV9278-90 Y Y
Inlet: 3/4" NPT
Outlets: 1/2" Barb
Y Y 1 10 4.5 981.00
QC7I/Insurice Twin
Parallel Head
Twin Series Head;
Series Plumbed
QC7I/Insurice Triple
Parallel Head
QC7I/Insurice Quad
Parallel Head
QL3B Single Head QL1 Single Head
2-SIZE
14.5"
10.25"
4-SIZE 6-SIZE 7-SIZE X-SIZE
17"
20.75"
25"
2-SIZE
4-SIZE
2-SIZE
14.5"
10.25"
4-SIZE 6-SIZE 7-SIZE X-SIZE
17"
20.75"
25"
6-SIZE
2-SIZE
14.5"
10.25"
4-SIZE 6-SIZE 7-SIZE X-SIZE
17"
20.75"
25"
7-SIZE
2-SIZE
14.5"
10.25"
4-SIZE 6-SIZE 7-SIZE X-SIZE
17"
20.75"
25" X-SIZE
2-SIZE
14.5"
10.25"
4-SIZE 6-SIZE 7-SIZE X-SIZE
17"
20.75"
25"
QC7I/Insurice ®
Single Head
QC7I Manifolds
A parallel head:
• The flow rate and capacities of all cartridge are
combined to get the total system flow rate and capacity
• The inlet water passes through all filter cartridges
simultaneously
Twin Series Head; Series Plumbed
A series head:
• Water flows through each
filter in linear fashion, so the
total flow is limited to the filter
with the lowest flow rate
• Total system flow and capacity is
limited to the filter with the lowest
flow rate and capacity
10.25"
14.5"
17"
20.75"
25"
Everpure replacement filter cartridges are manufactured
in 5 different height configurations. Each cartridge has
a size designation of:
2-size = 10.25" high 4-size = 14.5" high 6-size = 17" high
7-size = 20.75" high X-size = 25" high
QL Series
• Provides two water
qualities. The first outlet
is from three filter
cartridges in parallel,
the second outlet is
from a single cartridge,
see page 26 for example.
Hybrid Manifold
Triple & Single System
in One Configuration
NEW!
