If the transducer's face isn't parallel with the ground, remove the

transducer and ratchets from the bracket. Place the ratchets into the

holes in the bracket with the letter "B" aligned with the dot stamped

in the bracket.
Reassemble the transducer and bracket and place them against the

transom. Again, check to see if you can move the transducer so it's

parallel with the ground. If you can, then go to step 3. If it doesn't,

repeat step 2, but use a different alignment letter until you can place

the transducer on the transom correctly.

Insert bolt and check transducer position on transom.

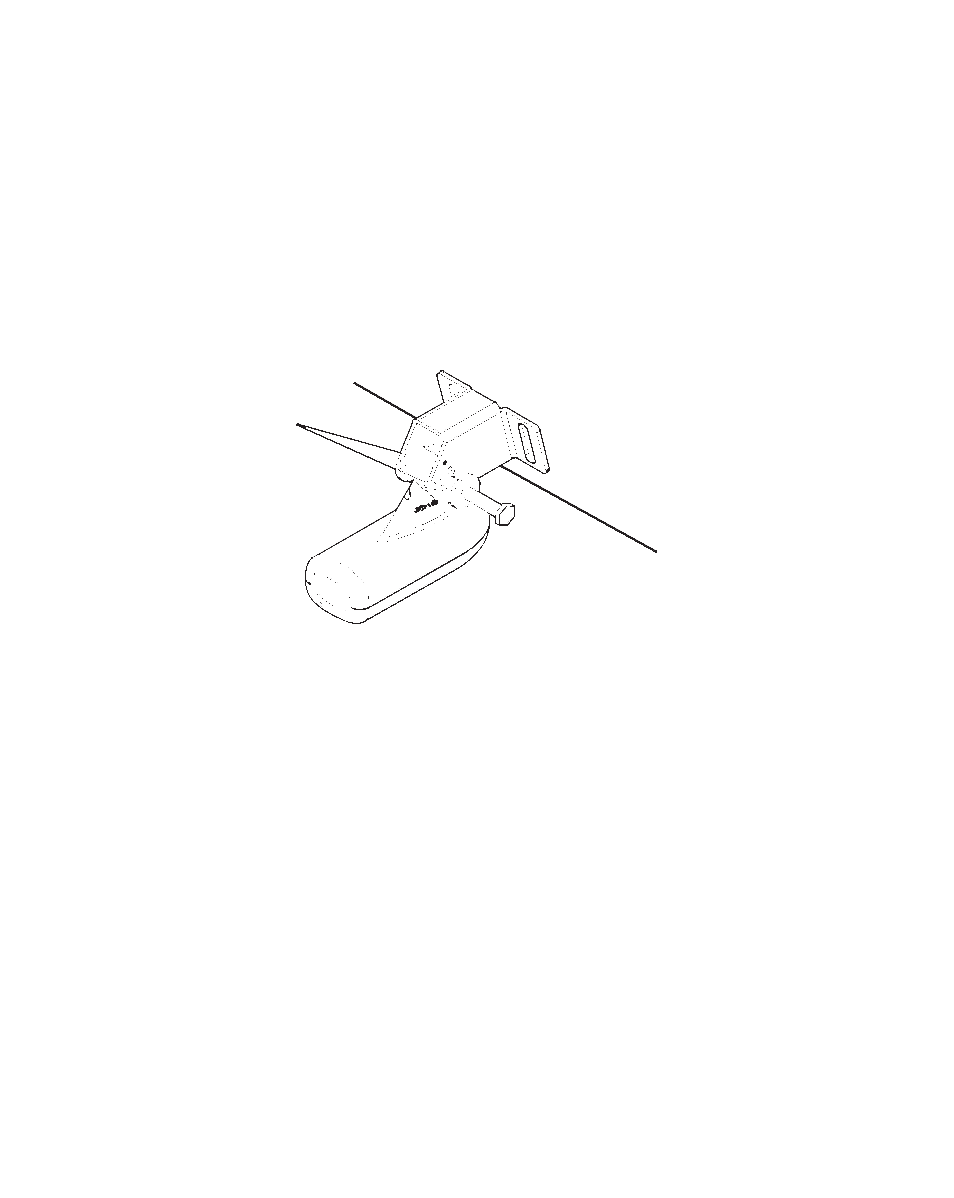

3. Assembling the transducer. Once you determine the correct posi-

tion for the ratchets, assemble the transducer as shown in the following

figure. Don't tighten the lock nut at this time.

Ratchets
