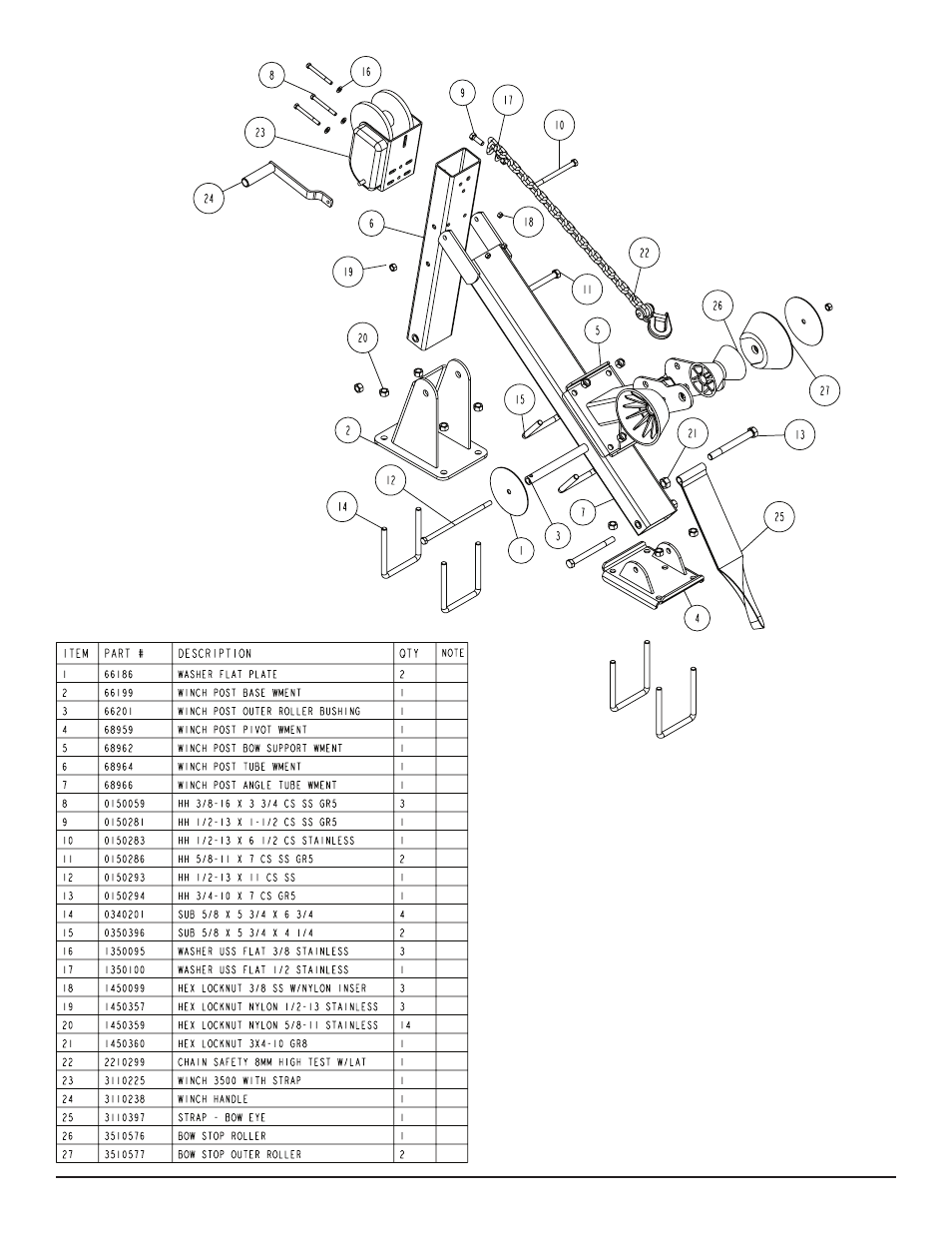

Diagram D
Winch Assembly:
The winch post assembly comes factory assembled and ready to
mount on the tongue. Position the winch assembly on the tongue
in a location that would best fit your watercraft. Using two (2) 5/8” X
5-3/4” X 6-3/4” stainless steel square u-bolts, secure the winch as-
sembly to the tongue. Tighten with four (4) 5/8” stainless steel lock
nuts so that the winch assembly will not slide on tongue. Set the
other mounting plate in position and secure it using two (2) 5/8” X
5-3/4” X 6-3/4” stainless steel square u-bolts and four (4) 5/8” stain-
less steel lock nuts. Refer to winch adjustments on page 14.
