8. Display LED Indicators.
The Design Spot 575E™ has two LED indicators on the display. These indicators are

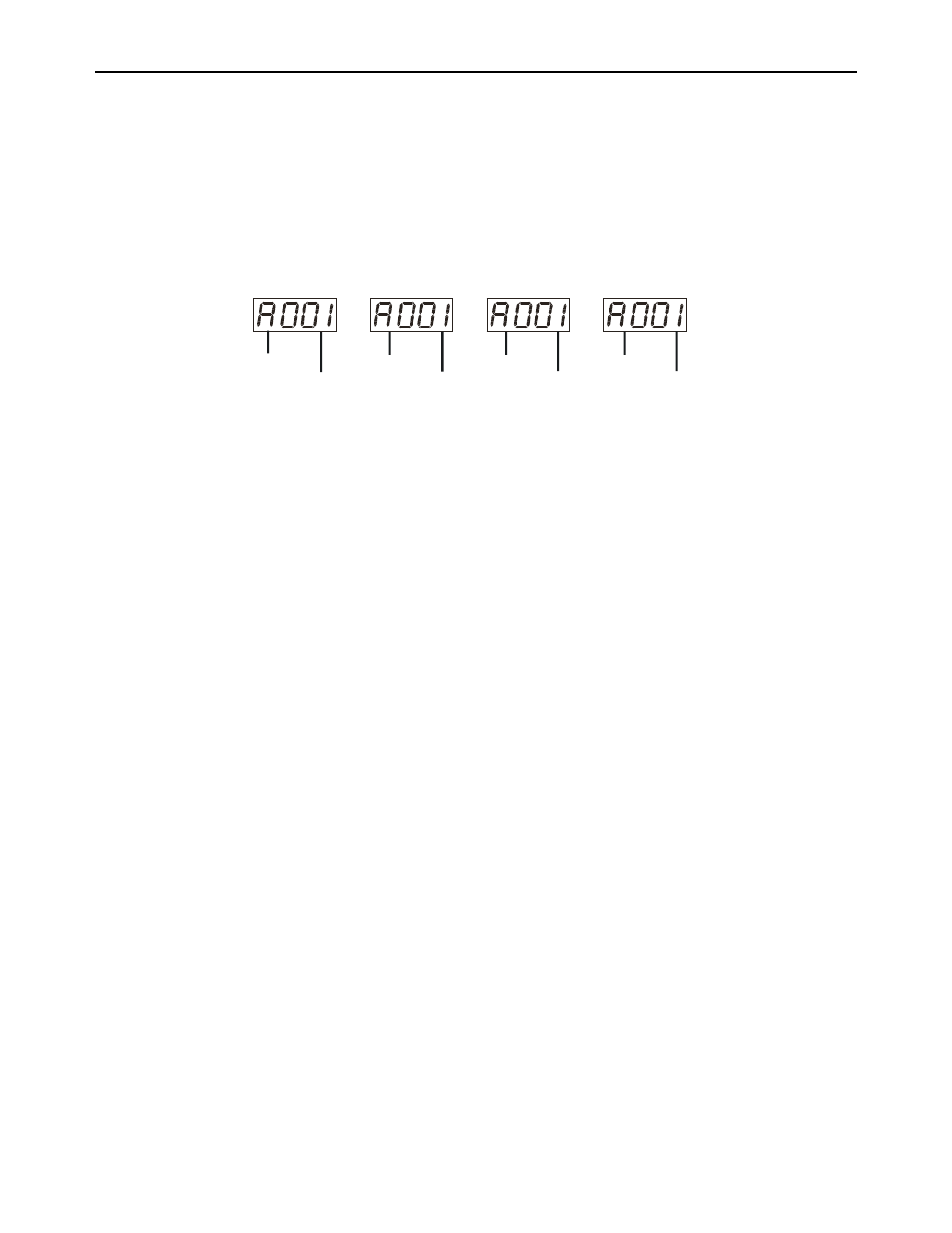

designed to give a quick visual indication of the fixtures’ status. The illustration below details
the functionality of the LED indicators.
. . . .
Lamp on Lamp on
DMX OK DMX OK NO DMX NO DMX
Lamp off Lamp off
The first LED indicators represents DMX signal:
• If the indicators is on a clean DMX signal is present
• If the indicator is off there is no DMX signal present
The second LED indicator represents lamp condition:
• If the indicator is on the lamp is struck and in working condition
• If the LED indicator is off the lamp has not struck, has been turned off, or is bad.
