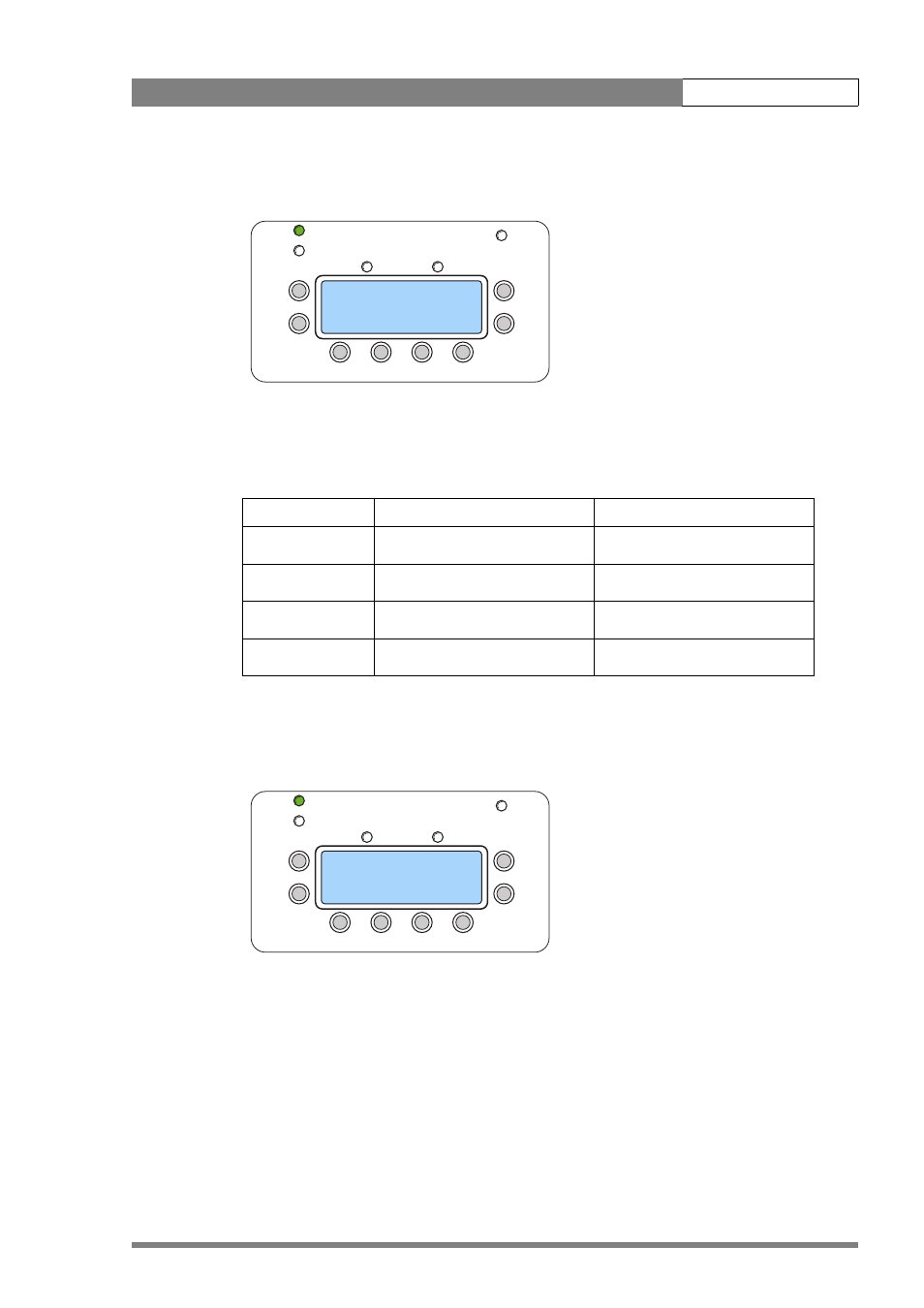

DCR 4000 User’s Guide | Menu Structure 3-5
Scrolling down shows the next three items
BNC OUT & SUBD OUT: The output mode for these connectors can be set as indicated by
the table below. Press [SEL] to toggle through the different output modes.
LOOKUP TABLE: This is a factory default setting. It can not be changed.
Scrolling downs shows the next items:
Output mode: Dual link recorded: Single link recorded:
dL/sLA Dual link HDSDI output Single link on output A, output B is
switched off.
Cf/sLA Viewing output Single link on output A, output B is
switched off.
sL/sLAB Dual link HDSDI output Single link on output A and output B
simultaneously
Cf/sLAB Viewing output Single link on output A and output B
simultaneously
RECORD RECORD
POWER POWER
LIGHT LIGHT
ESC ESC UP UP
DOWN DOWN
PLAY PLAY
READY READY
SEL SEL
PLAY PLAY STOP STOP REC REC
TOOLS AND SETTINGS
> BNC OUT dl/sLAB ↑
SUBD OUT dl/sLAB
LOOKUP TABLE ↓
RECORD RECORD
POWER POWER
LIGHT LIGHT
ESC ESC UP UP
DOWN DOWN
PLAY PLAY
READY READY
SEL SEL
PLAY PLAY STOP STOP REC REC
TOOLS AND SETTINGS
> TIME AND DATE ↑
LANGUAGE ENGLISH
TIME MODE ↓
