Disassembling the PDR100
PDR 100 9GB Disk Drive Upgrade 7
Removing the Top Covers
Access to the interior of the chassis requires removal of both top chassis covers.
To remove the top covers, use the Torx tool with the T10 tip and:
1. Remove the screws which secure the front cover to the chassis. See Figure 3.
The front cover (
➊
in Figure 4) must be removed first since its rear edge
overlaps the front edge of the rear cover. Discard the front cover.
2. Remove the screws which secure the front cover to the chassis.(
➋
in Figure 3).
Set the rear cover aside.

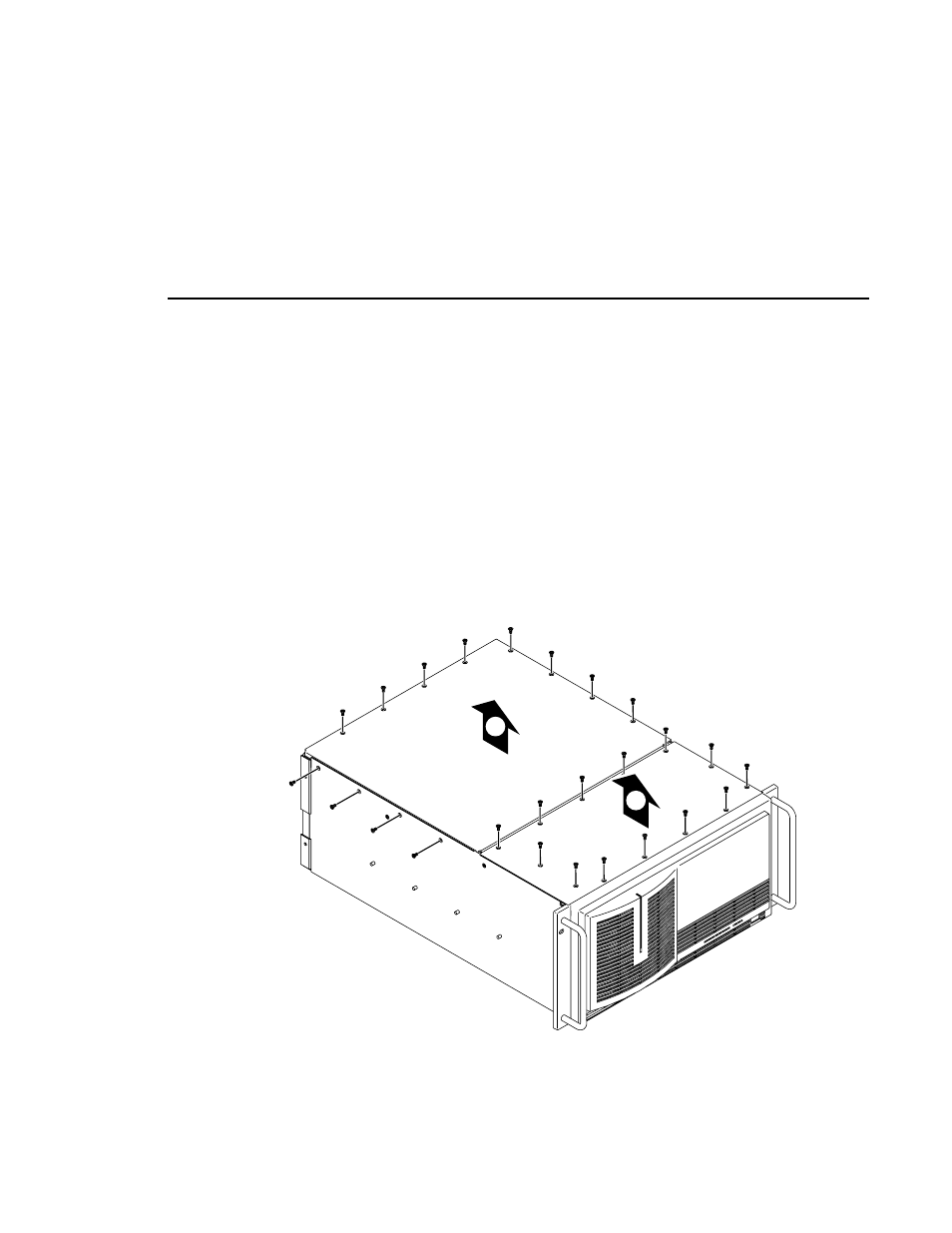

Figure 3. Removing the top covers
2
1
9496-1
