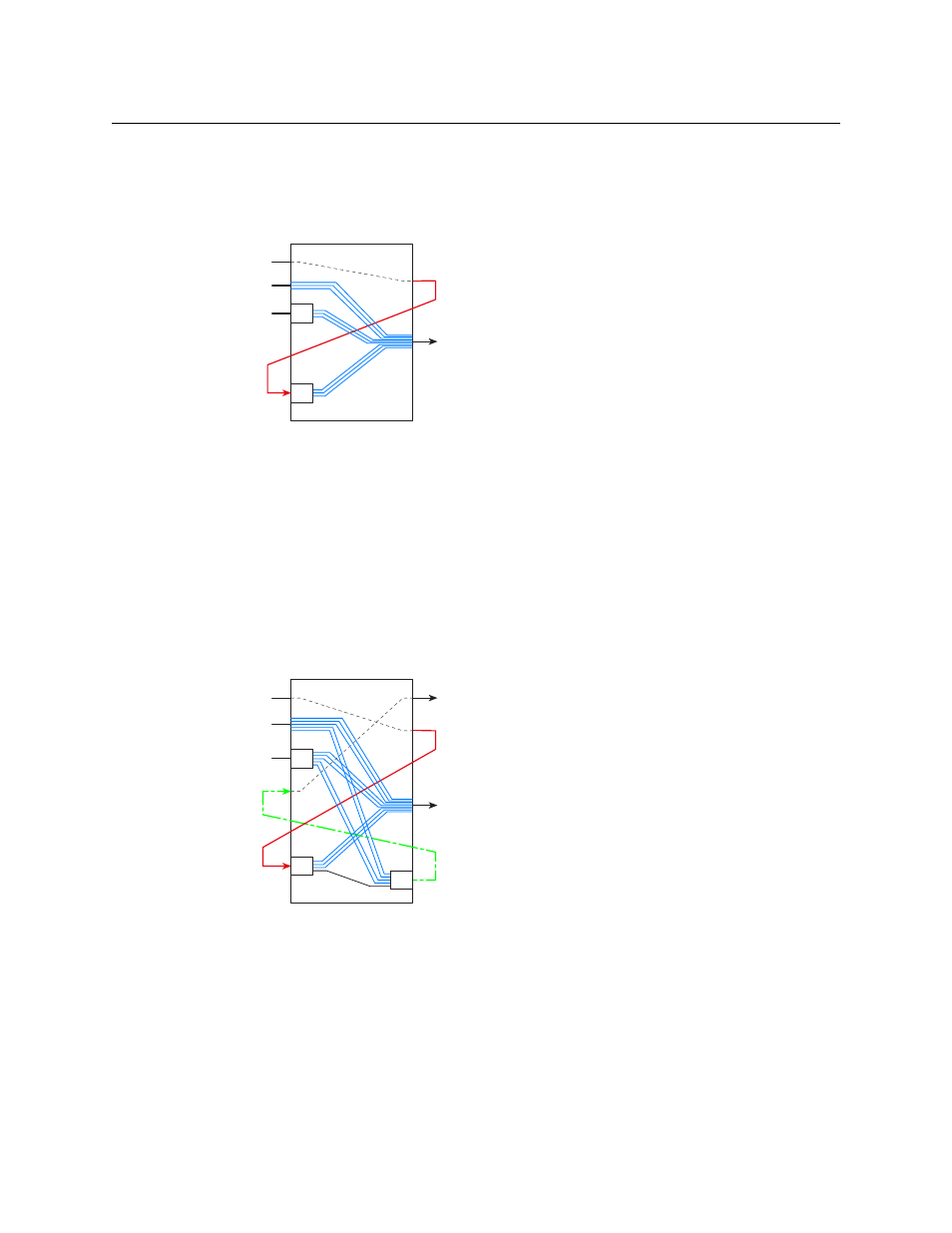

D-J, Case 18
Mixed to MADI
In the case of mixed input (standard, disembedder, or MADI), audio is extracted from the various
inputs according to the breakaway specified by the operator. If there are standard inputs among
the mix, a disembedder in the DHP core is required to extract the audio from each one.
The audio from the various sources is routed through the TDM matrix to the MADI ports desig-
nated by the operator.
(Because the embedder card supports 16 audio channels, this scenario could potentially have
up to 16 input sources of various kinds.)
Multiple MADI ports can be routed in a single take insofar as they are combined in the level set
of the (audio) destination.
D-K, Case 19
Mixed to (Standard + MADI)
In the case of mixed input (standard, disembedder, or MADI), audio is extracted from the various
inputs according to the breakaway specified by the operator. If there are standard inputs among
the mix, a disembedder in the DHP core is required to extract the audio from each one.
The audio from the various sources is routed through the TDM matrix to the ports designated by
the operator. Some of the audio can be directed to MADI output and some to the standard
output, depending on the level set of the destination.
(Because the embedder card supports 16 audio channels, this scenario could potentially have
up to 16 input sources of various kinds.)
Multiple MADI ports can be routed in a single take insofar as they are combined in the level set
of the (audio) destination.
In
Std In
Std Out
MADI In
DIS
DIS
MADI Out
MADI Out
In
Std In
Std Out MADI In
Std Out
Std In
DIS
DIS
EMB
