Reference Manual
A-H, Case 1
Standard to Standard

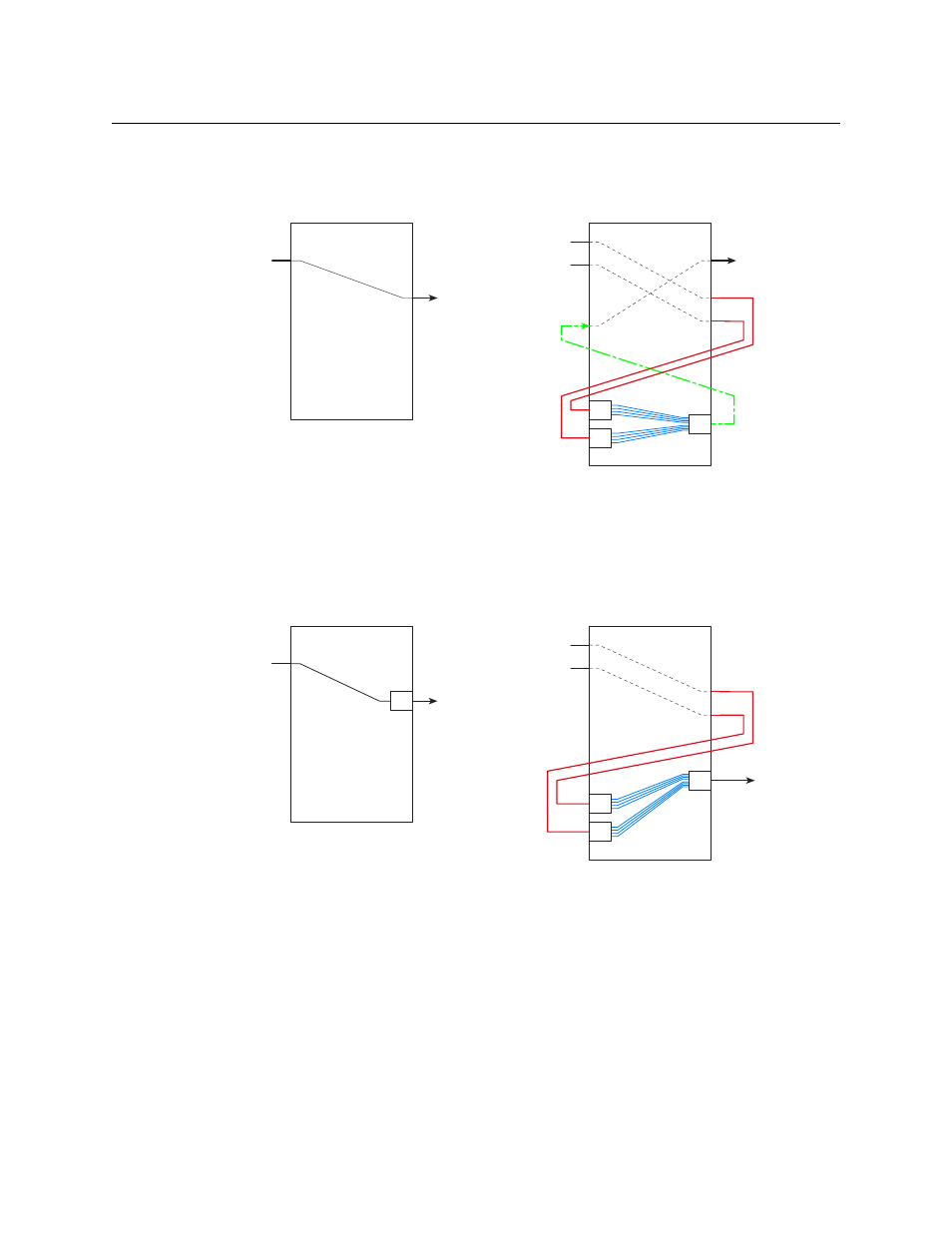

In the simple case (no audio shuffling requested), the signal will pass straight through the
router.
When audio signals are drawn from two (or more) sources, the audio must be disembedded,
combined as the operator requested, and re-embedded.
A-I, Case 2
Standard to Embedder
In the simple case (no audio shuffling requested), the signal will pass straight through the
router.
When audio signals are drawn from two (or more) sources, the audio must be disembedded,
combined as the operator requested, and re-embedded.
The embedder port — chosen by the operator — is not part of the DHP core.
 The embedder port can accept video that already has embedded audio and output that
video without further processing.
Std In
Std Out
Std In
Std Out
Std In
Std Out
Std Out
Std In
DIS
DIS
EMB
No audio shuffling — DHP
core not used
Audio shuffling
Std In
EMB
Std In
Std Out
Std In
Std Out
EMB
DIS
DIS No audio shuffling — DHP
core not used
Audio shuffling
