DHP Service
Examples

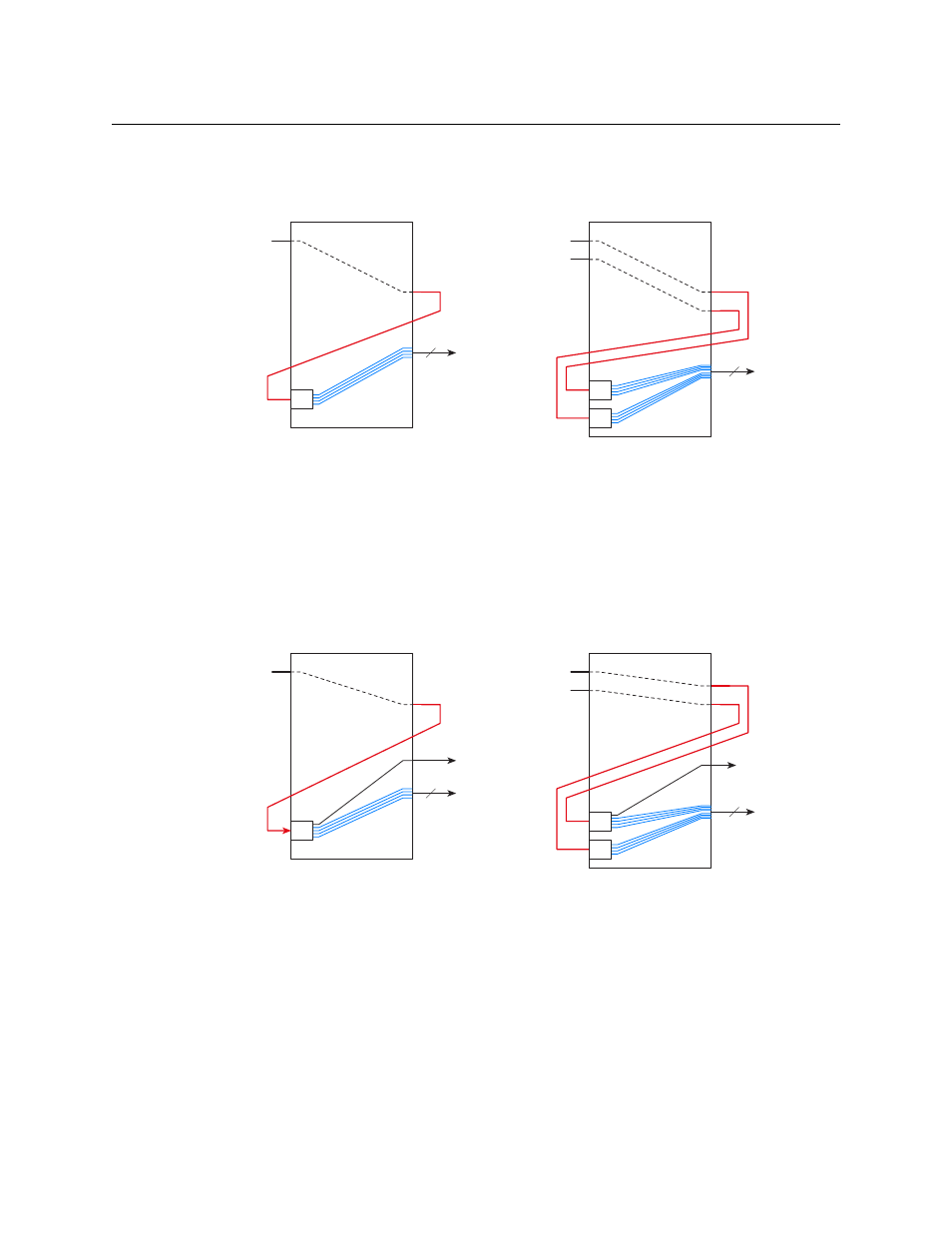

A-J, Case 3
Standard to MADI
A disembedder extracts the audio from the standard input. The audio is then distributed,
through the TDM matrix, to the necessary MADI ports.
When audio signals are drawn from two (or more) sources, two (or more) disembedder ports are
required.
Multiple MADI ports can be routed in a single take insofar as they are combined in the level set
of the (audio) destination.
The video from the standard input(s) is ignored.
A-K, Case 4
Standard to (Standard + MADI)
A disembedder extracts the audio from the standard input. The audio is then distributed,
through the TDM matrix, to the necessary MADI ports.
When audio signals are drawn from two (or more) sources, two (or more) disembedder ports are
required.
The video signal (from one of the sources) is routed through the disembedder to the specified
standard output.
