31
DHP
Reference Manual
Multiple MADI ports can be routed in a single take insofar as they are combined in the level set
of the (audio) destination.

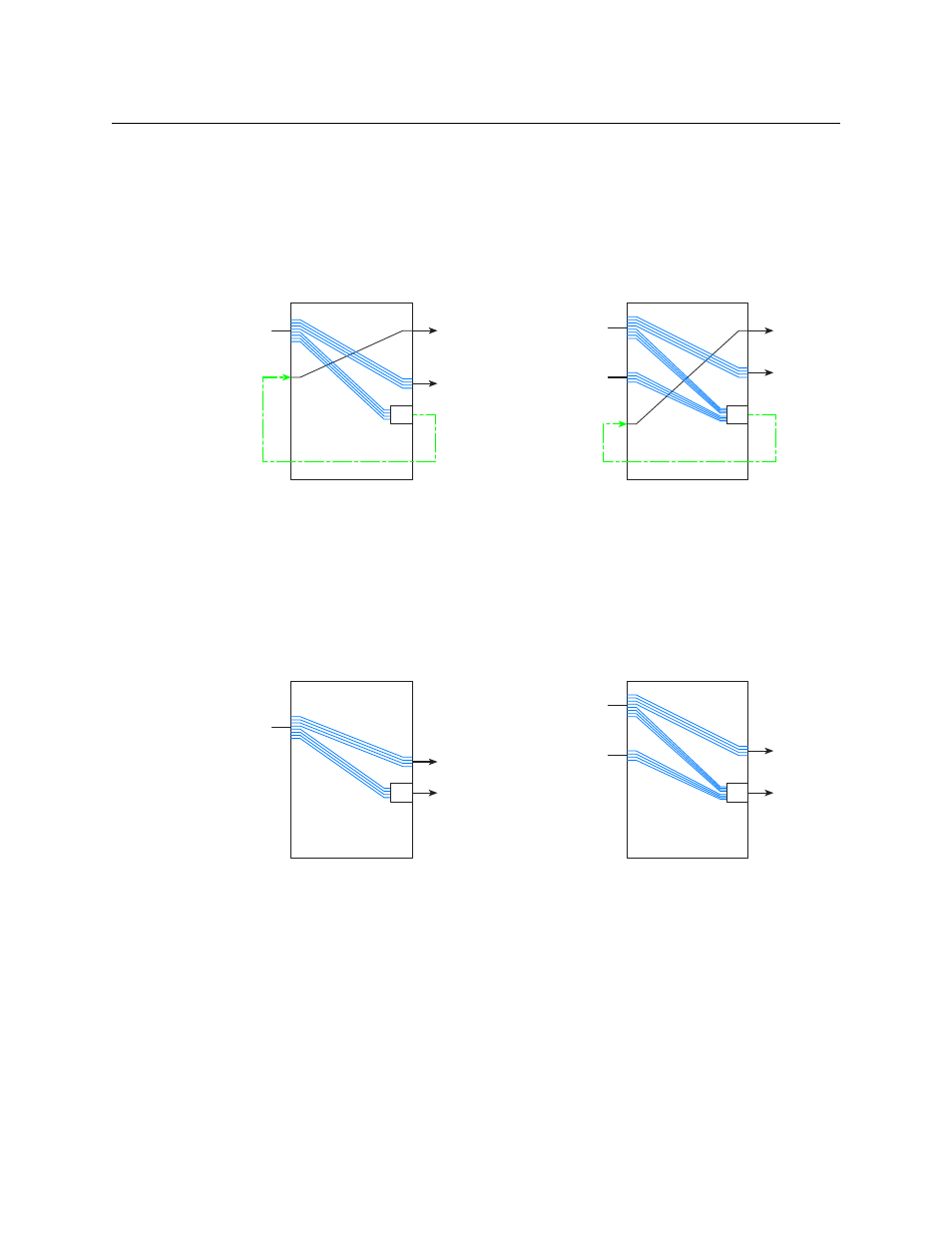

C-K, Case 14
MADI to (Standard + MADI)
The destination can include a video port, one or more embedded audio channels, and one or
more MADI ports. The embedded audio channels and the MADI ports (identified by the take’s
destination) receive the audio from the designated MADI input port(s) through the TDM matrix.
Audio signals can be drawn from two (or more) sources.
Some of the MADI inputs can be routed, through a DHP embedder, to a standard output.
The video signal at the standard output is not changed.
C-L, Case 15
MADI to (Embedder + MADI)
The destination can include a video port, one or more embedded audio channels, and one or
more MADI ports. The embedded audio channels and the MADI ports (identified by the take’s
destination) receive the audio from the designated MADI input port(s) through the TDM matrix.
Audio signals can be drawn from two (or more) sources.
The video signal at the embedder port is not changed.
The embedder port — chosen by the operator — is not part of the DHP core.
Std Out
Std In
MADI In
EMB
MADI In
MADI Out
MADI Out
MADI In Std Out
Std In
EMB
MADI In
EMB
MADI In
MADI Out
Out
MADI Out
MADI In
EMB Out
