29
DHP
Reference Manual

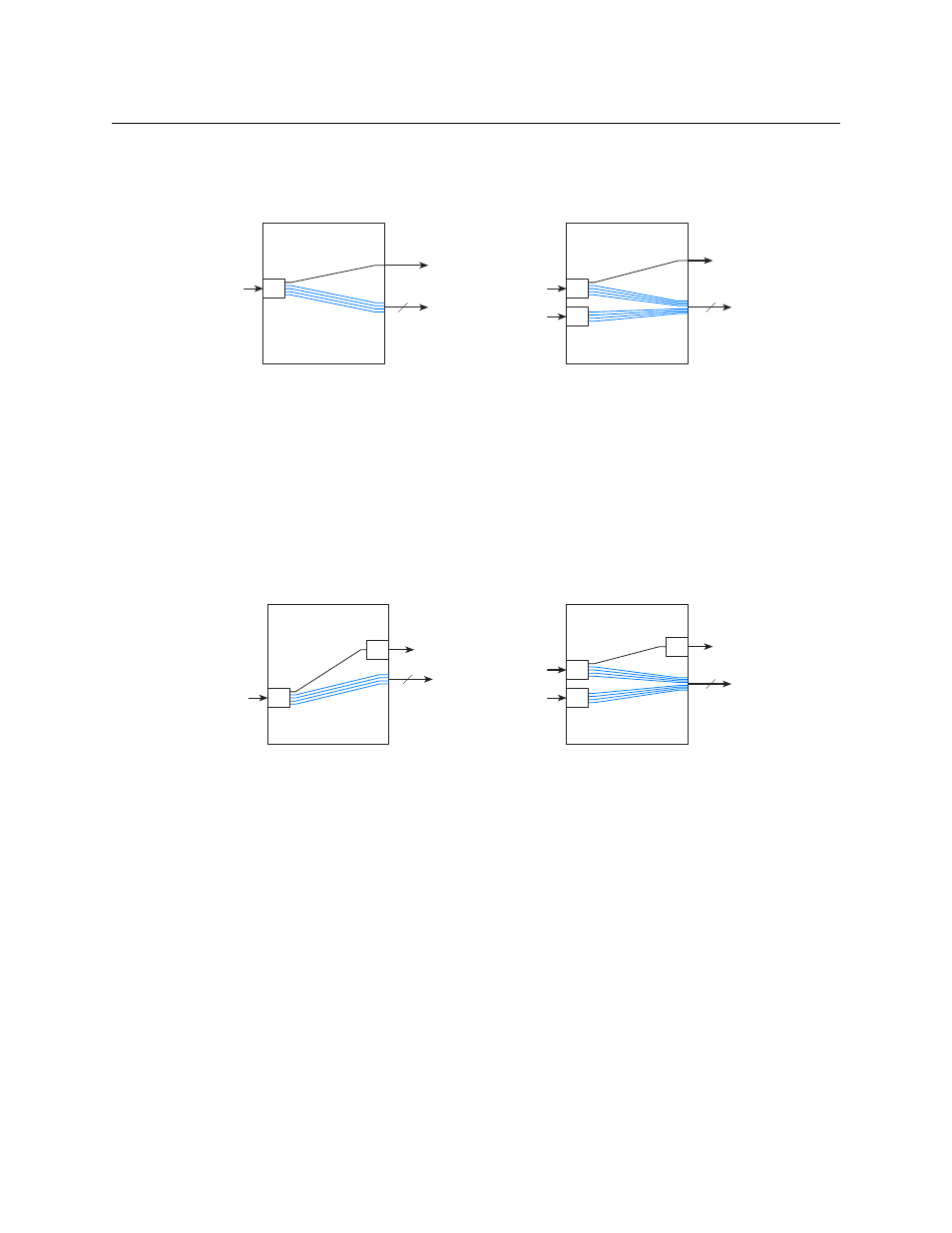

B-K, Case 9
Disembedder to (Standard + MADI)
A disembedder extracts the audio from its own input. The audio is then distributed, through the
TDM matrix, to the necessary MADI ports.
When audio signals are drawn from two (or more) sources, two (or more) disembedder ports are
required.
The video signal (from the designated source) is directed to the designated standard output.
Multiple MADI ports can be routed in a single take insofar as they are combined in the level set
of the (audio) destination.
The disembedder port(s) — chosen by the operator — are not part of the DHP core.
B-L, Case 10
Disembedder to (Embedder + MADI)
A disembedder extracts the audio from its own input. The audio is then distributed, through the
TDM matrix, to the necessary MADI ports.
When audio signals are drawn from two (or more) sources, two (or more) disembedder ports are
required.
The video signal (from the designated source) is directed to the designated embedder output.
The embedder port
— chosen by the operator — is not part of the DHP core.
Multiple MADI ports can be routed in a single take insofar as they are combined in the level set
of the (audio) destination.
The disembedder port(s) and embedder port — chosen by the operator — are not part of the
DHP core.
Std Out
In
MADI Out
DIS In
MADI Out
In DIS
Std Out
DIS
In
MADI Out
DIS
EMB
In
MADI Out
In DIS
DIS
EMB
