DHP
Reference Manual
[5]
Audio for Standard Inputs and Outputs
You must explicitly specify the audio levels for each standard input and for each standard
output. Each standard video input can have up to 16 embedded audio channels. The same is
true for standard video output.

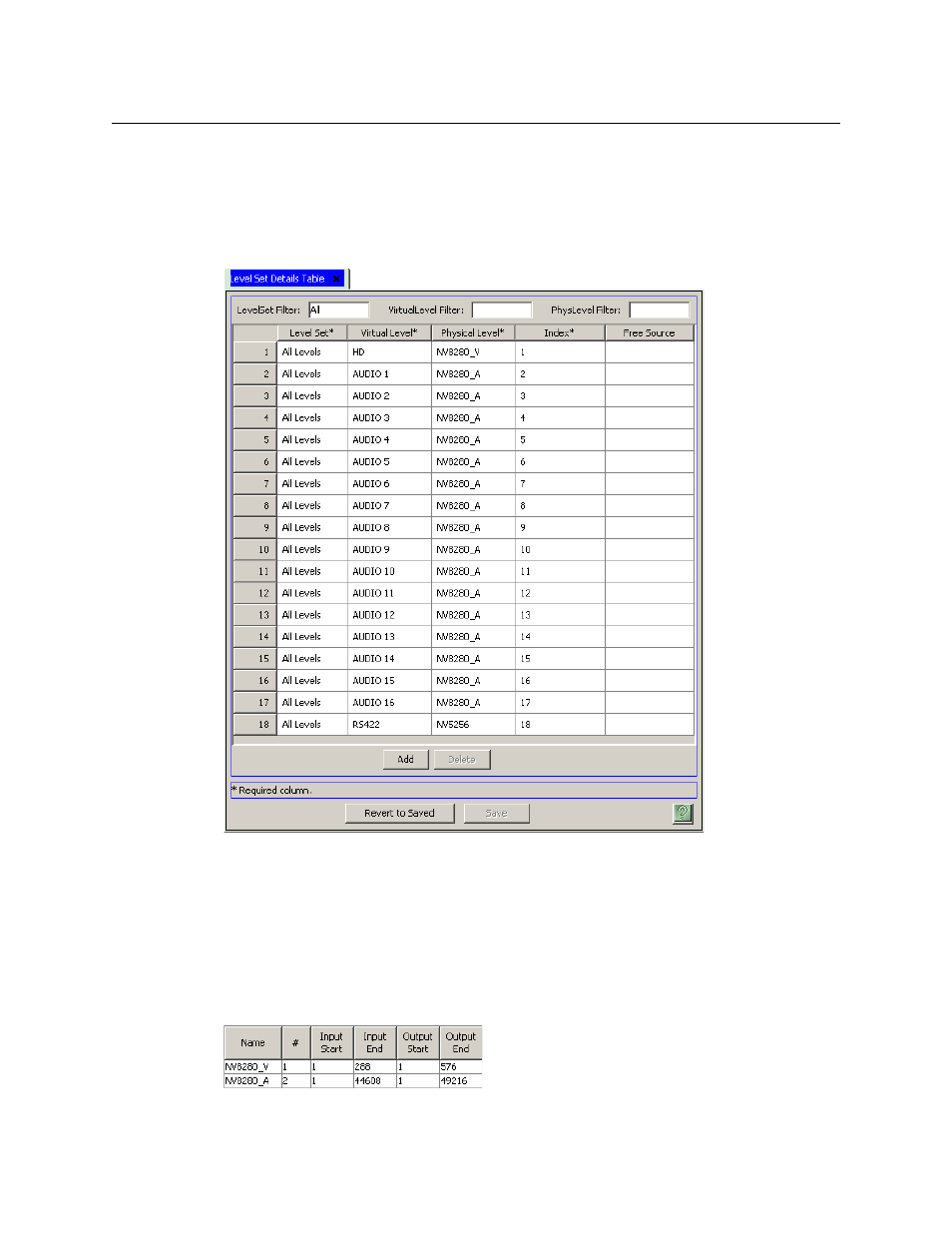

Define a level set that includes as many audio levels as you need. This is a typical example:
Typically, this level set would be the same level set you use for hybrid inputs and outputs.
[6]
MADI Port Numbering
For a router that has DHP and MADI cards, you must add 40,000 to all MADI port numbers.
Further, you must add 40,000 to the size of the router’s audio matrix. You must do this in
NV9000-SE Utilities, but not in MRC.
Go to the router’s detail page to change the audio matrix size. Here is the an example for an
NV8280:
The audio matrix here was 4608 × 9216, and still
is in reality.
