52 KAM-DEC-2AES Instruction Manual
KAM-DEC-2AES Links and Web Pages
AES Outputs Web Page
Use the AES Outputs web page ( Figure 31 ) to do the following:
• Select audio pairs for output to the assigned audio connectors (refer to
Input/Output Configuration Web Page on page 27 for connector informa-
tion and audio signal name assignment).
• Status reporting on this page will show the following:
• Whether Unbalanced or Balanced audio outputs are enabled (set on
Input/Output Configuration Web Page on page 27 ),
• Output Sample Rate for the AES outputs,
• Output resolution as selected on the Audio Processing Web Page on
page 50 . A link to this page is provided on the web page.

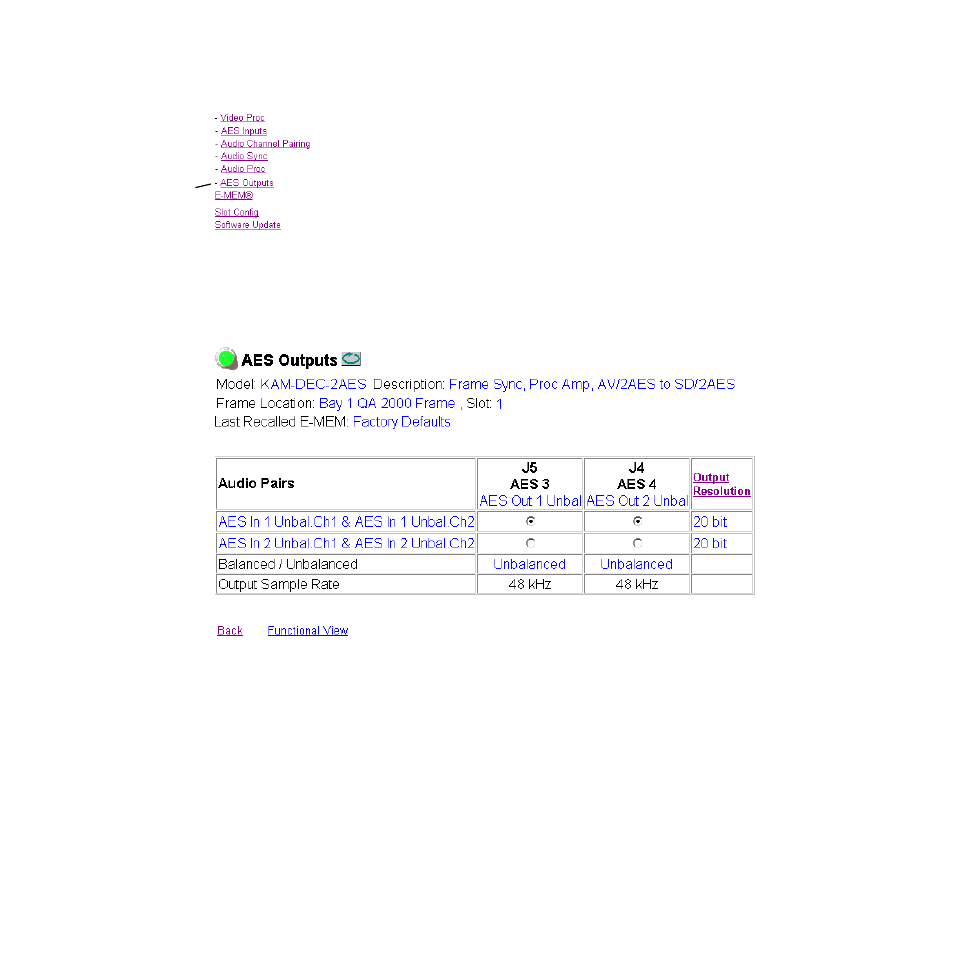

Figure 31. AES Outputs Web Page
Use
this
link
