KAM-DEC-2AES Links and Web Pages
• FAULT - DS1803 not responding (digital potentiometer for video in
adjustment)
• FAULT - TMC22051A not responding (composite input decoder)
• Internal Error - Unknown front module type
Input/Output Configuration Web Page
Use the I/O Config web page to:
• View a graphical overview of the currently installed rear module con-
nectors,
• See signal status of inputs,
• Assign easily recognized signal names that will help later in the config-
uration process.
Figure 12 illustrates the I/O Config web page for the KAM-AES-R passive
rear module required for the KAM-DEC-2AES front module with unbal-
anced audio inputs and outputs selected.
Note Only the selected AES inputs are valid. Unconfigured AES inputs are invalid
and should not be used.

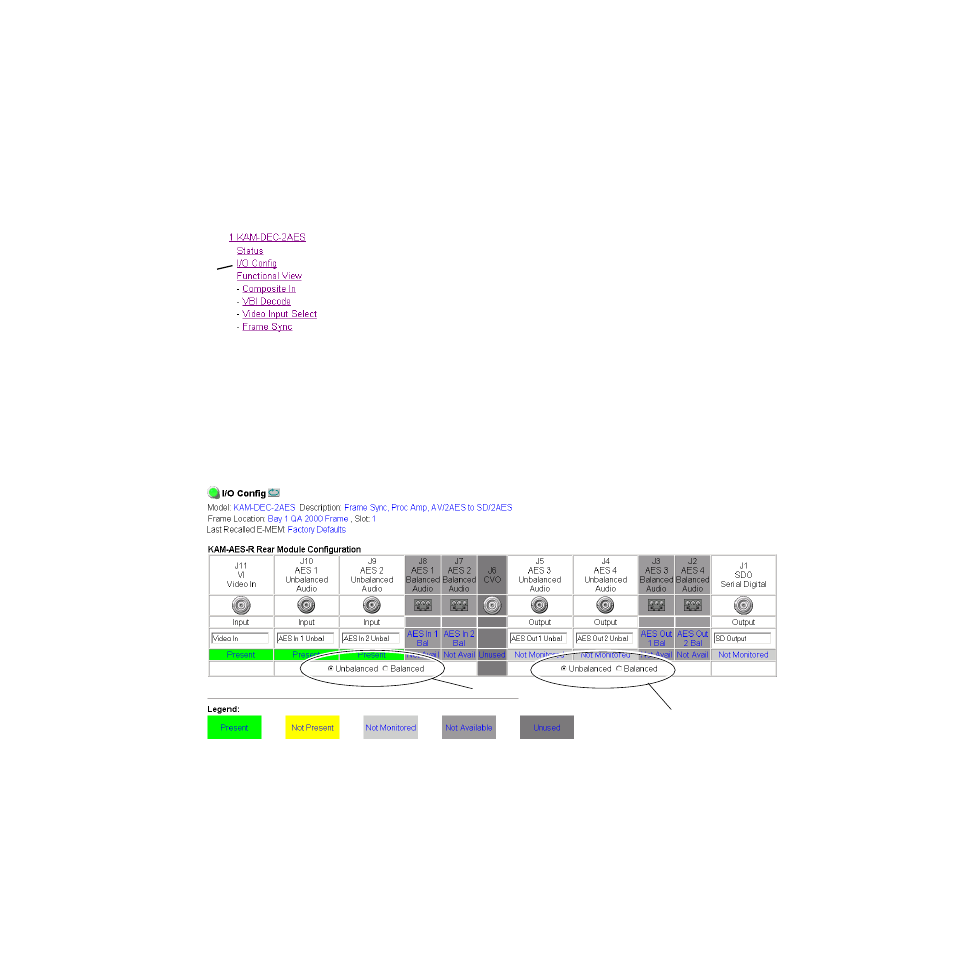

Figure 12. KAM-AES-R Rear Module Configuration Web Page (Unbalanced Audio In)
Use
this
link
Select AES input type
Select AES output type
