Gecko Frames — Instruction Manual 37
Module and Power Supply Installation
Power Supply Installation
The frame will come with a single Gecko 100 Watt power supply installed
in one of the slots on the far right. The currently shipping 100W Gecko
Frame power supply with a proctective front cover is similar to the one
shown in
Figure 9 .
If you have ordered a redundant power supply, install it in the empty cell
on the far right of the frame (see the location drawing in
Figure 8 on
page 36 ), making sure the ejector tab locks into place.
Note Power supplies used in the 8900 Gecko frames (8900TF/TFN-A/-V) and the
ones used in the GeckoFlex frames cannot be swapped. They are different
lengths.

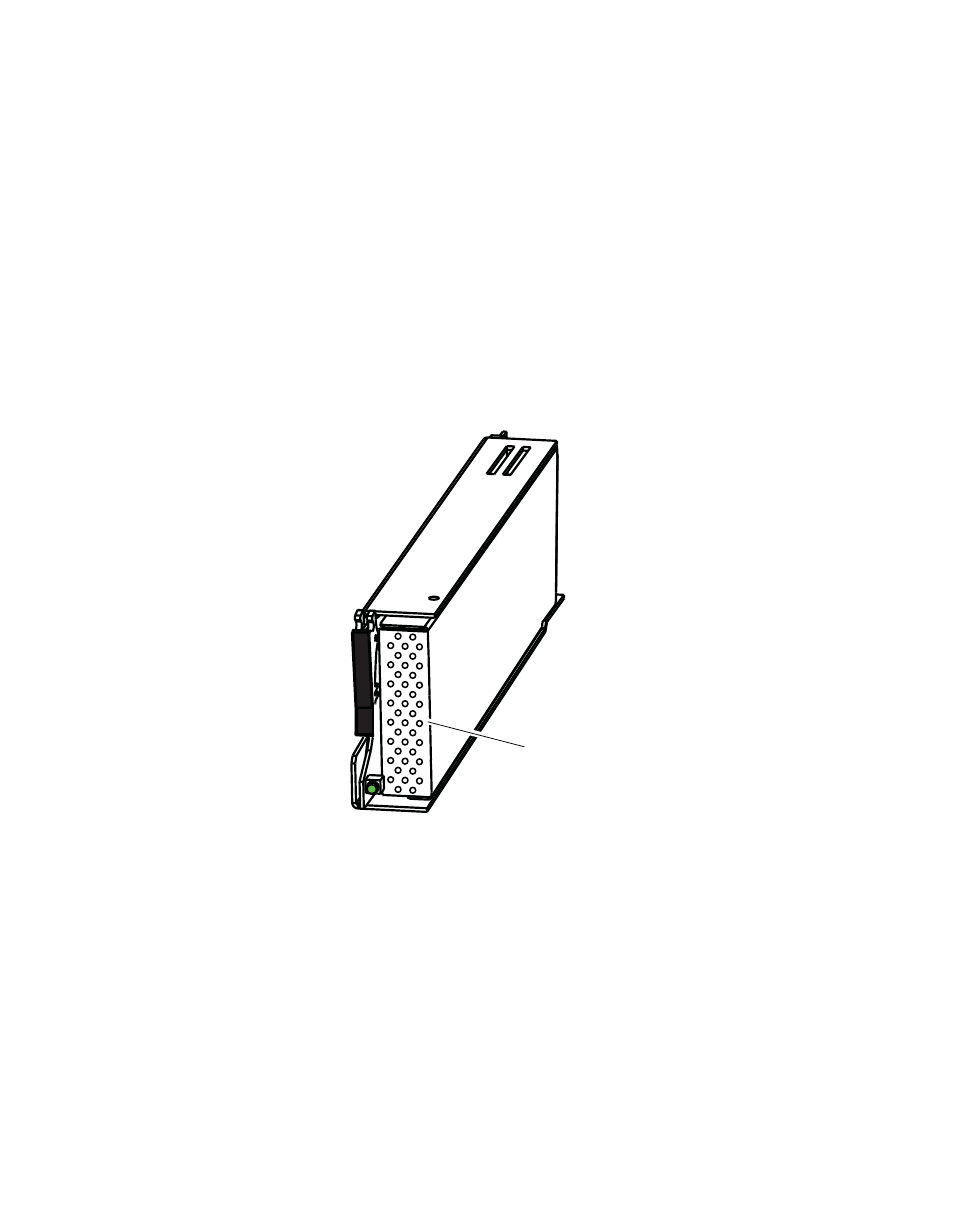

Figure 9. Power Supply Installation
Gecko 100 Watt Power Supply
0636_25
Protective cover
