Gecko Frames — Instruction Manual 35
Section
2
Installation
Introduction
This section contains information about:
• Rack mounting the frame,
• Module and Power Supply installation,
• Rear connectors, and
• Frame Alarm.
Rack Mounting the Frame
After carefully unpacking this equipment, check the box for a power cords
and other hardware, and examine the equipment for damage. Any damage
should be promptly reported to the carrier.
The frame is designed to mount in a standard 19-inch equipment rack.
Mounting space of 3.5 inches (89 mm) vertically and mounting depth of 14
inches (356 mm) are required. Mount the frame in a standard 19-inch rack
using customer-supplied rack mounting screws.
CAUTION Before lifting the frame, verify that the power supplies are fully seated in their
slots. Front ejector tabs should click into place when snapped on the locking
pin on the module (see
Figure 7 ).

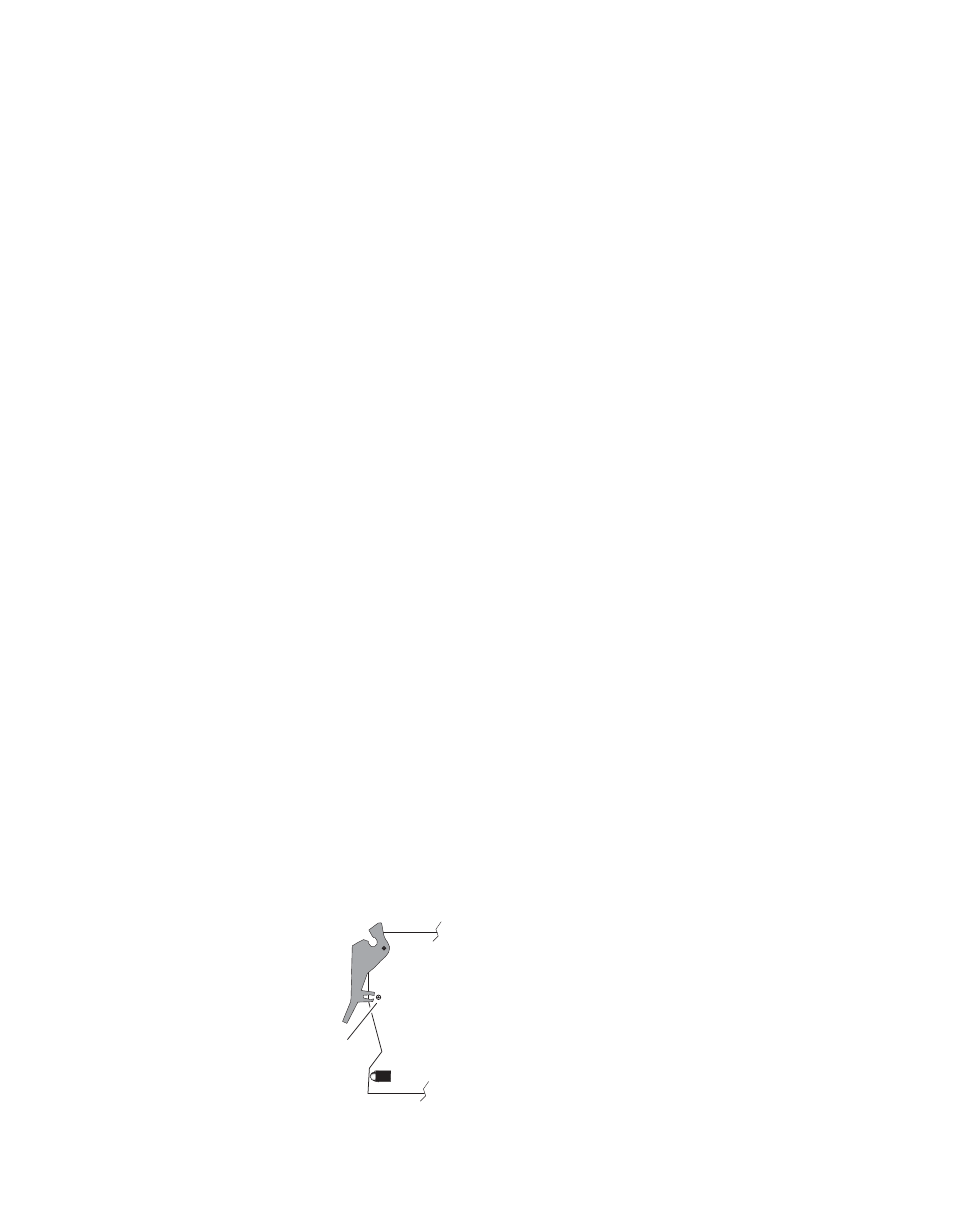

Figure 7. Power Supply Ejector Tab Locking Pin
0636 -13
Ejector
tab
lock pin
