6.1.3 Dolby Digital tab
The Decoder to Proc Channel Assignment section indicates the
output channel assignment. The Main Output sub-section shows
channels assignment related to the Program Configuration.
The Dolby Digital Status section indicates status information for the
Dolby Digital bitstream selected at the bottom of the Control tab:
• Coding Mode
• Data Rate
• Bitstream Mode
• Dialnorm value
• Dolby Surround Mode
• Surround EX Mode
• Preferred Stereo Downmix Mode.
6.1.4 PCM tab
The PCM tab section indicates the output audio assignment of the
Dolby Decoder module when its input is a PCM signal.
.

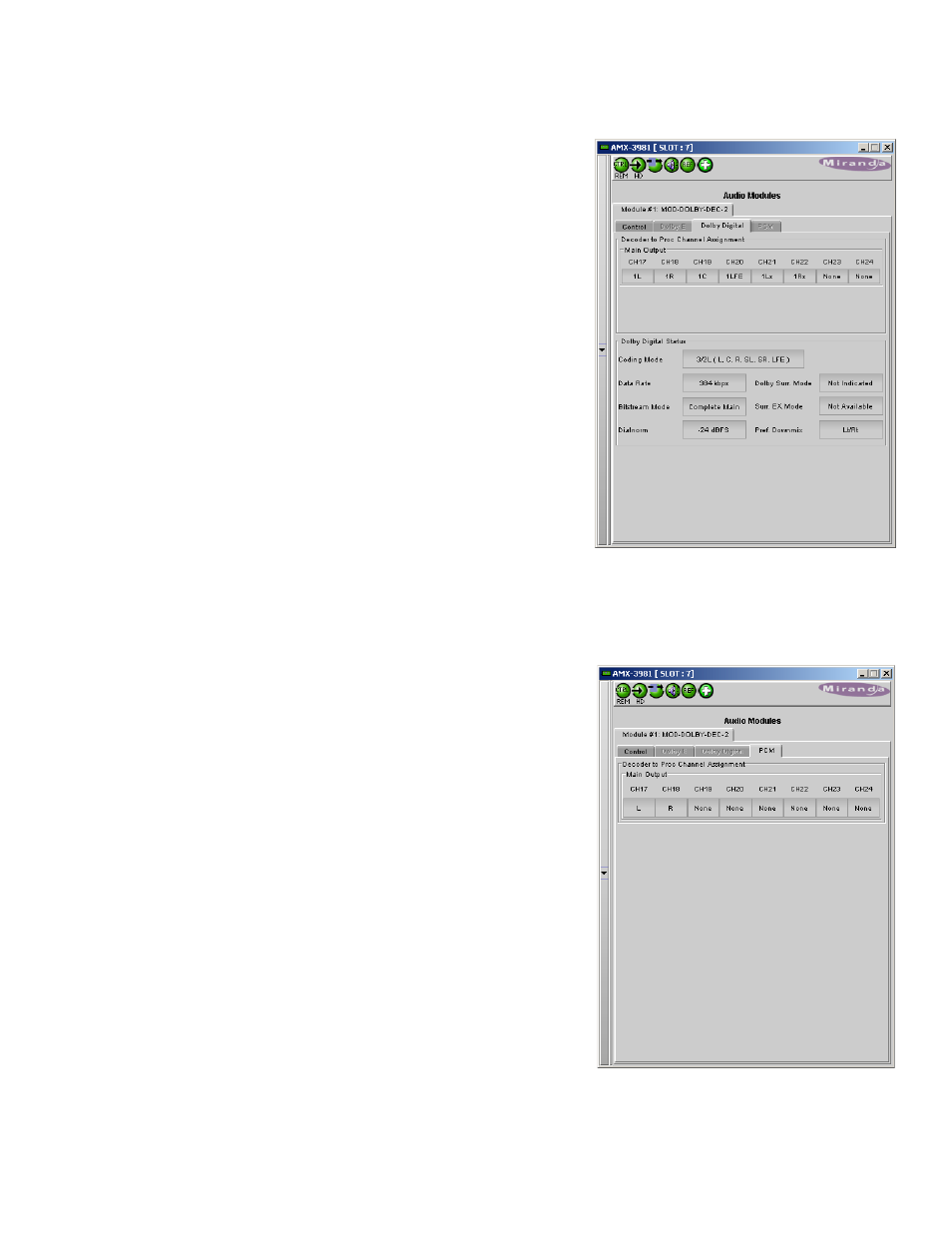

Figure 6.3 Dolby E and Dolby Digital
decoder - Dolby Digital tab
Figure 6.4 Dolby E and Dolby Digital
decoder - PCM tab
