5.18 Info panel
When the AMX-3981 is included in an iControl environment, certain information about the card should be available to
the iControl system. The user can enter labels and comments that will make this card easy to identify in a complex
setup. This information is entered into data boxes in the Info control panel.
Rear Type:
specifies the rear module currently
installed.
Optic Fiber Module: Identifies the optic fiber module currently
inserted in the fiber module socket on
the rear panel (only if installed).
Audio Module:
Identifies the audio module currently
installed on the AMX-3981, if any.
Label:
type the label that is shown for this
AMX-3981 when it appears in iControl
applications
Short Label
type the short-form label that iControl
uses in some cases (8 characters)
Source ID
type a descriptive name for this AMX-
3981
Comments:
type any desired text
The remaining data boxes show manufacturing information
about this card.
Three buttons in the panel give access to other information.
• Details…: Reports the Firmware version, service version, and
panel version for this card
• Advanced…: Shows the Miranda LongID for this card. The Miranda
LongID is the address of this AMX-3981 in the iControl network.
Figure 5.70 Advanced window

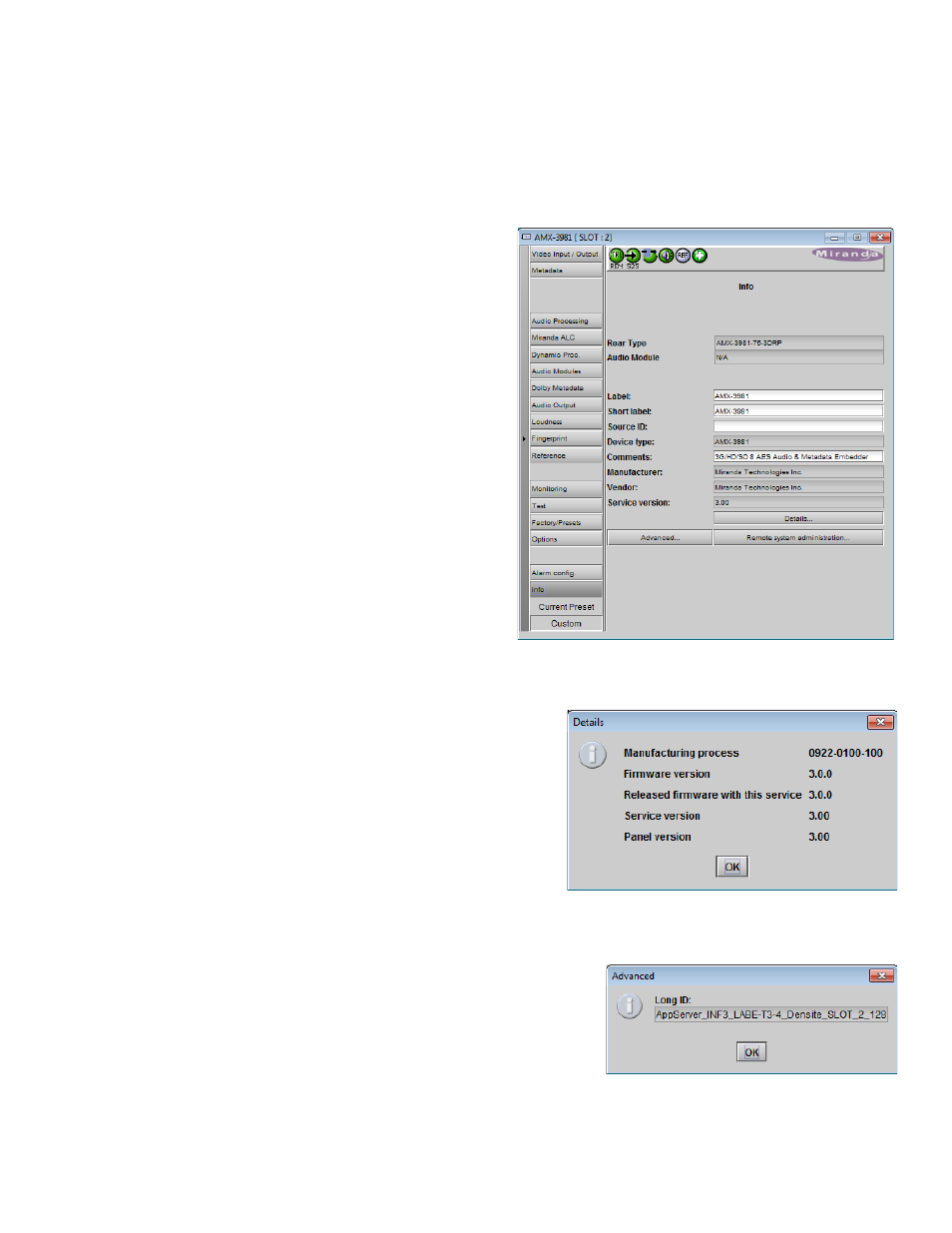

Figure 5.68 Info panel
Figure 5.69 Details window
