GUIDE TO INSTALLATION AND OPERATION
56 | AMX-3981
250 ms.

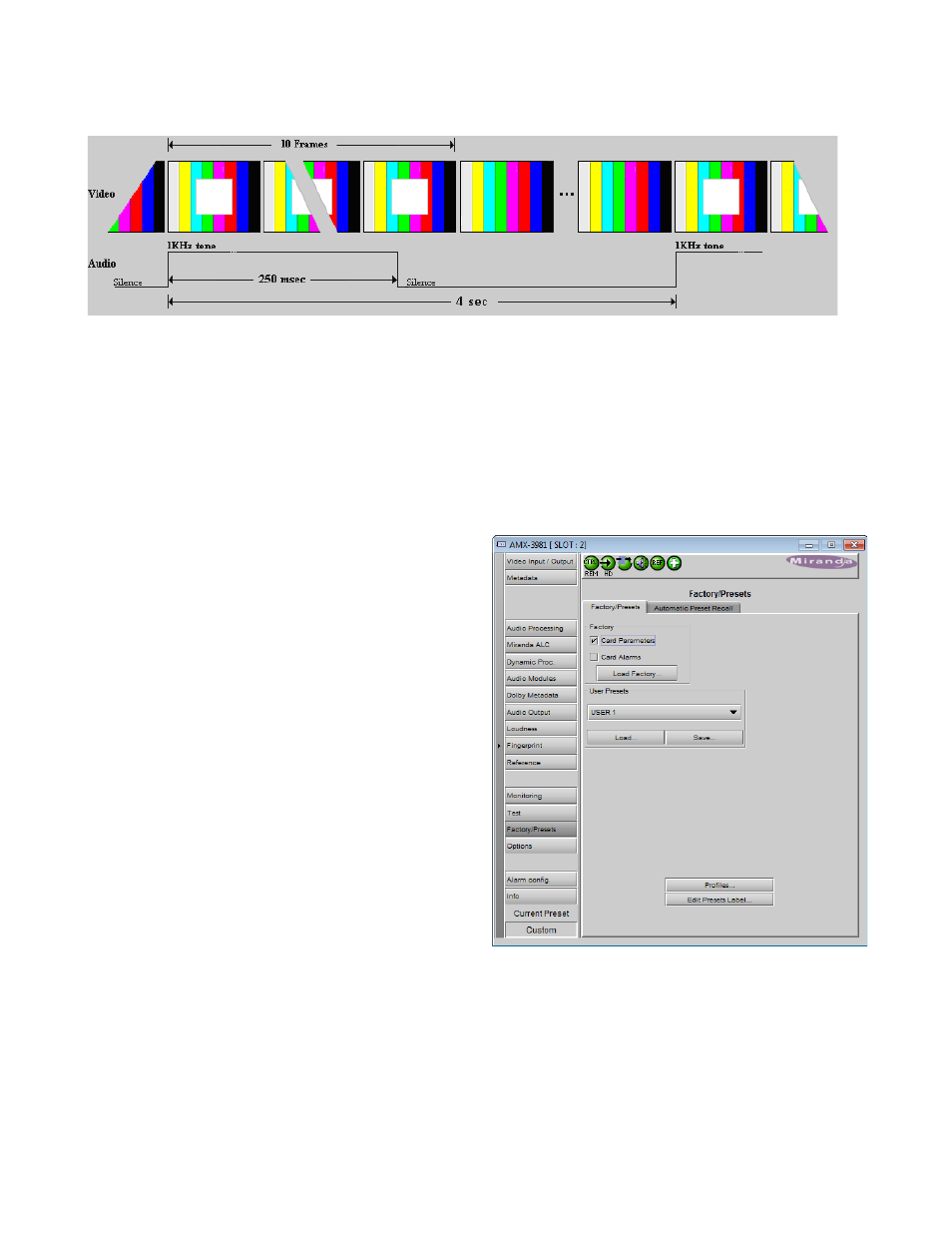

Figure 5.51 Lip Sync test signal appearance and timing
5.15 Factory/Presets panel
5.15.1 Factory/Presets tab
Factory Section
Load Factory: Clicking this button will restore the card to a
factory default state. Two checkboxes enable the user to
choose whether to include Parameters and/or Alarms in the
restoration process
• Note that User Presets are not changed
User Presets section
The AMX-3981 has memory registers which can hold up to 5
user-defined parameter settings.
The Current Preset box (at the bottom left corner of the
panel) displays the last loaded preset. Any change to the
card configuration after a preset is loaded will change the
display to "Custom" instead of the preset value.
Select any one of the five presets using the pull-down list.
The name of the currently-selected User Preset is shown on
the pulldown box.
Click Load to load the contents of the selected User Preset
into the AMX-3981. All parameter settings and values will be
replaced by the contents of the selected User Preset.
• The first 4 user presets can be recalled by GPI User
Preset 1 to 4.
Click Save to store the current parameter settings and values
from the AMX-3981 into the selected User Preset. The existing contents of the preset will be overwritten.
Figure 5.52 Factory / Presets panel
