GUIDE TO INSTALLATION AND OPERATION
AMX-3981 | 59
Save Profile to Disk…
Click this button to open a Save dialog allowing you to specify a
file name and location to which the selected profiles for this
card will be saved.
Hint - It is a good idea to create a folder for these files, because
they are not explicitly identified as AMX-3981 profiles, and will
be difficult to find and identify if not clearly named and
conveniently located.
• Click the save button once the name and location have
been identified in the Save box
• If the file is saved correctly, the Transfer Status box on
the right of the Copy profile from line will indicate
Succeeded against a green background:
• If the file was not saved for some reason, the Transfer
Status box to the right of the Copy profile from line will
indicate Failed against a red background:
Restore profiles from disk…
Click this button to open an Open dialog box within which you
can locate and select a valid AMX-3981 profile file.
• Click Open to read the contents of the file and to
reconfigure this AMX-3981’s profiles according to its
contents
• While the reconfiguration is in progress, the Transfer
Status box on the right of the Copy profile from line will
indicate Working against a yellow background
• When the reconfiguration is complete, the Transfer Status
box on the right of the Copy profile from line will indicate
Succeeded against a green background
Copy profile to
This line shows other AMX-3981 cards that are available on the iControl network, each identified by App server,
Densité frame and slot number, card type and firmware version.
The Profile column shows the same information as is shown for the current card in the Copy profile from line, i.e. one
of the following:
• Current, User1, User2, User3, User4, User5, All
The Select column includes a checkbox to identify the AMX-3981 cards onto which you will copy profiles from the
current card.
• For convenience, a Select all checkbox is provided in the column header

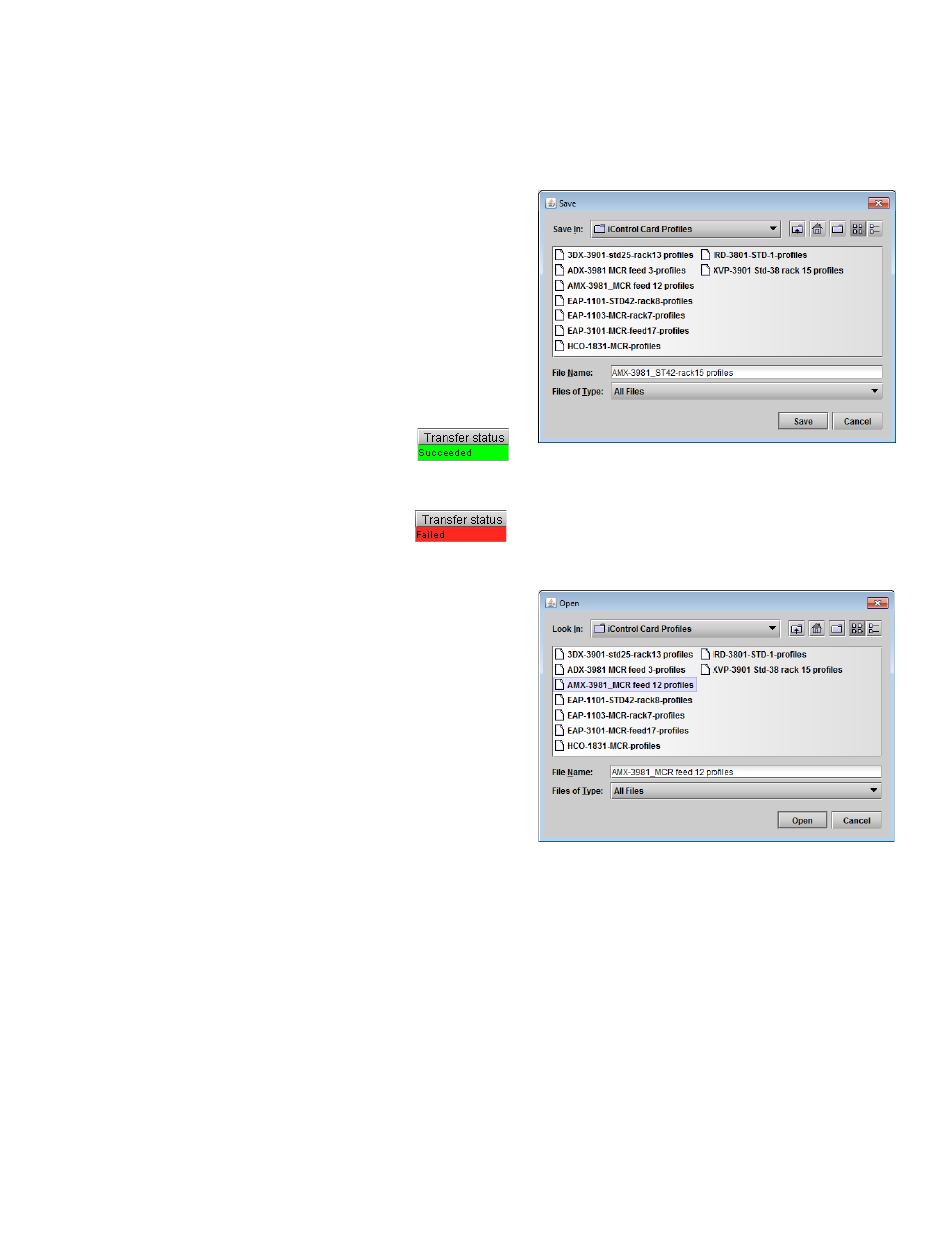

Figure 5.55 Save Profile to Disk dialog
Figure 5.56 Restore Profiles from Disk dialog
