5.8.1.2 [Config]
→
[Probe]
The Probe function allows the user to view information about the Metadata in the program stream. There are no
controls in this panel or its subpanels, except for the program select buttons.
The Probe section at the left of the panel shows information about the data stream in the metadata path.
• The two parameters at the top indicate the Program Configuration and the Video Frame Rate of the
Metadata bitstream.
• Depending on the Program configuration, one to eight programs are included in a Metadata bitstream. The
Program Select zone allows the selection of one Metadata program.
The text boxes below the program select buttons report on the data rate, coding mode and dialnorm value of the
selected program.
[Config]
→ [Probe] → [Audio Processing]
This panel reports the status of the audio
processing:
• DC Highpass Filter
• Bandwidth Lowpass Filter
• LFE Lowpass Filter
• Surround 90
o
Phase Shift
• Surround Channel Attenuator

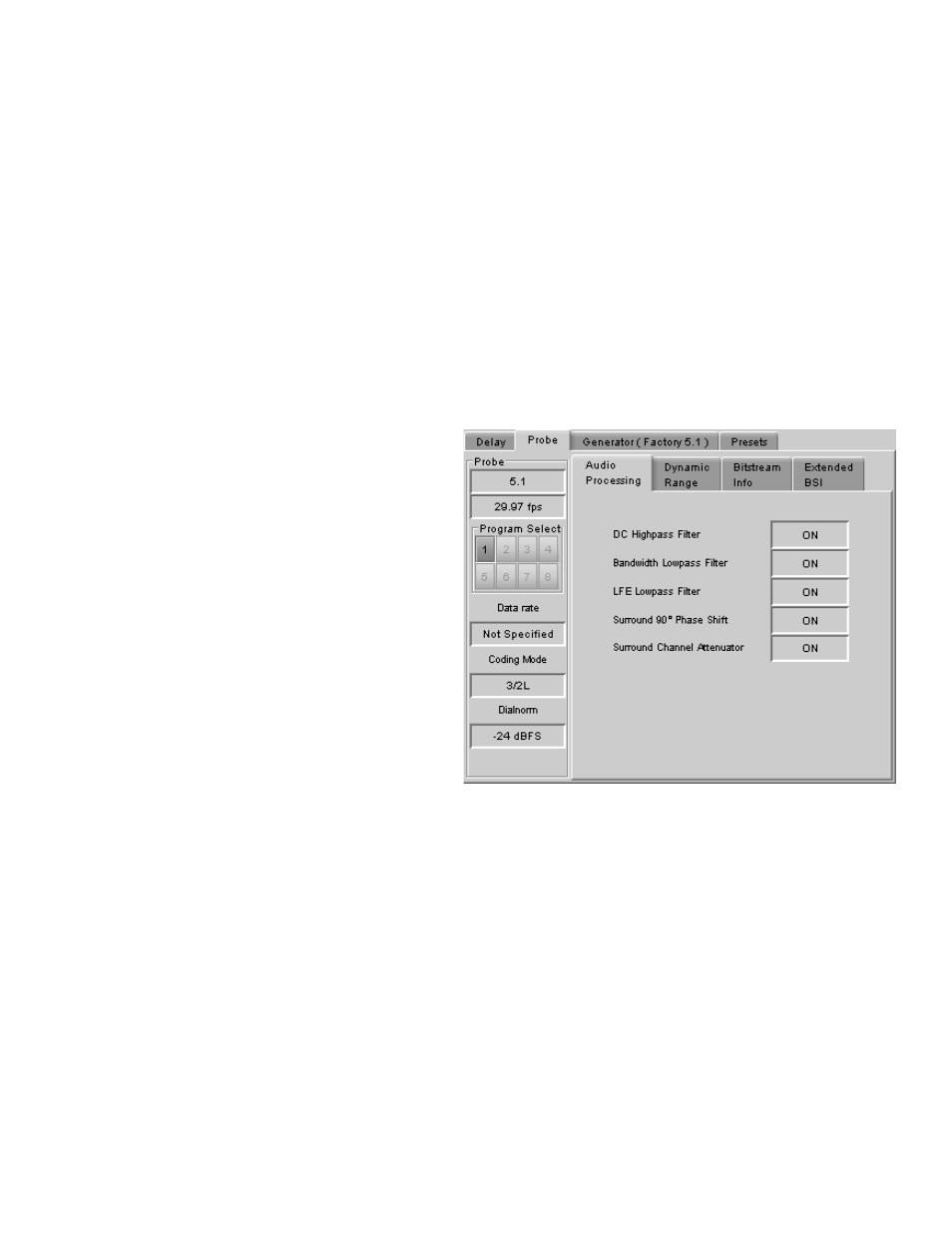

Figure 5.27 [Config]
→
[Probe]
→
[Audio Processing]
