36 8921DAC Instruction Manual
Configuration
To load a saved file from a location outside of the frame
1. Select the Load from ... button under File Operations.
This will bring up the Load Current Config page ( Figure 18 ).
2. Browse to the location of the file you wish to load and select the file.
Select the
Open button to load the file or enter the filename and path in
the Enter filename box.
3. Once the correct path and filename is loaded, select the Load button on
the Load E-MEM page.
4. This will place the recalled configuration from the file into a module
register.
5. Select Recall to apply the new settings.

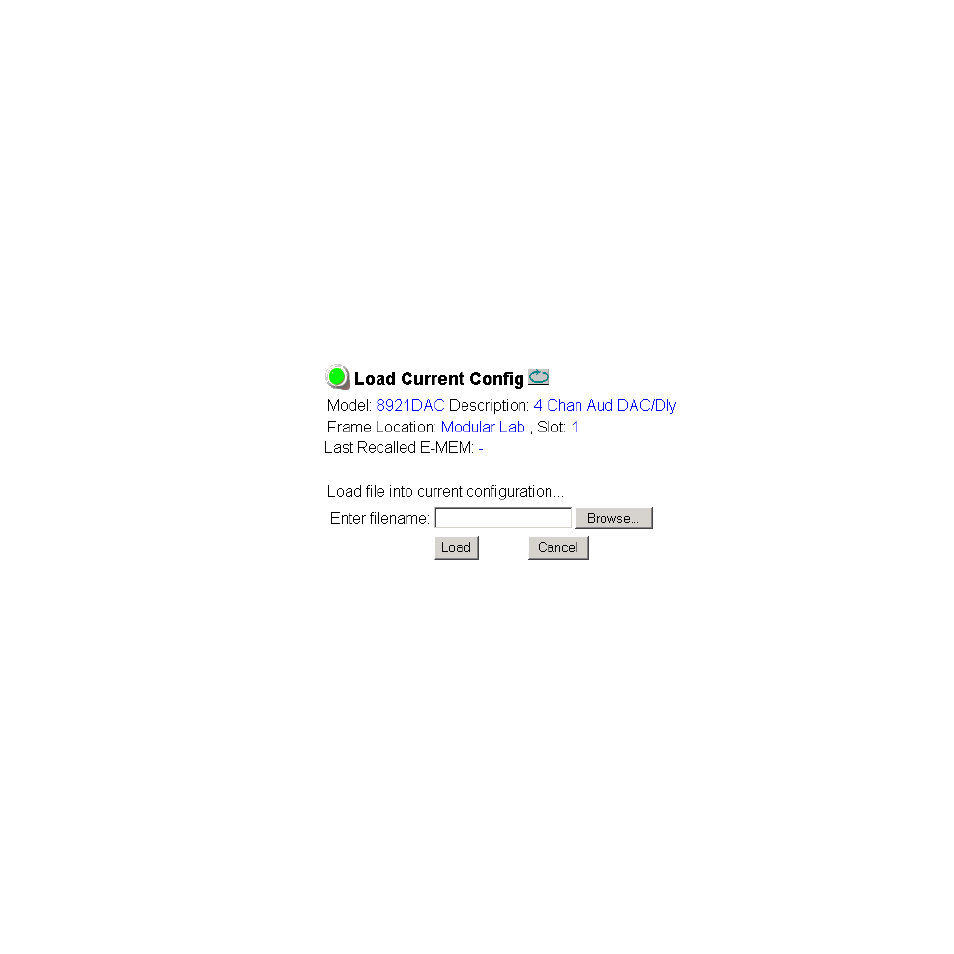

Figure 18. Load Current Config Page
Recall Defaults
Default settings for the module can be recalled by selecting the Recall
Defaults button. The defaults will revert to the settings given in the Default
column in Table 3 on page 17 .
