30 8921DAC Instruction Manual
Configuration
Audio Channel Pairing Web Page
The Audio Channel Pairing web page ( Figure 12 ) allows routing the four
AES audio input streams to be output on any of the four analog audio
output channels 1, 2, 3, and 4.
Assign each AES input audio stream from the list on the left to Channel 1,
2, 3, or 4 by clicking on the corresponding radio button under the channel
number. The default routing (AES 1 A to Channel 1, AES1 B to Channel 2,
AES2 A to Channel 3, and AES2 B to Channel 4) is shown in the example.

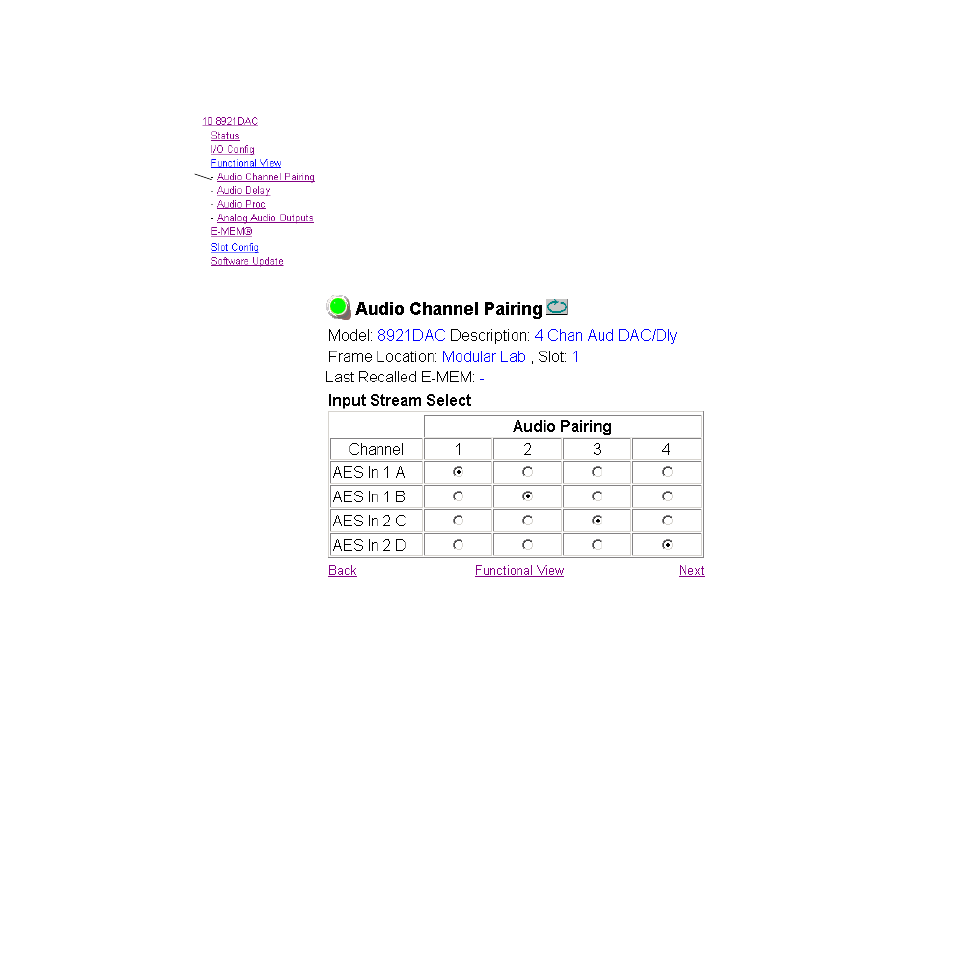

Figure 12. 8921DAC Audio Channel Pairing Web Page
