8921DAC Instruction Manual 33
Configuration
Analog Audio Outputs Web Page
Use the Analog Audio Outputs web page ( Figure 15 ) to set the maximum
output levels for Audio Out 1 – 4:
• Max Output Level – adjust the maximum output level in dBu for each
channel with the corresponding
Max Output Level controls.
Output levels can also be adjusted in pairs (Channel 1 and 2, Channel 3
and 4) by selecting the corresponding
Locked checkbox in the Max
Output Locking area and adjusting either Max Output Level control in the
pair. Level offsets between channels are preserved for each channel
(except when the limited are reached).

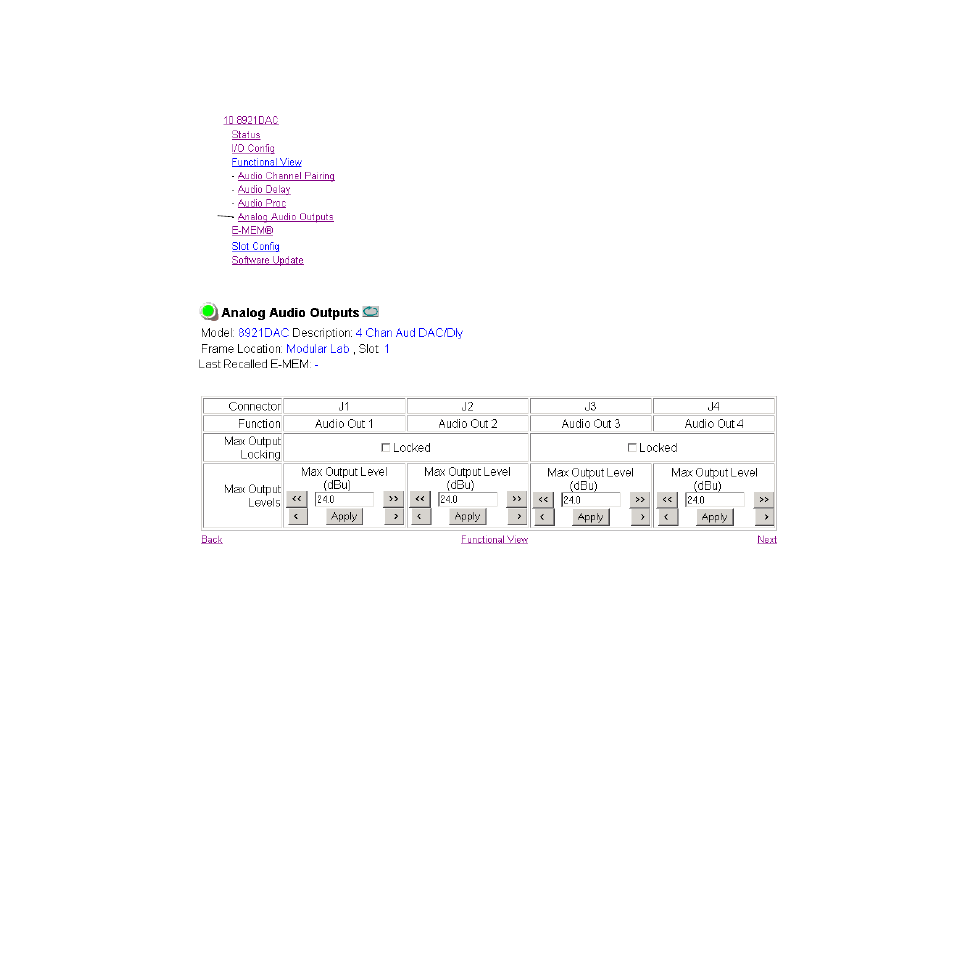

Figure 15. 8921DAC Analog Audio Outputs Web Page
