26 8921DAC Instruction Manual
Configuration
Status Web Page
The Status web page ( Figure 9 ) shows the signal status of the input AES 1
and AES 2 audio, AES outputs, analog audio outputs, and frame bus com-
munication. Color coding of the display indicates the signal status. Refer to
Status Monitoring on page 44 for an explanation of the color coding.
Information about the module, such as part number, serial number, asset
tag number, hardware revision and software and firmware versions are
given in a read-only section at the bottom of the display. Enabled options
are also reported if applicable.
Clicking on the underlined link for AES Input 1, AES Input 2, AES outputs,
or Analog Audio Outputs will take you to the I/O Config page.
Clicking on the 8921DAC model number in the center box will take you to
the Functional View page illustrating a block diagram overview of the
module with links to each of the configuration pages.

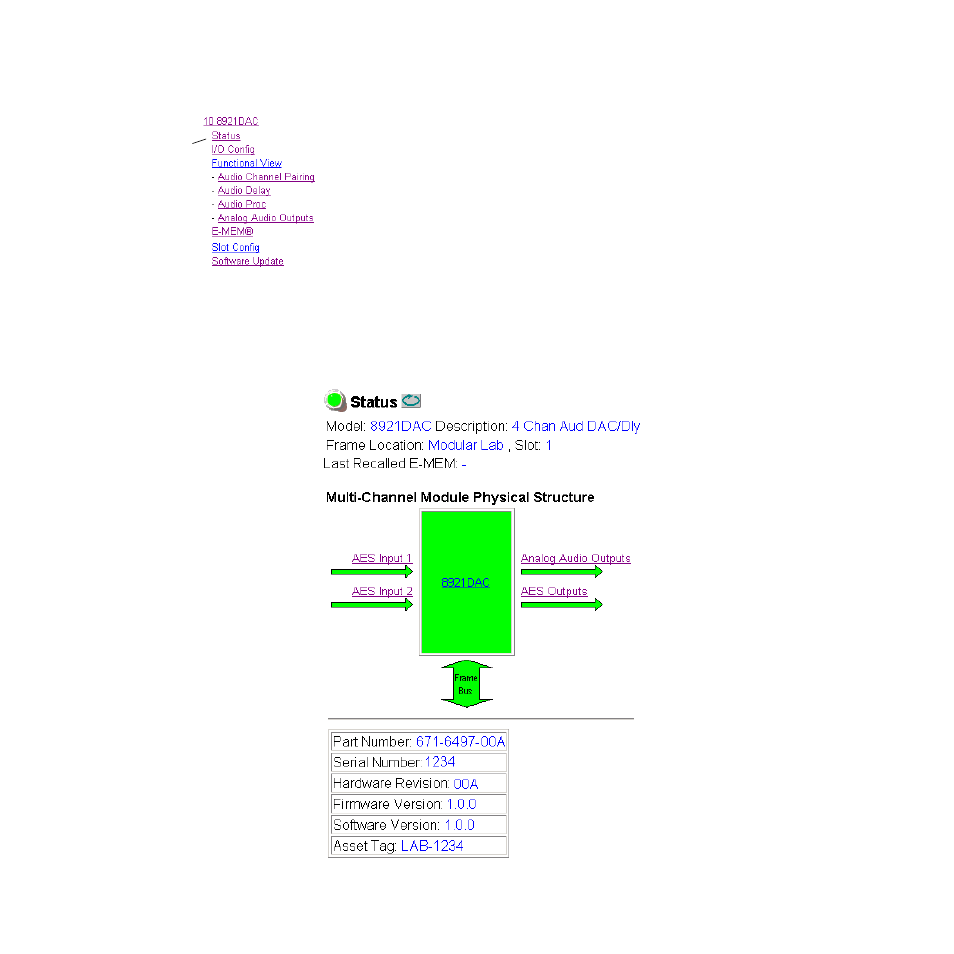

Figure 9. 8921DAC Status Page
Use
this
link
