28 8921DAC Instruction Manual
Configuration
Functional View Web Page

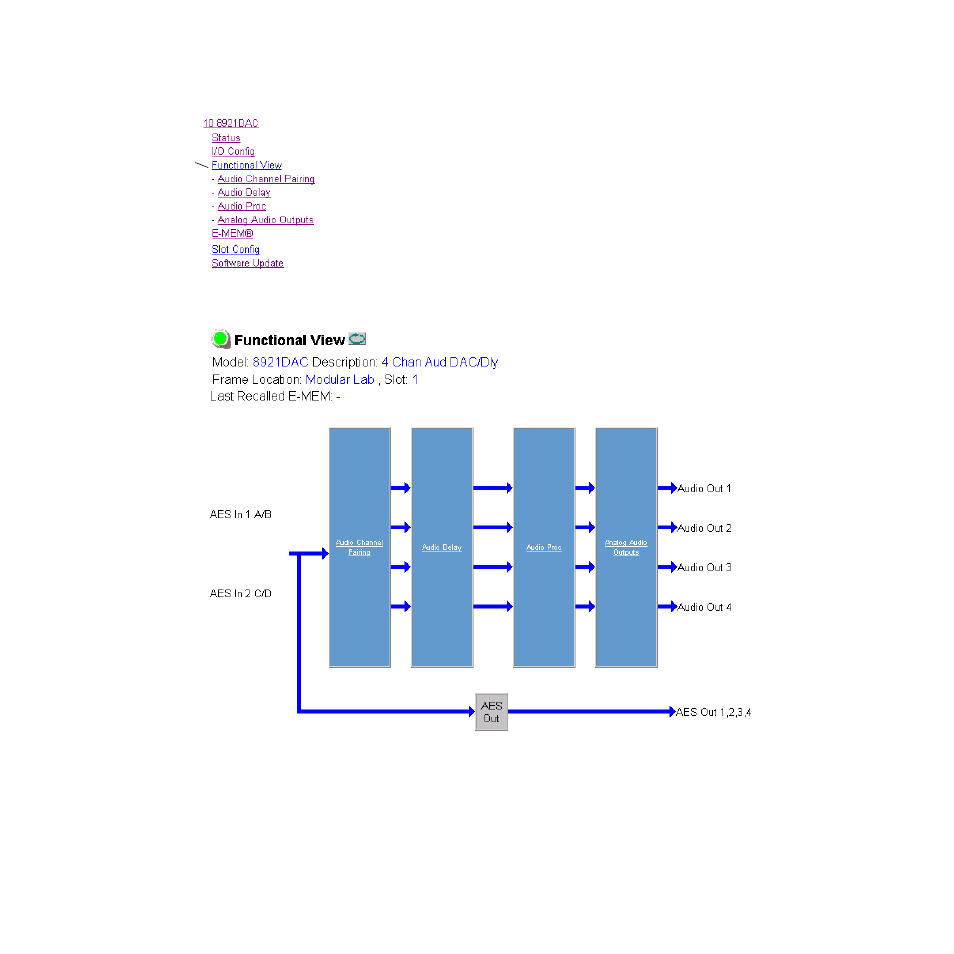

The Functional View web page ( Figure 11 ) illustrates a block diagram of the
8921DAC module showing module functions and signal paths that are
active or inactive in the current configuration. It can be used as a link map
for configuring module functions.
Color coding indicates active functions and signal flow. Grayed compo-
nents are inactive due to hardware and/or software constraints. Under-
lined module functions are links to the web page for that function.
Use the Functional View to configure the 8921DAC module in the order of
the signal flow. Refer to each of the module configuration web pages given
in the next section.
Figure 11. 8921DAC Functional View Web Page
Use
this
link
