OPERATION
Control and operation of the BrightEye 75 unit is performed from the front panel
or remotely from a networked PC with the BrightEye Control application.
Some control settings are only available with BrightEye PC or Mac. These parameters
cannot be monitored or controlled from the front panel.
Front Panel Controls and Indicators
The front panel of the converter, shown below, provides status and control indica-
tors for the module.
STATUS INDICATORS
The following status indicators are provided on the front panel:
In
Illuminates green when a valid analog video signal in the currently selected
format is detected on the corresponding BNC connector.
Ref (Reference)
Illuminates green when a valid NTSC or PAL reference is detected on the rear
panel
Ref In BNC connector.
Source Select
The currently selected video input format illuminates green.
TBC
Illuminates green when the TBC is enabled.
Vid Gain
Illuminates green when gain is set to its nominal or unity setting, or red when set
to other than unity.
Gain
Illuminates green when gain is set to its nominal or unity setting, or red when set
to other than unity.

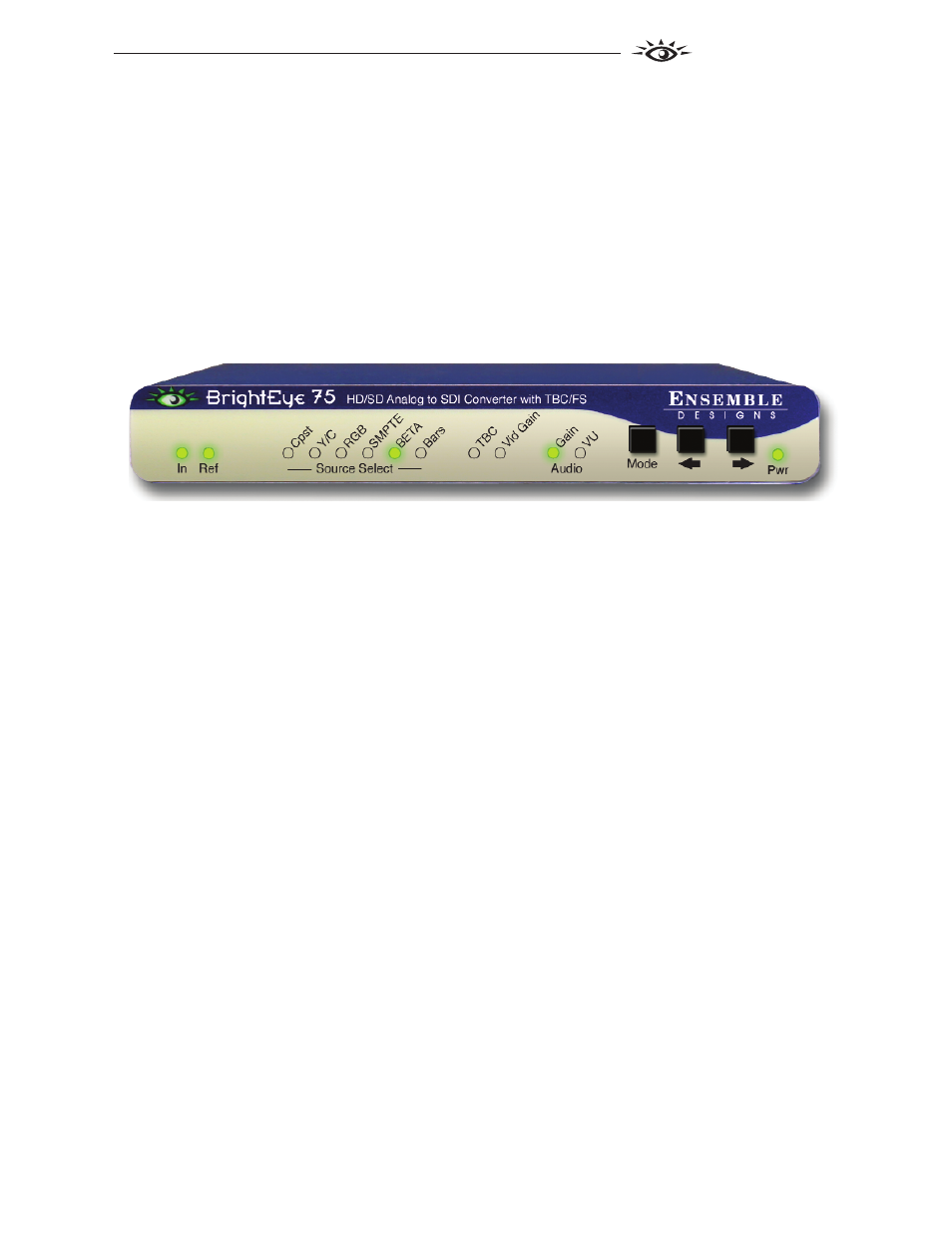

BrightEye 75 Front Panel
NOTE :
