Model 7900 HD Up/Down/Cross Converter

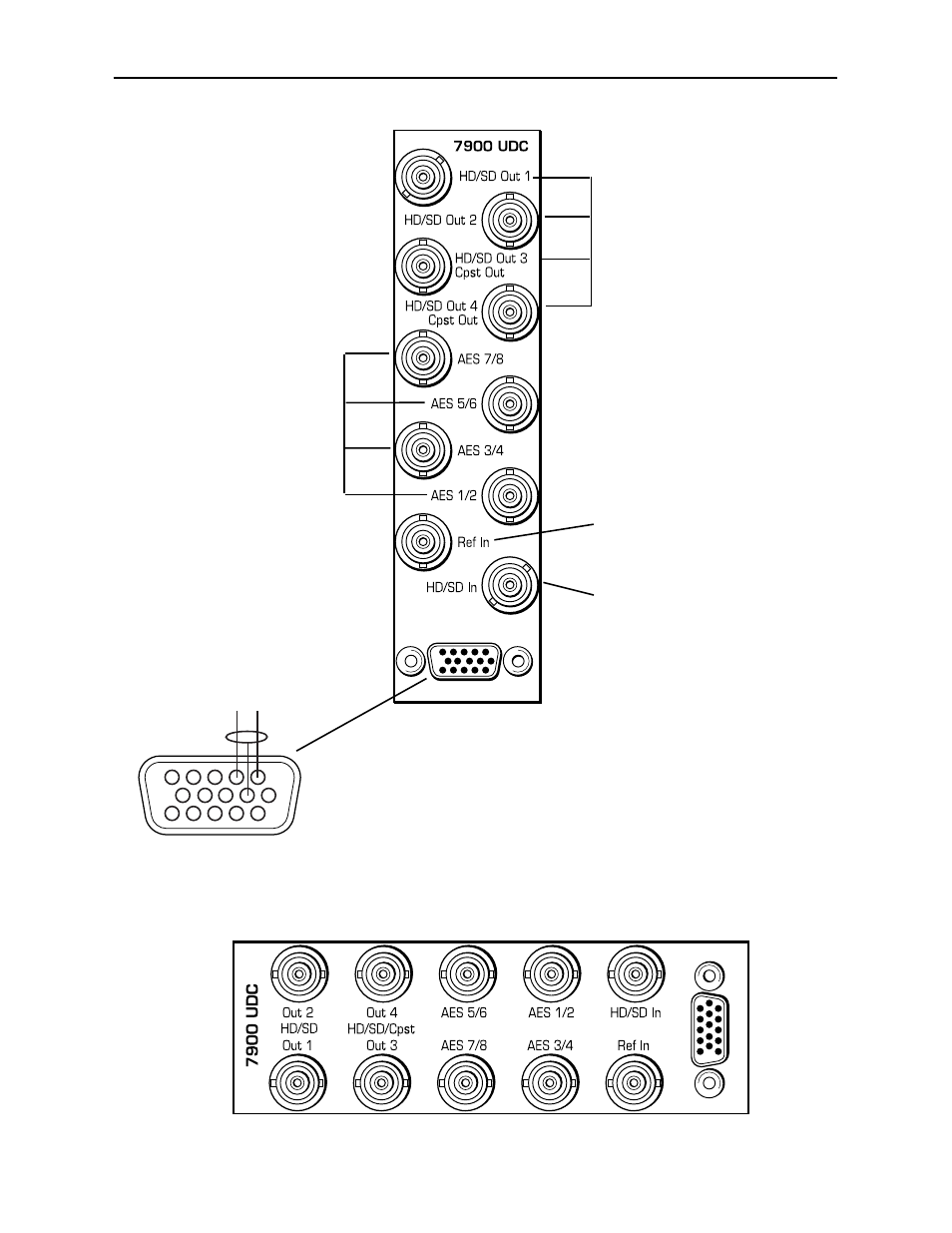

Connect an HD or SD
serial digital signal to the
HD/SD In BNC.
Connect HD or SD output
destinations to BNCs HD/SD Out 1
and HD/SD Out 2.
BNCs HD/SD Out 3 Cpst Out
and HD/SD Out 4 Cpst Out can
also be configured as either
serial or composite when the
module is outputting an SD
signal. Switches S3 and S4 on
the rear of the circuit board must
be set as CPST or SER.
3RU Backplane
1RU Backplane
7900-9
Connect AES audio input
signals to BNCs AES 1/2,
AES 3/4, AES 5/6, and
AES 7/8.
Connect an external ref-
erence signal to the Ref
In BNC.
Connect LTC (Longitudinal Time
Code) input if required to the 15-pin
connector as shown below.
1
6
+ -
11
LTC Input
