Ensemble Designs 7900 HD Up/Down/Cross Converter User Manual
Page 31

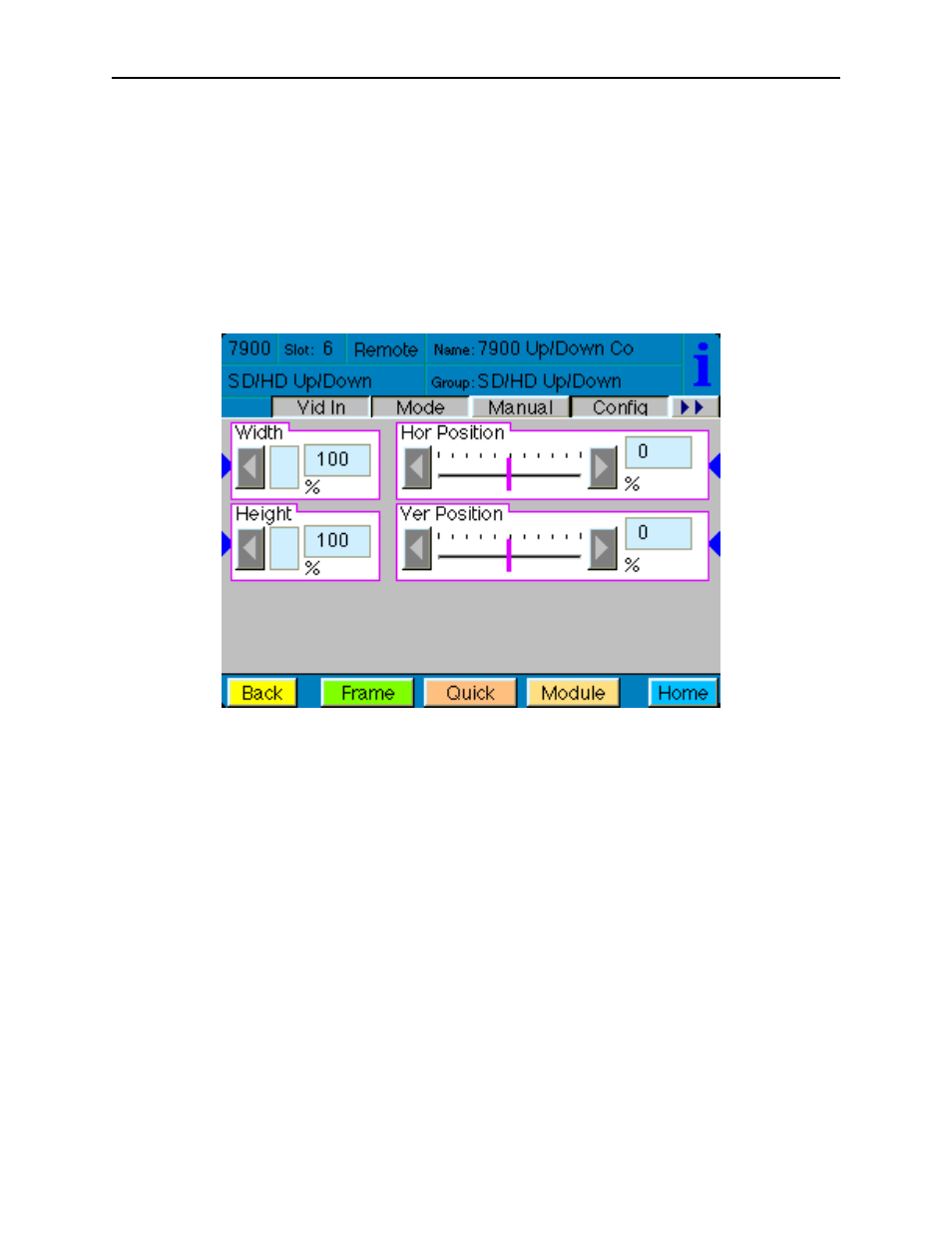

When Manual is selected in the Mode menu, you may set the output format mode of the
upconverted HD output with the following controls:
Manual
• Width – sets the aspect ratio width.
•
Height – sets the aspect ratio height.
•
Hor Position – sets the horizontal position of the output.
•
Ver Position – sets the vertical position of the output.
Use the Default button in each control to return to the default value.
Model 7900 HD Up/Down/Cross Converter
7900-31
